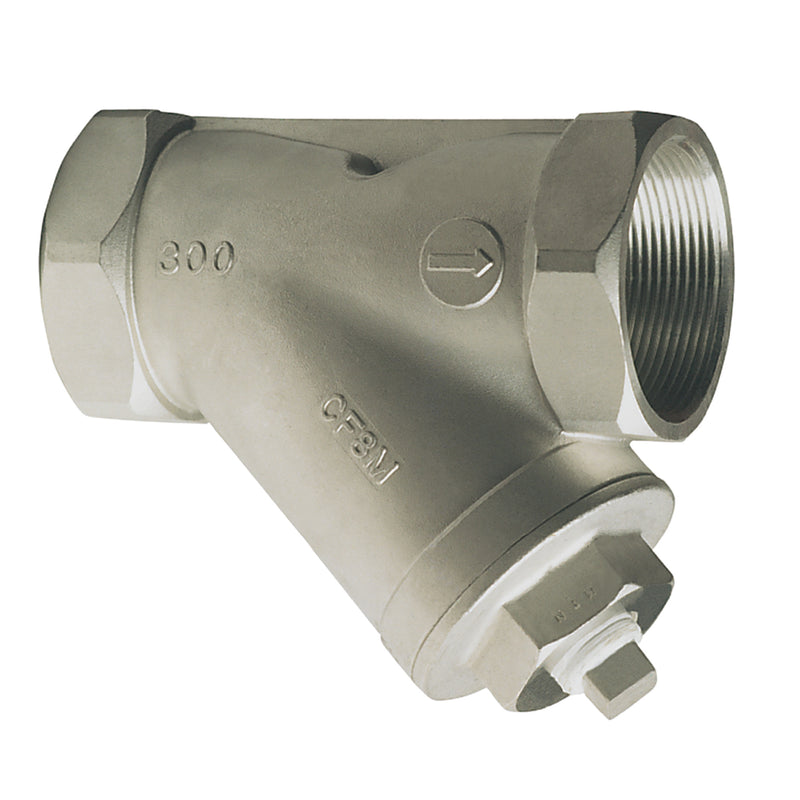

The Watts 3/4 87SI-T-80 is a 3/4" wye-pattern strainer with NPT connections that removes pipeline debris and particulates to protect downstream equipment. It ships with a 80 mesh stainless steel screen. It features a stainless body and a ptfe seat. Rated to 720 psi.
This 3/4 inch stainless steel wye pattern strainer, has a stainless steel body and 80 mesh SS screen, a stainless steel retainer cap with PTFE gasket and blow-down plug. The strainer has a machined seat that allows the screen to be self-aligning to assure a perfect fit. It has thread connections.
Features
- Wye pattern
- Stainless steel body
- Threaded connections
- 80 mesh SS screen
- Includes: Strainer
Common Questions
- What mesh or screen size does it come with?
- 3/4 87SI-T-80 ships with a 80 mesh stainless steel screen (80 openings per linear inch). The screen is called out by the number in the model code.
- Can I get a finer or coarser screen?
- Yes. Watts builds this body with a range of screens and encodes the choice in the model number, so a finer or coarser screen is a different part number rather than an accessory. This one is 80 mesh. Finer screens catch smaller particles but clog faster and cost more pressure drop, so size the screen to the debris you actually have.
- Does it have a blowoff / blowdown port?
- Yes. The retainer cap/cover is tapped for a blowoff connection, so you can flush accumulated debris by pulling the plug or piping a blowdown valve to it -- no need to break the strainer apart. The closure plug is included.
- What is the "seat material" on a strainer?
- A strainer has no seat -- nothing closes against anything. The PTFE called out here is the retainer-cap seal (the gasket between the cap and the body), which is what limits the temperature and chemical compatibility of the closure.
Specifications
-
Type: Strainer
-
Size: 3/4"
-
Connection: NPT
-
Body Material: Stainless
-
Cap Seal / Gasket Material: PTFE
-
Max Pressure (WOG, psi): 720
-
Country of Origin: Taiwan
-
Warranty: 1 Year Limited
-
MPN: 3/4 87SI-T-80
-
Lead-Free: No
-
Strainer Pattern: Wye
-
Screen Type: Mesh
-
Screen Mesh: 80
-
Blowoff / Drain Tapping: Yes
-
Blowoff Plug Included: Yes
-
Body Coating: None
-
Alternate Screens Available: Yes
