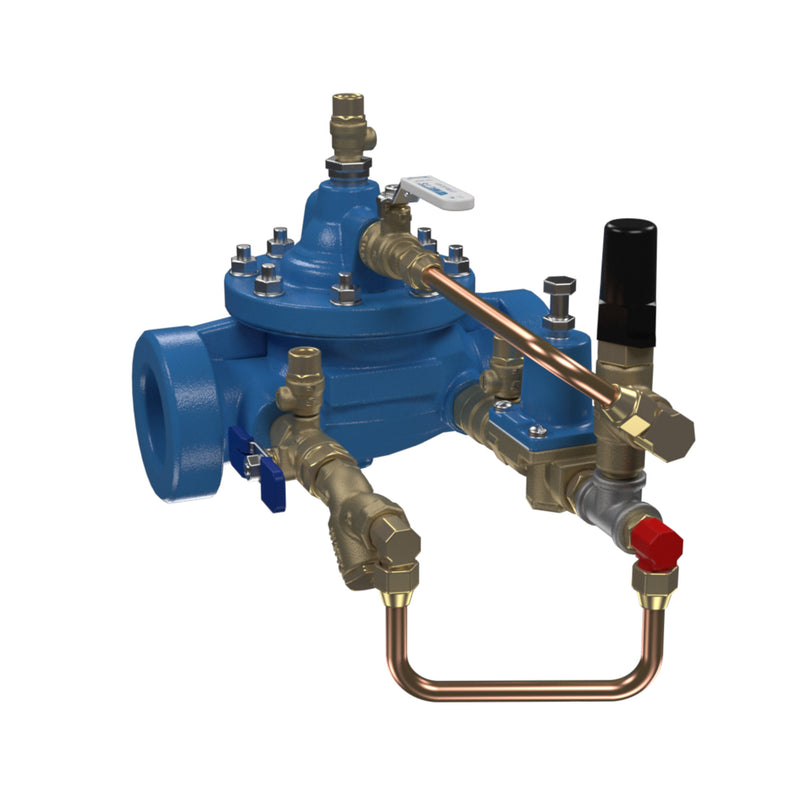

Watts LFF115 THD B 2-30 PI 2 Lead-Free Pressure Reducing Valve, Ductile Iron, NPT

SKU: 2GE00103
Price:
Sale price$5,572.29 Regular price$6,501.00
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $5,572.29

Free shipping over $200

Key Features

Control Function Pressure Reducing
Valve Platform Classic (F-Series)
Body Pattern Globe
Spec Sheet Download
See all product information

Similar products

Watts LLL100XL-2M7-150210 3/4
Watts RK N45B-EZ-N55BM1
Watts Watts RK N45B-EZ-N55BM1 Pressure Reducing Valve
Sale price$52.74 Regular price$75.75
Compare Products

Specifications

Description

The Watts LFF115 THD B 2-30 PI 2 is a 2" lead-free globe-pattern pilot-operated pressure reducing control valve with NPT connections, with a pilot adjustable from 2 to 30 psi. It features a ductile iron body and a buna-n seat. Rated to 300 psi and up to 160°F. This model is certified lead-free for potable-water installations.

This 2 inch ACV is armed with ArmorTek®, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion. This pressure reducing control valve is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. The quick closing action of the valve limits possible damaging high inlet pressure from passing through the valve to downstream piping. This Classic valve style has a globe body pattern with threaded end connections, configured with inlet and outlet gauge ports, Buna elastomers, and position indicator. SentryPlus Alert® technology provides intelligent pressure monitoring and notifications using integrated sensors, and integrates with the Sensor Control Monitor to deliver maintenance alerts through BAS via RS-485 Modbus or the Nexa® platform over Wi-Fi.

Features

  • Body construction with patented 3-part ArmorTek epoxy coating for advanced corrosion resistance
  • Globe body pattern with threaded end connections
  • Range 2-30 psi (standard)
  • Integrates with the Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa platform by Wi-Fi connectivity
  • Inlet/outlet gauge ports, gauge not included
  • Includes position indicator

Common Questions

What pressure setpoint can this valve be adjusted to?
The pilot on this valve is spring-ranged for 2–30 psi, so your target setpoint must fall inside that band. Watts builds the 115/116 platform with several pilot springs (2-30, 10-75, 20-175, 20-200 and 30-300 psi); ordering a setpoint outside 2–30 psi means a different pilot, not a field adjustment.
What is the maximum working pressure?
This unit is built as THD (NPT Threaded) and is rated to 300 psi. Threaded and grooved bodies on this platform carry a higher working pressure than 150# flanged bodies, so do not assume a flanged datasheet applies here.
What fluid temperature can the Buna-N trim handle?
This valve is built with Buna-N elastomers, good to about 160°F. Watts offers the same body with Buna-N (to 160°F), FKM/Viton (to 250°F) or EPDM (to 300°F) — pick the elastomer for your fluid temperature, not the body.
Is this valve certified lead-free for potable water?
Yes. The "LF" prefix denotes Watts lead-free construction, compliant with the weighted-average 0.25% lead requirement of the Safe Drinking Water Act (NSF/ANSI 372) for potable-water service.

Specifications

  • Type: Pressure Regulator
  • Size: 2"
  • Inlet Size: 2"
  • Outlet Size: 2"
  • Connection: NPT
  • Body Material: Ductile Iron
  • Seat / Seal Material: Buna-N
  • Max Pressure (psi): 300
  • Operation: Pilot-Operated Diaphragm
  • Port Style: Full
  • Country of Origin: United States
  • Warranty: 1 Year Limited
  • MPN: LFF115 THD B 2-30 PI 2
  • Temperature: up to 160°F
  • Lead-Free: Yes
  • Item Type: Valve
  • Control Function: Pressure Reducing
  • Valve Platform: Classic (F-Series)
  • Body Pattern: Globe
  • Pilot Adjustment Range (psi): 2-30
  • End Connection / Pressure Class: THD (NPT Threaded)
  • Configured Options: Position Indicator;Strainer
  • Coating: ArmorTek 3-Part Epoxy

Product Information

SKUUPCCountry of OriginWarrantySpec SheetInstall Sheet
2GE00103 098268615913 United States 1 Year Limited DownloadDownload

Dimensions

Size Nominal 2" Inlet Size 2"
Outlet Size 2" End Connection NPT

Details

Series LFF115 Device Type Pressure Regulator
Lead Free Yes Body Material Ductile Iron
Seat Material Buna-N Operation Pilot-Operated Diaphragm
Port Style Full Max Pressure PSI 300.0 psi
Max Temp °F 160.0 °F Item Type Valve
Control Function Pressure Reducing Valve Platform Classic (F-Series)
Body Pattern Globe Pilot Range PSI 2-30 PSI
Pressure Class End THD (NPT Threaded) Options Position Indicator, Strainer
Coating ArmorTek 3-Part Epoxy ——

Compare with similar products

Port Style
Full
Full
Full
Full
Full
Full
Item Type
Valve
Valve
Valve
Valve
Valve
Valve
Control Function
Pressure Reducing
Pressure Reducing (Low-Flow Bypass)
Pressure Reducing
Pressure Reducing
Pressure Reducing
Pressure Reducing
Valve Platform
Classic (F-Series)
Mustang (M-Series)
Classic (F-Series)
Mustang (M-Series)
Mustang (M-Series)
Mustang (M-Series)
Body Pattern
Globe
Globe
Globe
Globe
Globe
Globe
Pilot Range PSI
2-30
10-75
2-30
30-300
30-300
2-30
Pressure Class End
THD (NPT Threaded)
300# Flanged
THD (NPT Threaded)
150# Flanged
GRV (Grooved)
GRV (Grooved)
Options
Position Indicator, Strainer
Low-Flow Bypass, Limit Switch, Strainer, Bypass
Test Cocks, Strainer
Position Indicator, Strainer
Position Indicator, Strainer
Test Cocks, Strainer
Coating
ArmorTek 3-Part Epoxy
ArmorTek 3-Part Epoxy
ArmorTek 3-Part Epoxy
ArmorTek 3-Part Epoxy
ArmorTek 3-Part Epoxy
ArmorTek 3-Part Epoxy
UL FM Listed
—
Yes
—
Yes
Yes
Yes
Series
LFF115
LFM115-74
LFF115
LFM115
LFM115
LFM115
Country Of Origin
United States
United States
United States
United States
United States
United States
Warranty
1 Year Limited
1 Year Limited
1 Year Limited
1 Year Limited
1 Year Limited
1 Year Limited
Spec Sheet
Install Sheet
Device Type
Pressure Regulator
Pressure Regulator
Pressure Regulator
Pressure Regulator
Pressure Regulator
Pressure Regulator
Size Nominal
2"
4"
2-1/2"
8"
1-1/4"
6"
Inlet Size
2"
4"
2-1/2"
8"
1-1/4"
6"
Outlet Size
2"
4"
2-1/2"
8"
1-1/4"
6"
Lead Free
Yes
Yes
Yes
Yes
Yes
Yes
End Connection
NPT
Flanged
NPT
Flanged
Grooved
Grooved
Body Material
Ductile Iron
Ductile Iron
Ductile Iron
Ductile Iron
Ductile Iron
Ductile Iron
Seat Material
Buna-N
Buna-N
Buna-N
EPDM
EPDM
EPDM
Operation
Pilot-Operated Diaphragm
Pilot-Operated Diaphragm
Pilot-Operated Diaphragm
Pilot-Operated Diaphragm
Pilot-Operated Diaphragm
Pilot-Operated Diaphragm
Pressure Class
—
Class 300
—
Class 150
—
—
Max Pressure PSI
300.0 psi
600.0 psi
300.0 psi
600.0 psi
600.0 psi
600.0 psi
Max Temp °F
160.0 °F
160.0 °F
160.0 °F
300.0 °F
300.0 °F
300.0 °F
Certifications
—
ASSE-1003, UL, FM
—
UL, FM
UL, FM
UL, FM
