Specifications
Description

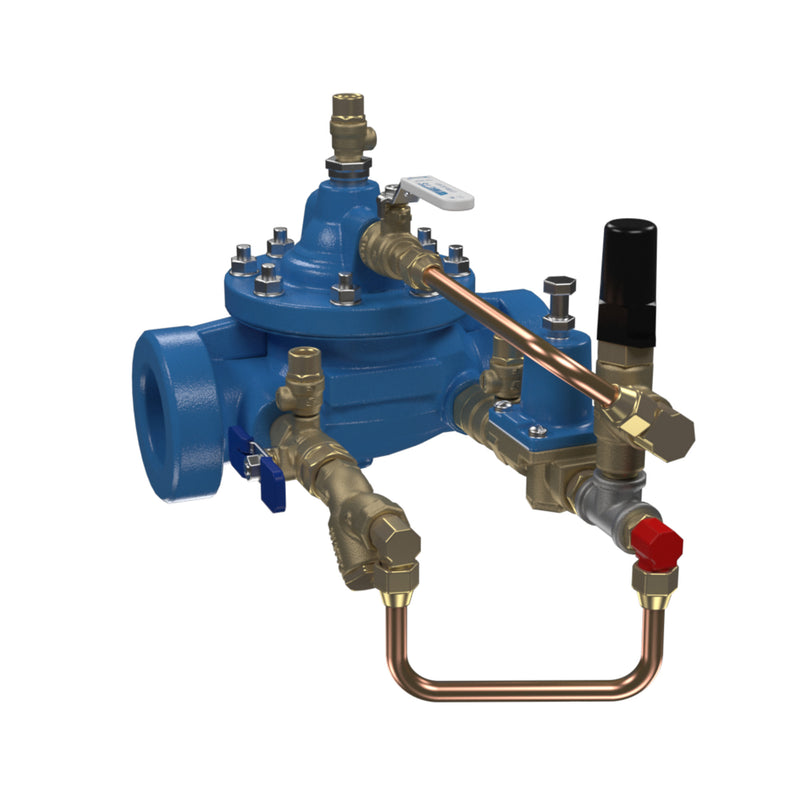

The Watts LFF115 THD B 2-30 PI 1 1/4 is a 1-1/4" lead-free globe-pattern pilot-operated pressure reducing control valve with NPT connections, with a pilot adjustable from 2 to 30 psi. It features a ductile iron body and a buna-n seat. Rated to 300 psi and up to 160°F. This model is certified lead-free for potable-water installations.
This 1 1/4 inch ACV is armed with ArmorTek®, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion. This pressure reducing control valve is designed to automatically reduce a fluctuating higher inlet pressure to a constant lower downstream pressure regardless of varying flow rates. The quick closing action of the valve limits possible damaging high inlet pressure from passing through the valve to downstream piping. This Classic valve style has a globe body pattern with threaded end connections, a pressure range of 2-30psi, configured with inlet and outlet gauge ports, Buna elastomers, and position indicator. SentryPlus Alert® technology provides intelligent pressure monitoring and notifications using integrated sensors, and integrates with the Sensor Control Monitor to deliver maintenance alerts through BAS via RS-485 Modbus or the Nexa® platform over Wi-Fi.
Features
- Body construction with patented 3-part ArmorTek epoxy coating for advanced corrosion resistance
- Globe body pattern with threaded end connections
- Range 2-30 psi (standard)
- Integrates with the Sensor Control Monitor to deliver maintenance alerts to BAS via RS-485 Modbus or the Nexa platform by Wi-Fi connectivity
- Inlet/outlet gauge ports, gauge not included
- Includes position indicator
Common Questions
- What pressure setpoint can this valve be adjusted to?
- The pilot on this valve is spring-ranged for 2–30 psi, so your target setpoint must fall inside that band. Watts builds the 115/116 platform with several pilot springs (2-30, 10-75, 20-175, 20-200 and 30-300 psi); ordering a setpoint outside 2–30 psi means a different pilot, not a field adjustment.
- What is the maximum working pressure?
- This unit is built as THD (NPT Threaded) and is rated to 300 psi. Threaded and grooved bodies on this platform carry a higher working pressure than 150# flanged bodies, so do not assume a flanged datasheet applies here.
- What fluid temperature can the Buna-N trim handle?
- This valve is built with Buna-N elastomers, good to about 160°F. Watts offers the same body with Buna-N (to 160°F), FKM/Viton (to 250°F) or EPDM (to 300°F) — pick the elastomer for your fluid temperature, not the body.
- Is this valve certified lead-free for potable water?
- Yes. The "LF" prefix denotes Watts lead-free construction, compliant with the weighted-average 0.25% lead requirement of the Safe Drinking Water Act (NSF/ANSI 372) for potable-water service.
Specifications
- Type: Pressure Regulator
- Size: 1-1/4"
- Inlet Size: 1-1/4"
- Outlet Size: 1-1/4"
- Connection: NPT
- Body Material: Ductile Iron
- Seat / Seal Material: Buna-N
- Max Pressure (psi): 300
- Operation: Pilot-Operated Diaphragm
- Port Style: Full
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LFF115 THD B 2-30 PI 1 1/4
- Temperature: up to 160°F
- Lead-Free: Yes
- Item Type: Valve
- Control Function: Pressure Reducing
- Valve Platform: Classic (F-Series)
- Body Pattern: Globe
- Pilot Adjustment Range (psi): 2-30
- End Connection / Pressure Class: THD (NPT Threaded)
- Configured Options: Position Indicator;Strainer
- Coating: ArmorTek 3-Part Epoxy
Product Information
Dimensions
| Size Nominal | 1-1/4" | Inlet Size | 1-1/4" |
| Outlet Size | 1-1/4" | End Connection | NPT |
Details
| Series | LFF115 | Device Type | Pressure Regulator |
| Lead Free | Yes | Body Material | Ductile Iron |
| Seat Material | Buna-N | Operation | Pilot-Operated Diaphragm |
| Port Style | Full | Max Pressure PSI | 300.0 psi |
| Max Temp °F | 160.0 °F | Item Type | Valve |
| Control Function | Pressure Reducing | Valve Platform | Classic (F-Series) |
| Body Pattern | Globe | Pilot Range PSI | 2-30 PSI |
| Pressure Class End | THD (NPT Threaded) | Options | Position Indicator, Strainer |
| Coating | ArmorTek 3-Part Epoxy | — | — |
Compare with similar products




| Port Style | Full
| Full
| Full
| Full
| Full
| Full
|
| Item Type | Valve
| Valve
| Valve
| Valve
| Valve
| Valve
|
| Control Function | Pressure Reducing
| Pressure Reducing (Low-Flow Bypass)
| Pressure Reducing
| Pressure Reducing
| Pressure Reducing
| Pressure Reducing
|
| Valve Platform | Classic (F-Series)
| Mustang (M-Series)
| Classic (F-Series)
| Mustang (M-Series)
| Mustang (M-Series)
| Mustang (M-Series)
|
| Body Pattern | Globe
| Globe
| Globe
| Globe
| Globe
| Globe
|
| Pilot Range PSI | 2-30
| 10-75
| 2-30
| 30-300
| 30-300
| 2-30
|
| Pressure Class End | THD (NPT Threaded)
| 300# Flanged
| THD (NPT Threaded)
| 150# Flanged
| GRV (Grooved)
| GRV (Grooved)
|
| Options | Position Indicator, Strainer
| Low-Flow Bypass, Limit Switch, Strainer, Bypass
| Test Cocks, Strainer
| Position Indicator, Strainer
| Position Indicator, Strainer
| Test Cocks, Strainer
|
| Coating | ArmorTek 3-Part Epoxy
| ArmorTek 3-Part Epoxy
| ArmorTek 3-Part Epoxy
| ArmorTek 3-Part Epoxy
| ArmorTek 3-Part Epoxy
| ArmorTek 3-Part Epoxy
|
| UL FM Listed | — | Yes | — | Yes | Yes | Yes |
| Series | LFF115
| LFM115-74
| LFF115
| LFM115
| LFM115
| LFM115
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Pressure Regulator
| Pressure Regulator
| Pressure Regulator
| Pressure Regulator
| Pressure Regulator
| Pressure Regulator
|
| Size Nominal | 1-1/4"
| 4"
| 2-1/2"
| 8"
| 1-1/4"
| 6"
|
| Inlet Size | 1-1/4"
| 4"
| 2-1/2"
| 8"
| 1-1/4"
| 6"
|
| Outlet Size | 1-1/4"
| 4"
| 2-1/2"
| 8"
| 1-1/4"
| 6"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | NPT
| Flanged
| NPT
| Flanged
| Grooved
| Grooved
|
| Body Material | Ductile Iron
| Ductile Iron
| Ductile Iron
| Ductile Iron
| Ductile Iron
| Ductile Iron
|
| Seat Material | Buna-N
| Buna-N
| Buna-N
| EPDM
| EPDM
| EPDM
|
| Operation | Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
| Pilot-Operated Diaphragm
|
| Pressure Class | — | Class 300
| — | Class 150
| — | — |
| Max Pressure PSI | 300.0 psi | 600.0 psi | 300.0 psi | 600.0 psi | 600.0 psi | 600.0 psi |
| Max Temp °F | 160.0 °F | 160.0 °F | 160.0 °F | 300.0 °F | 300.0 °F | 300.0 °F |
| Certifications | — | ASSE-1003, UL, FM
| — | UL, FM
| UL, FM
| UL, FM
|
