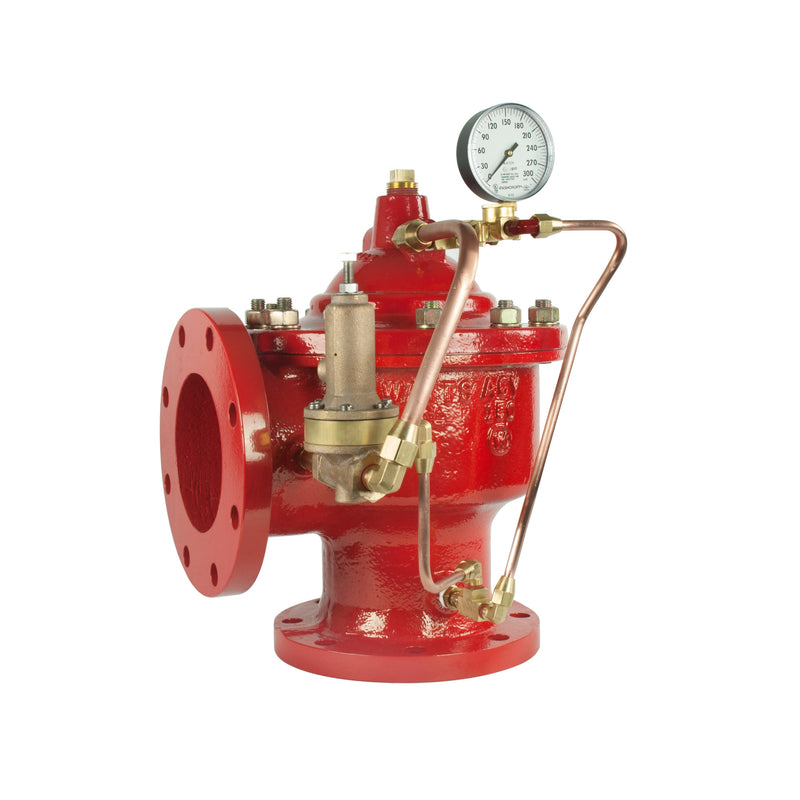

Watts 2-1/2 M1116FM 300 Relief Valve, Ductile Iron, Flanged

The Watts 2-1/2 M1116FM 300 is a 2" angle-pattern pilot-operated pressure relief / sustaining / backpressure control valve with Flanged connections. It features a ductile iron body. Rated to 300 psi.

The 2 1/2 inch M116FM globe and M1116FM angle relief valve meets all requirements for UL listed, FM approved fire protection service. Automatically maintains a constant pressure in the fire protection system by relieving excess pressure. The pressure relief control is normally closed, held closed by an adjustable spring setting to maintain a constant inlet pressure to the main valve.

Features

• Pressure Relief Control Valve
• Class 300 flanged
• 300 psig rated
• Copper tubing/brass fittings

Common Questions

What is the maximum working pressure?

This unit is built as 300# Flanged and is rated to 300 psi. End connection sets the ceiling on this platform, and 150# and 300# bodies are not interchangeable — confirm the class matches your flange drilling before ordering.

Is this valve UL Listed and FM Approved for fire protection?

Yes — this model carries the UL listing and FM approval required for fire-protection service. Non-listed control valves cannot be substituted on a fire job even when the body and pilot are otherwise identical.

Specifications

• Type: Relief
• Size: 2"
• Inlet Size: 2"
• Outlet Size: 2"
• Connection: Flanged
• Body Material: Ductile Iron
• Pressure Class: Class 300
• Max Pressure (psi): 300
• Application: Fire Protection
• Operation: Pilot-Operated Diaphragm
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: 2-1/2 M1116FM 300
• Lead-Free: No
• Item Type: Valve
• Control Function: Pressure Relief / Sustaining / Backpressure
• Valve Platform: Mustang (M-Series)
• Body Pattern: Angle
• End Connection / Pressure Class: 300# Flanged
• Coating: Fusion-Bonded Epoxy
• UL Listed / FM Approved: Yes
