Specifications
Description

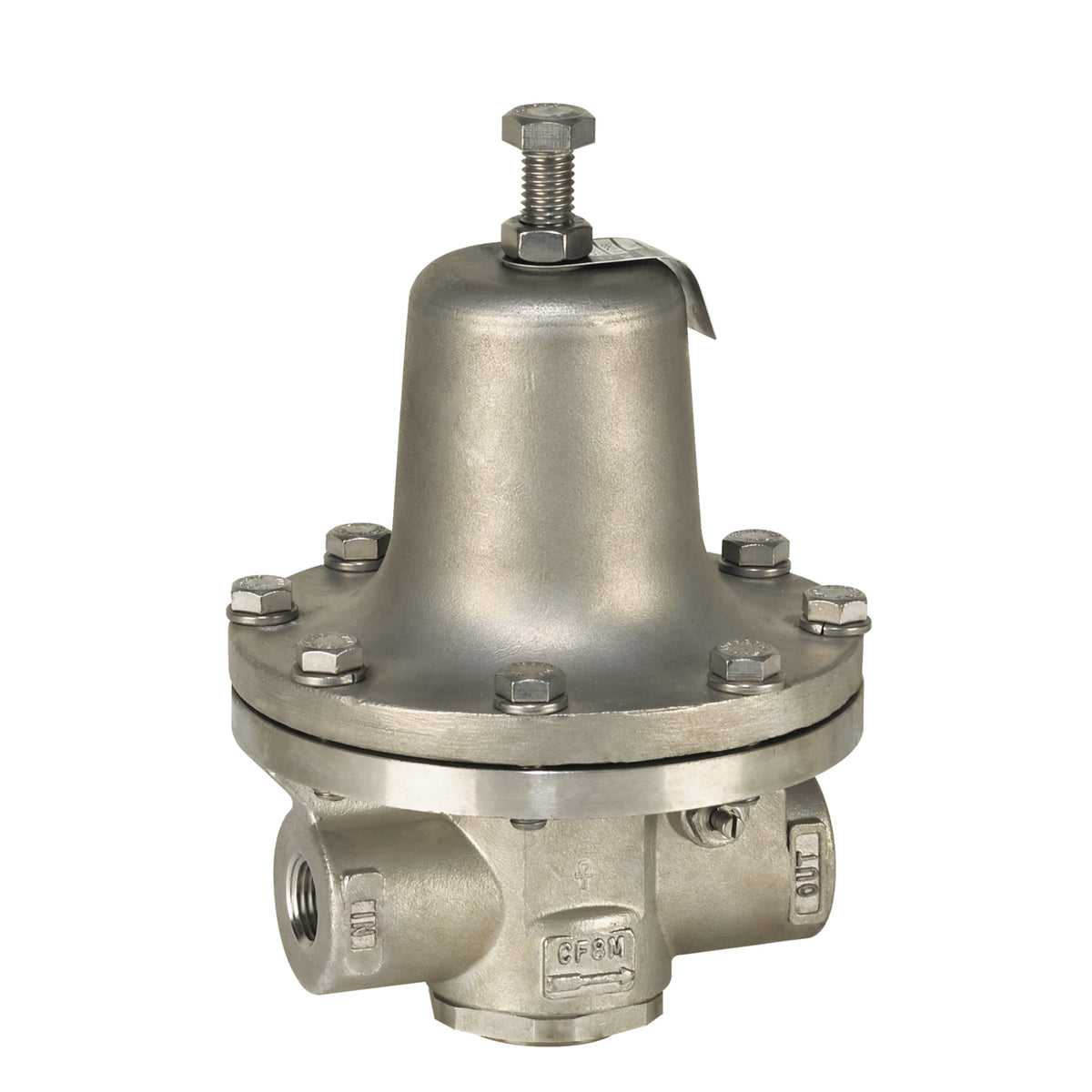

The Watts 152SST-30-140 1/2 is a 1/2" process steam pressure regulator with NPT connections. It reduces inlet pressure of up to 300 psi to an adjustable 30-140 psi downstream. It features a stainless body and a ptfe seat. Rated to 300 psi.
This 1/2 inch stainless steel process steam pressure regulator is designed to offer a highly sensitive response to reduce pressure changes and maintains the fullest possible volume without appreciable reduced pressure drop. Its tight seating is used for dead end and liquid services. This valve consists of a stainless steel body construction with NPT threaded female inlet and outlet connections, stainless steel strainer, stainless steel diaphragm, PTFE disc, and sensitivity adjustment feature for critical flow with a reduced pressure range of 30 to 140 psi.
Features
- Stainless steel body
- Sensitivity adjustment
- Designed for autoclaves, steam tables/irons, vulcanizers and single radiators
- Maintains the fullest possible volume without appreciable reduced pressure drop
- Includes: Strainer
Common Questions
- What pressure is it set to out of the box?
- The adjustable reduced-pressure range of 152SST-30-140 1/2 is 30 to 140 psi. Verify the outlet setting with a gauge after installation and adjust to your target pressure.
- Does it include a strainer?
- Yes - 152SST-30-140 1/2 has an integral stainless steel strainer built into the body, so you do not need a separate inline strainer ahead of it. The strainer is removable for cleaning; if the valve starts to lose downstream pressure, pull and rinse the strainer before assuming the seat has failed.
- Does it come with a gauge?
- No - 152SST-30-140 1/2 has no gauge and no gauge tapping. Set the outlet pressure using a gauge elsewhere on the downstream piping.
Specifications
- Type: Pressure Regulator
- Size: 1/2"
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Connection: NPT
- Body Material: Stainless
- Seat / Seal Material: PTFE
- Max Pressure (psi): 300
- Shutoff: None
- Pack Quantity: 4
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: 152SST-30-140 1/2
- Certifications: ASSE-304
- Lead-Free: No
- Adjustable Range - Min (psi): 30
- Adjustable Range - Max (psi): 140
- Thermal Expansion Bypass: No
- Integral Strainer: Yes
- Gauge: None
- Union Configuration: None
- Regulated Media: Steam
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0842112 | 098268259063 | United States | 1 Year Limited | Download |
Dimensions
| Size Nominal | 1/2" | Inlet Size | 1/2" |
| Outlet Size | 1/2" | End Connection | NPT |
Details
| Series | 152SS | Device Type | Pressure Regulator |
| Body Material | Stainless | Seat Material | PTFE |
| Max Pressure PSI | 300.0 psi | Pack Qty | 4 |
| Options | Strainer | Shutoff | None |
| Adj Range Min PSI | 30.0 psi | Adj Range Max PSI | 140.0 psi |
| Integral Strainer | Yes | Gauge Config | None |
| Union Config | None | Regulated Media | Steam |
Certifications & Standards
| ASSE-304 | — |
Compare with similar products
| Shutoff | None
| None
|
| Gauge Config | None
| None
|
| Union Config | None
| None
|
| Regulated Media | Steam
| Steam
|
| Series | 152SS
| 152A
|
| Country Of Origin | United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||
| Device Type | Pressure Regulator
| Pressure Regulator
|
| Size Nominal | 1/2"
| 3/4"
|
| Inlet Size | 1/2"
| 3/4"
|
| Outlet Size | 1/2"
| 3/4"
|
| Body Material | Stainless
| Cast Iron
|
| Seat Material | PTFE
| PTFE
|
| Max Pressure PSI | 300.0 psi | 300.0 psi |
| Pack Qty | 4
| 4
|
