Specifications
Description

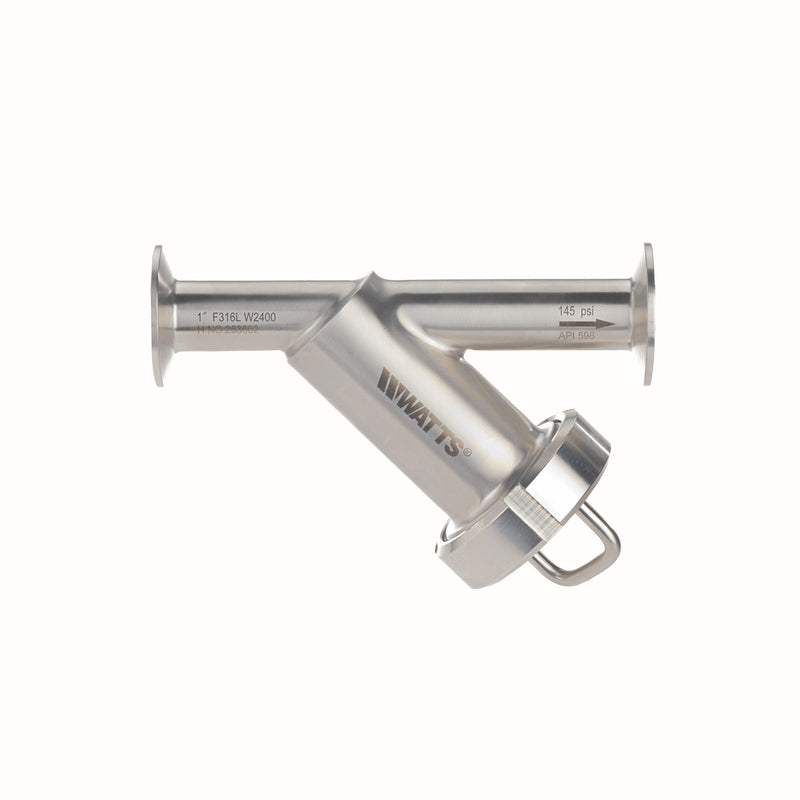

The Watts W2400 100M 2 1/2 is a 2-1/2" sanitary wye-pattern strainer with Tri Clamp connections that removes pipeline debris and particulates to protect downstream equipment. It ships with a 100 mesh 316l stainless steel screen. It features a stainless body and a epdm seat.
This 2 1/2" Watts model W2400 is a strainer with Tri Clamp connections. Constructed from 316L stainless steel with a 100 mesh screen, this strainer removes fine particles while maintaining cleanability in hygienic applications. Ideal for protecting critical process equipment in liquid cooling, food, beverage and other industrial applications.
Features
- 316L stainless steel construction
- 32 Ra internal surface finish to reduce contamination risk
- Tri Clamp connections for quick install and service
- 100 mesh screen for fine particle removal
- Ideal for liquid cooling, CIP/SIP, food and beverage, and other industrial applications
- Includes: Strainer
Common Questions
- What mesh or screen size does it come with?
- W2400 100M 2 1/2 ships with a 100 mesh 316L Stainless Steel screen (100 openings per linear inch). The screen is called out by the number in the model code.
- Can I get a finer or coarser screen?
- Yes. Watts builds this body with a range of screens and encodes the choice in the model number, so a finer or coarser screen is a different part number rather than an accessory. This one is 100 mesh. Finer screens catch smaller particles but clog faster and cost more pressure drop, so size the screen to the debris you actually have.
- What is this strainer intended for?
- W2400 100M 2 1/2 is a sanitary tri-clamp strainer for hygienic process lines -- food, beverage, CIP/SIP and liquid cooling. It is not a steam strainer and not a potable-water building product.
- What is the "seat material" on a strainer?
- A strainer has no seat -- nothing closes against anything. The EPDM called out here is the retainer-cap seal (the gasket between the cap and the body), which is what limits the temperature and chemical compatibility of the closure.
Specifications
- Type: Strainer
- Size: 2-1/2"
- Connection: Tri Clamp
- Body Material: Stainless
- Cap Seal / Gasket Material: EPDM
- Pack Quantity: 3
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: W2400 100M 2 1/2
- Lead-Free: No
- Strainer Pattern: Sanitary Wye
- Screen Type: Mesh
- Screen Mesh: 100
- Screen Material: 316L Stainless Steel
- Body Coating: None
- Alternate Screens Available: Yes
Product Information
Dimensions
| Size Nominal | 2-1/2" | End Connection | Tri Clamp |
Details
| Series | W2000 | Device Type | Strainer |
| Body Material | Stainless | Seat Material | EPDM |
| Pack Qty | 3 | Options | Strainer |
| Pattern | Sanitary Wye | Screen Type | Mesh |
| Mesh Size | 100 | Screen Material | 316L Stainless Steel |
| Body Coating | None | Screen Options Available | Yes |
