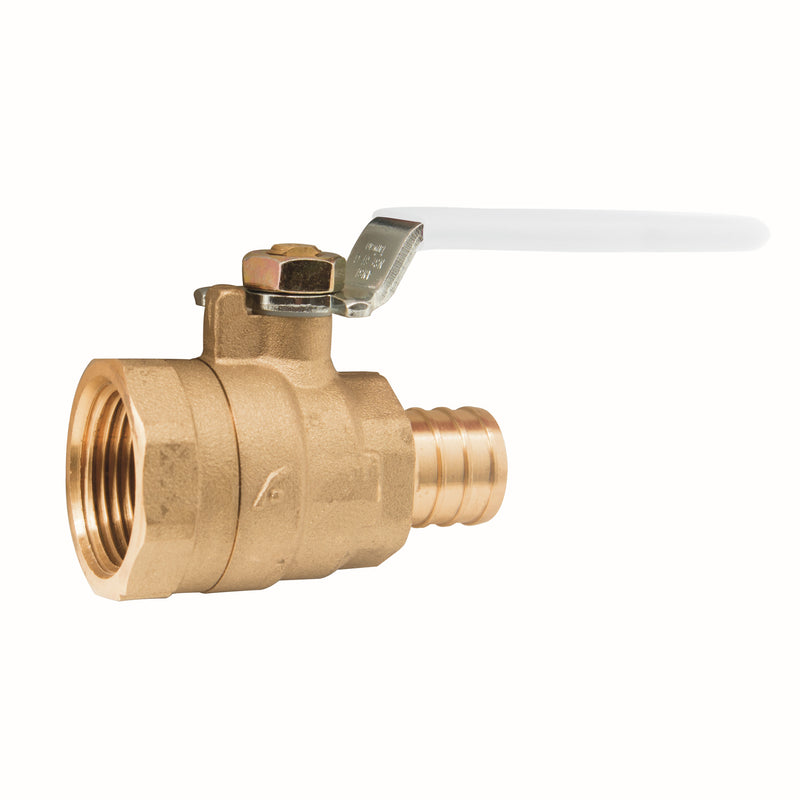

Watts 1 LFWPV Lead-Free Ball Valve, Brass, PEX

The Watts 1 LFWPV is a 1" lead-free 2-piece full port ball valve with PEX connections. It features a brass body and a epdm seat. This model is certified lead-free for potable-water installations.

This 1 inch 2-piece full port lead free ball valve is used in mostly residential applications. The valve features a forged lead free body with a PEX end connection on one side and Female Thread connection on the other. The valve is composed of a chrome plated lead free brass ball, virgin PTFE seats and seals, EPDM O-ring, and zinc plated steel handle with vinyl insulator. A white handle is attached for easy lead free identification.

Features

• Durable forged lead free brass body
• PEX X FIP connections for easy installation
• Chrome plated lead free brass ball
• White handle for lead free identification

Common Questions

Is this full port or standard port?

Full port. The ball bore matches the 1" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.

Can I use this on natural gas or propane?

No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.

Is this rated for potable water?

Yes. It is a lead-free model (weighted lead content at or below 0.25%), so it is legal for potable water. Check the spec sheet if your submittal specifically requires an NSF/ANSI 61 listing.

Can it be serviced without cutting it out?

No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.

Specifications

• Type: Ball
• Size: 1"
• Inlet Size: 1"
• Outlet Size: 1"
• Connection: PEX
• Body Material: Brass
• Seat / Seal Material: EPDM
• Application: Domestic Water
• Port Style: Full
• Ways: 2-Way
• Pack Quantity: 54
• Country of Origin: Taiwan
• Warranty: 1 Year Limited
• MPN: 1 LFWPV
• Lead-Free: Yes
• Valve Construction: 2-Piece
• Ball Material: Chrome-Plated Brass
• Handle Type: Lever
• Actuation: Manual
• Fuel Gas Rated: No
• Integral Drain / Waste Port: No
