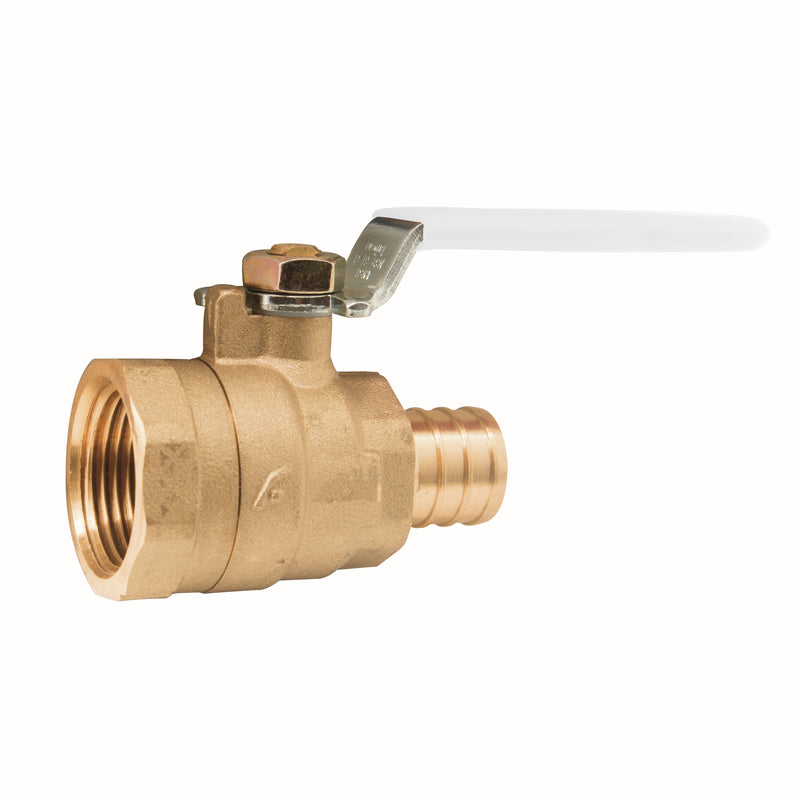

Watts 1/2 LFWPV Lead-Free Ball Valve, Brass, PEX

The Watts 1/2 LFWPV is a 1/2" lead-free 2-piece full port ball valve with PEX connections. It features a brass body and a epdm seat. This model is certified lead-free for potable-water installations.

This 1/2 inch 2-piece full port lead free ball valve is used in mostly residential applications. The valve features a forged lead free body with a PEX end connection on one side and female thread connection on the other. The valve is composed of a chrome plated lead free brass ball, virgin PTFE seats and seals, EPDM O-ring, and zinc plated steel handle with vinyl insulator. A white handle is attached for easy lead free identification.

Features

• Durable forged lead free brass body
• PEX x FIP connections for easy installation
• Chrome plated lead free brass ball
• White handle for lead free identification

Common Questions

Is this full port or standard port?

Full port. The ball bore matches the 1/2" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.

Can I use this on natural gas or propane?

No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.

Is this rated for potable water?

Yes. It is a lead-free model (weighted lead content at or below 0.25%), so it is legal for potable water. Check the spec sheet if your submittal specifically requires an NSF/ANSI 61 listing.

Can it be serviced without cutting it out?

No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.

Specifications

• Type: Ball
• Size: 1/2"
• Inlet Size: 1/2"
• Outlet Size: 1/2"
• Connection: PEX
• Body Material: Brass
• Seat / Seal Material: EPDM
• Application: Domestic Water
• Port Style: Full
• Ways: 2-Way
• Pack Quantity: 120
• Country of Origin: Taiwan
• Warranty: 1 Year Limited
• MPN: 1/2 LFWPV
• Lead-Free: Yes
• Valve Construction: 2-Piece
• Ball Material: Chrome-Plated Brass
• Handle Type: Lever
• Actuation: Manual
• Fuel Gas Rated: No
• Integral Drain / Waste Port: No
