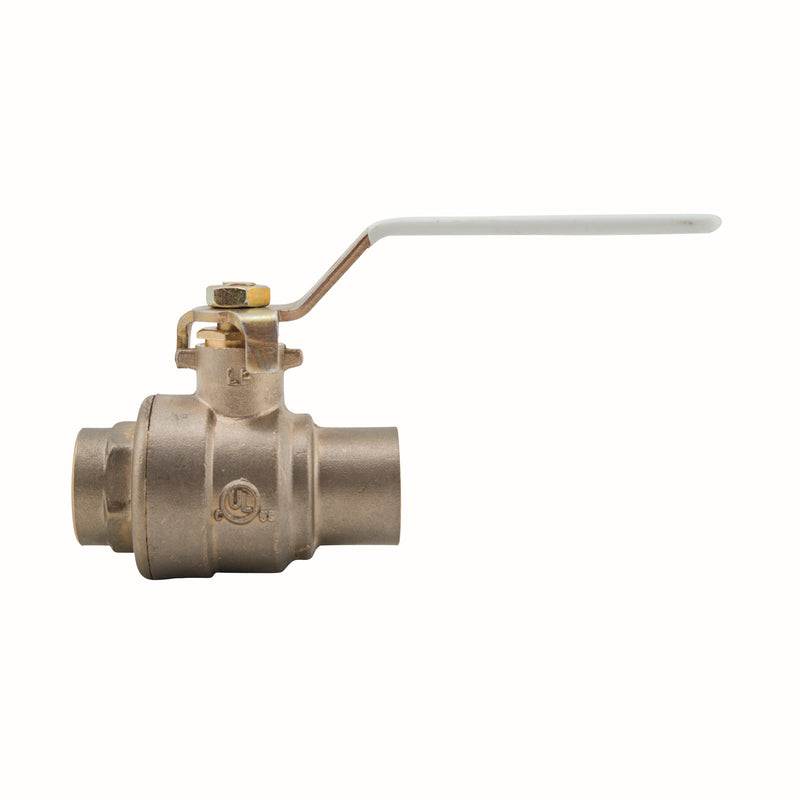

Watts 1-1/4 LFFBVS-3C Lead-Free Ball Valve, Brass, Sweat

The Watts 1-1/4 LFFBVS-3C is a 1-1/4" lead-free 2-piece full port ball valve with Sweat connections. It features a brass body and a ptfe seat. Rated to 600 psi and 0°F to 400°F. This model is certified lead-free for potable-water installations.

This 1 1/4 inch 2-piece full port lead free ball valve is used in residential and commercial potable water applications. It is suitable for a full range of liquids and gases. This valve features a lead free brass body and adapter, with solder end connections, adjustable packing gland, chrome plated lead free brass ball, virgin PTFE seats and seals, a bottom loaded blowout proof stem, and steel handle. The temperature range is 0 to 400 degrees F (-18 to 204 degrees C) and the pressure rating is 600 psi (41 bar) WOG non-shock and 150 psi (10.3 bar) WSP.

Features

• Lead free brass body and adapter
• Machined chrome plated lead free brass ball
• Fluorocarbon elastomer stem O-ring prevents stem leaks
• Certified to NSF standard 61/ANSI 8

Common Questions

Is this full port or standard port?

Full port. The ball bore matches the 1-1/4" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.

Can I use this on natural gas or propane?

No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.

Is this rated for potable water?

Yes. It is a lead-free model certified to NSF/ANSI 61 and NSF/ANSI 372, so it meets the Safe Drinking Water Act limit for potable-water service.

What's the steam rating?

150 psi WSP (saturated steam). Do not size steam service off the 600 psi figure — that is the WOG/CWP rating (cold water, oil, gas, non-shock).

Can it be serviced without cutting it out?

No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.

Specifications

• Type: Ball
• Size: 1-1/4"
• Inlet Size: 1-1/4"
• Outlet Size: 1-1/4"
• Connection: Sweat
• Body Material: Brass
• Seat / Seal Material: PTFE
• Max Pressure (psi): 600
• Application: Domestic Water
• Port Style: Full
• Ways: 2-Way
• Pack Quantity: 18
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: 1-1/4 LFFBVS-3C
• Temperature: 0°F to 400°F
• Certifications: UL, FM, NSF-61
• Lead-Free: Yes
• Valve Construction: 2-Piece
• Ball Material: Chrome-Plated Brass
• Blowout-Proof Stem: Yes
• Handle Type: Lever
• Actuation: Manual
• Max Steam Pressure (WSP): 150
• Fuel Gas Rated: No
• Integral Drain / Waste Port: No
