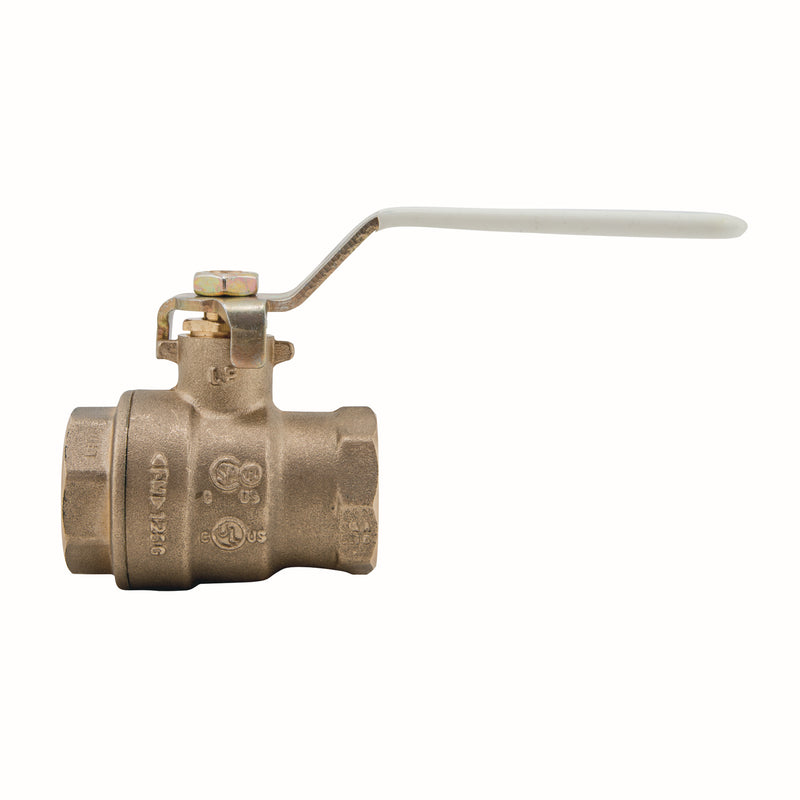

The Watts 1 1/4 LFFBV-3C-M1 is a 1-1/4" lead-free 2-piece full port ball valve with female FNPT connections. It features a brass body and a ptfe seat. Rated to 600 psi and 0°F to 400°F. This model is certified lead-free for potable-water installations.
This 1 1/4 inch two-piece full port ball valve is used in residential and commercial potable water applications, suitable for a full range of liquids and gases. This valve features a lead free brass body and adapter, female threaded end connections, adjustable packing gland, chrome plated lead free brass ball, virgin PTFE seats and seals, a bottom loaded blowout proof stem, and steel handle. The temperature range is 0 to 400 degrees F (-18 to 204 degrees C) and the pressure rating is 600 psi (41 bar) WOG non-shock and 150 psi (10.3 bar) WSP. Certified NSF-61/ANSI 8, UL listed, FM and CSA approved.
Features
- Lead free brass body and adapter
- Machined chrome plated lead free brass ball
- Fluorocarbon elastomer stem O-ring prevents stem leaks
- Certified NSF standard 61/ANSI 8, UL Listed, FM approved, CSA approved
Common Questions
- Is this full port or standard port?
- Full port. The ball bore matches the 1-1/4" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.
- Can I use this on natural gas or propane?
- Yes. This model is CSA certified for fuel gas (ANSI Z21.15 / CSA 9.1) and is intended for natural gas and LP service on indoor piping. Install per local fuel-gas code.
- Is this rated for potable water?
- Yes. It is a lead-free model certified to NSF/ANSI 61 and NSF/ANSI 372, so it meets the Safe Drinking Water Act limit for potable-water service.
- What's the steam rating?
- 150 psi WSP (saturated steam). Do not size steam service off the 600 psi figure — that is the WOG/CWP rating (cold water, oil, gas, non-shock).
- Can it be serviced without cutting it out?
- No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.
Specifications
-
Type: Ball
-
Size: 1-1/4"
-
Inlet Size: 1-1/4"
-
Outlet Size: 1-1/4"
-
Connection: FNPT
-
Connection Gender: Female
-
Body Material: Brass
-
Seat / Seal Material: PTFE
-
Max Pressure (psi): 600
-
Application: Domestic Water
-
Port Style: Full
-
Ways: 2-Way
-
Pack Quantity: 20
-
Country of Origin: Mexico
-
Warranty: 1 Year Limited
-
MPN: 1 1/4 LFFBV-3C-M1
-
Temperature: 0°F to 400°F
-
Certifications: UL, FM, NSF-61, CSA
-
Lead-Free: Yes
-
Valve Construction: 2-Piece
-
Ball Material: Chrome-Plated Brass
-
Blowout-Proof Stem: Yes
-
Handle Type: Lever
-
Actuation: Manual
-
Max Steam Pressure (WSP): 150
-
Fuel Gas Rated: Yes
-
Integral Drain / Waste Port: No
