Watts IDROSET CSD-200 Balancing Valve, Brass and Polyamide, NPT

SKU: 0856705
Price:
Sale price$923.87 Regular price$1,327.00
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $923.87

Free shipping over $200

Key Features

Balancing Type Direct-Reading
Functions Balancing, Flow Measurement, Shutoff
Readout Ports Integral direct-reading GPM dial — no separate meter required
Spec Sheet Download
See all product information

Similar products

Zurn 3/4" - 1" 975XL2, Relief Valve Cover Lead Free 972-3AXL2-010F
Zurn Zurn 972-3AXL2-010F
Sale price$133.56 Regular price$190.00
Watts A2C-LS
Watts LFHK FBV-SS-TH-W 1
Watts Watts LFHK FBV-SS-TH-W 1 Lead-Free Ball Valve
Sale price$18.80 Regular price$27.00
Compare Products

Specifications

Description

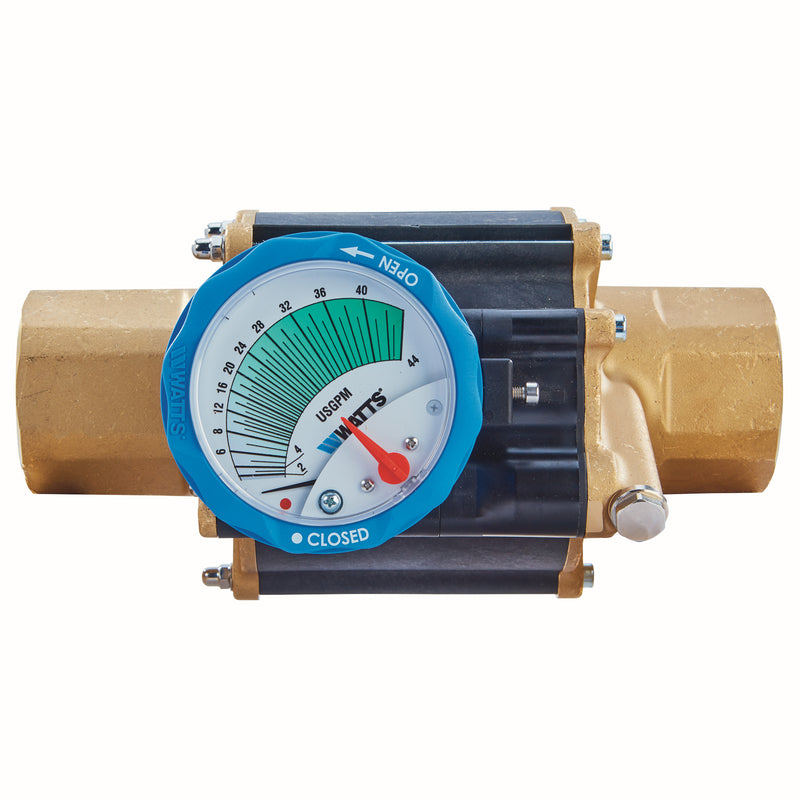

The Watts IDROSET CSD-200 is a 2" direct-reading balancing valve with NPT connections. It features a brass and polyamide body and a epdm seat.

This 2 inch calibrated flow measurement and balancing valve monitors system flow in low to medium flow rate HVAC units, providing highly accurate flow measurement and adjustment. It consists of a brass and polyamide body with F-NPT connections, integral patented technology that allows the reading and setting of flow rate without the need for instrumentation or tools. It is equipped with a GPM gauge to read flow and a hand wheel to set and lock the flow setting. Its ball valve construction allows full shut-off capability and is ideal in hot/chilled water units such as fan coil units, water source heat pumps, reheat coils, panel coils, small branch lines, unit heaters, unit ventilators, finned radiation and convectors.

Features

  • Integral flow measurement technology
  • GPM gauge for reading flow
  • Hand wheel for setting flow
  • Positive shutoff

Common Questions

Do I need a separate meter to read the flow?
No. The IDROSET CSD-200 reads flow directly. It has an integral GPM dial, factory-calibrated to +/-10%, so you turn the handwheel until the dial shows the design flow and lock it there. No differential-pressure meter, no hoses, no flow-chart lookup, and no second trip to the mechanical room. It holds that accuracy across a 25:1 turndown.
Can it also shut off the circuit?
Yes. The IDROSET CSD-200 gives positive, drip-tight shutoff, so it doubles as the service valve for the circuit and you do not have to buy and install a separate ball valve next to it. The memory stop preserves your balanced setting: close the valve for service, reopen it against the stop, and the circuit returns to the same flow without rebalancing.
Can I use it on a domestic hot water recirculation line?
No. The IDROSET CSD-200 is not a lead-free model, so it is restricted to closed hydronic heating and chilled-water loops and other non-potable service. For DHW recirculation balancing, choose the lead-free equivalent — the Watts LFCSM-61-S (PT-port) or LFiDROSET CSD (direct-reading).

Specifications

  • Type: Balancing
  • Size: 2"
  • Inlet Size: 2"
  • Outlet Size: 2"
  • Connection: NPT
  • Body Material: Brass and Polyamide
  • Seat / Seal Material: EPDM
  • Application: Hydronic Heating/Cooling
  • Country of Origin: Italy
  • Warranty: 1 Year Limited
  • MPN: IDROSET CSD-200
  • Lead-Free: No
  • Balancing Type: Direct-Reading
  • Valve Functions: Balancing;Flow Measurement;Shutoff
  • Flow Readout: Integral direct-reading GPM dial — no separate meter required
  • Memory Stop: Yes
  • Positive Shutoff: Yes
  • Flow Accuracy (+/- %): 10
  • Turndown Ratio: 25:1

Product Information

SKUUPCCountry of OriginWarrantySpec SheetInstall Sheet
0856705 098268283167 Italy 1 Year Limited DownloadDownload

Dimensions

Size Nominal 2" Inlet Size 2"
Outlet Size 2" End Connection NPT

Details

Series iDROSET CSD Device Type Balancing
Body Material Brass and Polyamide Seat Material EPDM
Application Hydronic Heating/Cooling Balancing Type Direct-Reading
Functions Balancing, Flow Measurement, Shutoff Readout Ports Integral direct-reading GPM dial — no separate meter required
Memory Stop Yes Positive Shutoff Yes
Accuracy % 10.0 Turndown Ratio 25:1
