Specifications
Description

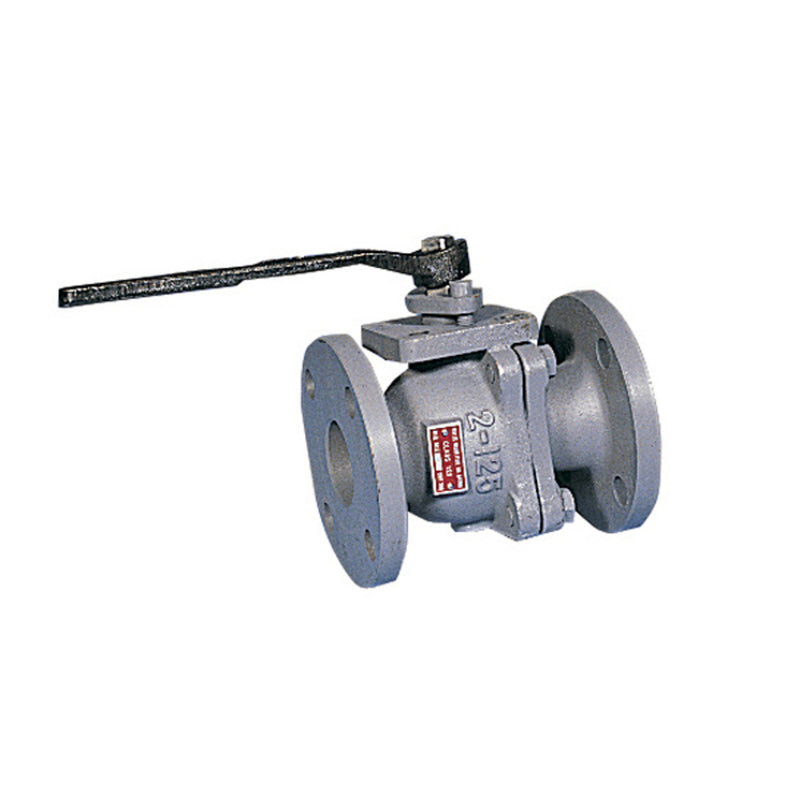

The Watts G4000-FDA 8 is a 2-piece full port ball valve with Flanged connections. It features a cast iron body and a ptfe seat. Rated to 200 psi and up to 140°F.
This 2-Piece full port cast iron FDA approved flanged ball valve, 8" Watts model G4000-FDA, is used in commercial, industrial, and process applications requiring a non-corrosive body finish or where a clean cosmetic appearance is desired. Since it is FDA approved it is ideal for potable water and food contact applications.
Features
- Cast iron
- Flanged
- FDA approved
- Manual gear operator
Common Questions
- Is this full port or standard port?
- Full port. The ball bore matches the line-size pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.
- Can I use this on natural gas or propane?
- No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
- Can it be serviced without cutting it out?
- No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.
Specifications
- Type: Ball
- Connection: Flanged
- Body Material: Cast Iron
- Seat / Seal Material: PTFE
- Max Pressure (psi): 200
- Application: Domestic Water
- Port Style: Full
- Ways: 2-Way
- Country of Origin: Taiwan
- Warranty: 1 Year Limited
- MPN: G4000-FDA 8
- Temperature: up to 140°F
- Certifications: FDA
- Lead-Free: No
- Valve Construction: 2-Piece
- Actuation: Manual
- Fuel Gas Rated: No
- Integral Drain / Waste Port: No
Product Information
Dimensions
| End Connection | Flanged | — | — |
Details
| Series | G4000-FDA | Device Type | Ball |
| Body Material | Cast Iron | Seat Material | PTFE |
| Application | Domestic Water | Port Style | Full |
| Max Pressure PSI | 200.0 psi | Max Temp °F | 140.0 °F |
| Valve Ways | 2-Way | Body Construction | 2-Piece |
| Actuation | Manual | — | — |
Certifications & Standards
| FDA | — |
