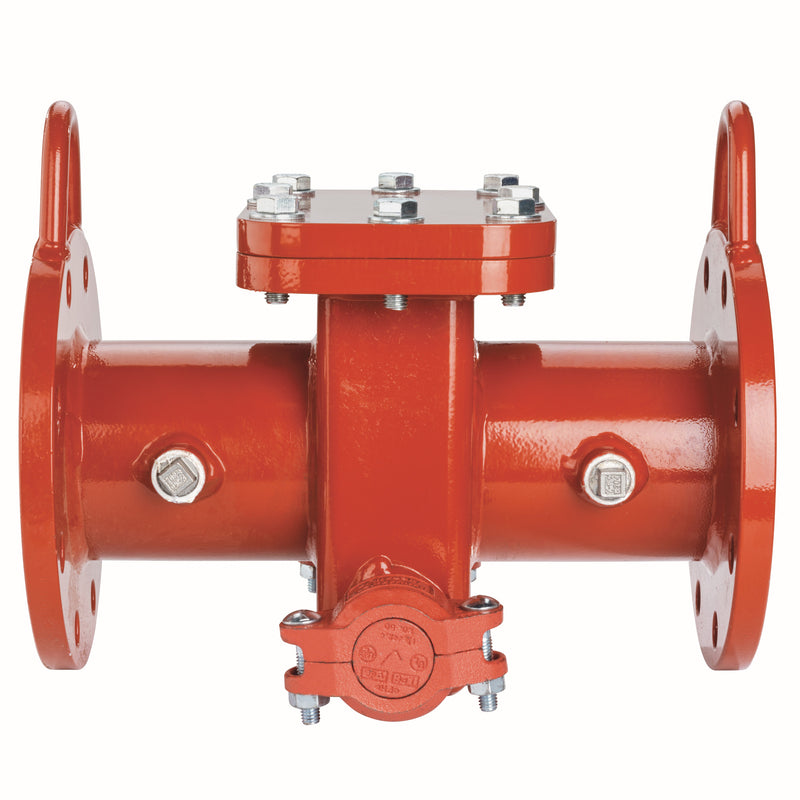

Watts 843H 8 Strainer, Flanged

SKU: 0690102
Price:
Sale price$2,809.71 Regular price$3,278.00
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $2,809.71

Freight delivery: flat $300 per order, due to this item’s size or weight.

Key Features

Screen Type Mesh
Mesh Size 10
Pattern Plate
Spec Sheet Download
See all product information

Similar products

Watts LLL100XL-2M7-150210 3/4
Watts RK N45B-EZ-N55BM1
Watts Watts RK N45B-EZ-N55BM1 Pressure Reducing Valve
Sale price$52.74 Regular price$75.75
Compare Products

Specifications

Description

The Watts 843H 8 is a 8" plate-pattern strainer with Flanged connections that removes pipeline debris and particulates to protect downstream equipment. It ships with a 10 mesh stainless steel screen. It features a buna-n seat.

This 8 inch 150# flanged fabricated carbon steel plate strainer is used to filter undesirable particulate from pipelines, thereby protecting other equipment downstream. The 843H plate strainer is ideal for preventing debris and particle build up in Watts Automatic Control Valves. This strainer comes with a stainless steel 10 mesh screen. Plate style strainers promote ease of maintenance, requiring only cover removal for servicing. The 843H plate strainer is armed with ArmorTek®, a patented 3-part advanced epoxy coating system designed to limit both microbial induced (MIC) and exposed metal substrate corrosion.

Features

  • Designed for low pressure drop applications
  • Grooved clean out ports located on both sides for ease of maintenance
  • Body construction with patented 3-part ArmorTek epoxy coating for advanced corrosion resistance
  • Optional accessories include manual differential pressure gauge, or ACV Assure pressure monitoring system
  • Includes: Strainer

Common Questions

What mesh or screen size does it come with?
843H 8 ships with a 10 mesh stainless steel screen (10 openings per linear inch). That is the standard screen Watts supplies for this body at this pipe size -- the screen size is not called out in the model number, so it varies by size across the series.
What is the "seat material" on a strainer?
A strainer has no seat -- nothing closes against anything. The Buna-N called out here is the retainer-cap seal (the gasket between the cap and the body), which is what limits the temperature and chemical compatibility of the closure.

Specifications

  • Type: Strainer
  • Size: 8"
  • Connection: Flanged
  • Cap Seal / Gasket Material: Buna-N
  • Pressure Class: Class 150
  • Country of Origin: United States
  • Warranty: 1 Year Limited
  • MPN: 843H 8
  • Lead-Free: No
  • Strainer Pattern: Plate
  • Screen Type: Mesh
  • Screen Mesh: 10
  • Body Coating: Epoxy

Product Information

SKUUPCCountry of OriginWarrantySpec SheetInstall Sheet
0690102 098268599589 United States 1 Year Limited DownloadDownload

Dimensions

Size Nominal 8" End Connection Flanged
Pressure Class Class 150 ——

Details

Series 843H Device Type Strainer
Seat Material Buna-N Options Strainer
Pattern Plate Screen Type Mesh
Mesh Size 10 Body Coating Epoxy
