Specifications
Description

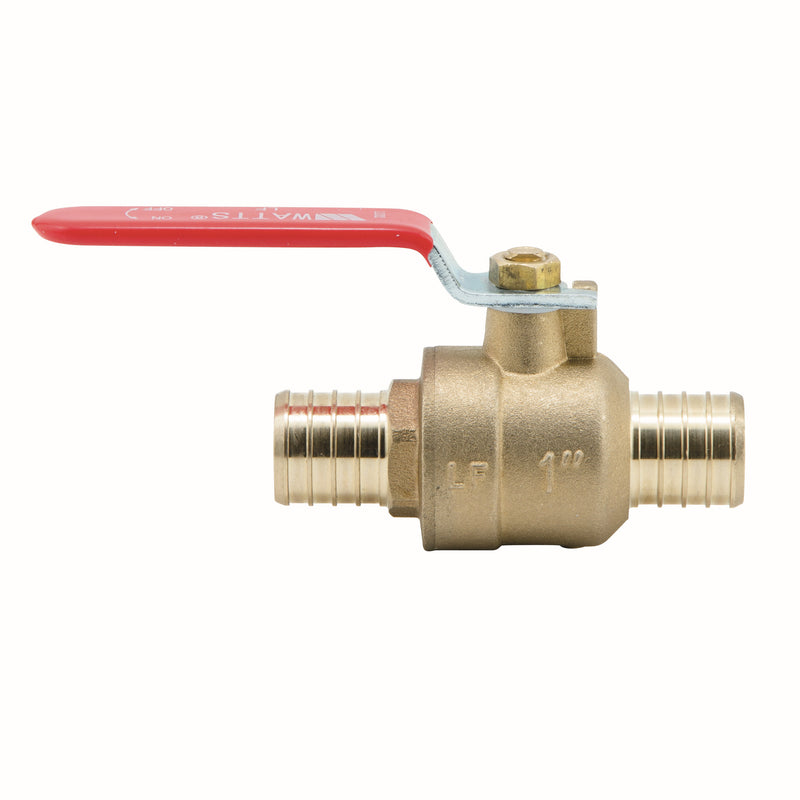

The Watts LFWPBV-16 is a 1" lead-free 2-piece full port ball valve with PEX connections. It features a brass body and a fkm (viton) seat. Rated to 160 psi. This model is certified lead-free for potable-water installations.
This 2-piece, full port ball valve is designed for use with WaterPEx ® tubing. It features a forged lead free brass body, 1" crimp end connections, chrome plated brass ball, stem packing, virgin PTFE seats, and Viton ® stem O-ring. The ball valve rating is 400 WOG and the crimp connection is rated to 160 psi at 73 degrees F (11 bar at 23 degrees C).
Features
- Durable forged lead free brass body
- Quick and easy installation
- Designed specially for PEX piping systems
- Crimp end designed to ASTM-F-1807
Common Questions
- Is this full port or standard port?
- Full port. The ball bore matches the 1" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.
- Can I use this on natural gas or propane?
- No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
- Is this rated for potable water?
- Yes. It is a lead-free model (weighted lead content at or below 0.25%), so it is legal for potable water. Check the spec sheet if your submittal specifically requires an NSF/ANSI 61 listing.
- Can it be serviced without cutting it out?
- No. A 2-piece body is not designed for in-line rebuild; it is replaced as a unit. Choose a three-piece valve (LFB6800 / S-6800 series) where in-line serviceability matters.
Specifications
- Type: Ball
- Size: 1"
- Inlet Size: 1"
- Outlet Size: 1"
- Connection: PEX
- Body Material: Brass
- Seat / Seal Material: FKM (Viton)
- Max Pressure (psi): 160
- Application: Domestic Water
- Port Style: Full
- Ways: 2-Way
- Pack Quantity: 24
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: LFWPBV-16
- Lead-Free: Yes
- Valve Construction: 2-Piece
- Ball Material: Chrome-Plated Brass
- Handle Type: Lever
- Actuation: Manual
- Fuel Gas Rated: No
- Integral Drain / Waste Port: No
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0653002 | 098268441147 | China | 1 Year Limited | Download |
Dimensions
| Size Nominal | 1" | Inlet Size | 1" |
| Outlet Size | 1" | End Connection | PEX |
Details
| Series | LFWPBV | Device Type | Ball |
| Lead Free | Yes | Body Material | Brass |
| Seat Material | FKM (Viton) | Application | Domestic Water |
| Port Style | Full | Max Pressure PSI | 160.0 psi |
| Pack Qty | 24 | Valve Ways | 2-Way |
| Body Construction | 2-Piece | Ball Material | Chrome-Plated Brass |
| Handle Type | Lever | Actuation | Manual |
Compare with similar products
| Port Style | Full
| Full
| Full
| Full
| Full
| — |
| Valve Ways | 2-Way
| 2-Way
| 2-Way
| 2-Way
| 2-Way
| 2-Way
|
| Body Construction | 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
|
| Ball Material | Chrome-Plated Brass
| Stainless Steel
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
|
| Blowout Proof Stem | — | Yes | Yes | Yes | Yes | Yes |
| Handle Type | Lever
| Lever
| Lever
| Lever
| Lever
| Lever
|
| Actuation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| WSP PSI | — | 150.0 psi | 150.0 psi | — | — | — |
| Series | LFWPBV
| LFB6090-SS
| LFFBV-3C
| LFFBV-PEX-F1960
| LFFBV-PEX-F1960
| LFFBV-PEX-F1960
|
| Country Of Origin | China
| China
| China
| China
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Install Sheet | — | — | — | |||
| Device Type | Ball
| Ball
| Ball
| Ball
| Ball
| Ball
|
| Size Nominal | 1"
| 3/4"
| 2"
| 1-1/4"
| 1-1/2"
| 1"
|
| Inlet Size | 1"
| 3/4"
| 2"
| 1-1/4"
| 1-1/2"
| 1"
|
| Outlet Size | 1"
| 3/4"
| 2"
| 1-1/4"
| 1-1/2"
| 1"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | PEX
| Sweat
| Sweat
| PEX
| PEX
| PEX
|
| Body Material | Brass
| Bronze
| Brass
| Brass
| Brass
| Brass
|
| Seat Material | FKM (Viton)
| PTFE
| PTFE
| EPDM
| EPDM
| EPDM
|
| Application | Domestic Water
| — | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Pressure PSI | 160.0 psi | 600.0 psi | 600.0 psi | 160.0 psi | 160.0 psi | 160.0 psi |
| Max Temp °F | — | 400.0 °F | 400.0 °F | — | — | — |
| Certifications | — | NSF-61, NSF-372
| UL, FM, NSF-61
| NSF-61, NSF-372
| NSF-61, NSF-372
| NSF-61, NSF-372
|
| Pack Qty | 24
| 48
| 6
| 16
| 16
| 24
|
| Min Temp °F | — | 0.0 °F | 0.0 °F | — | — | — |
