Watts LF4721-10 1/2" Lead-Free Elbow, Brass, PEX

The Watts LF4721-10 is a lead-free brass Push-to-Connect (CTS) elbow. It features a brass body. This model is certified lead-free for potable-water installations.

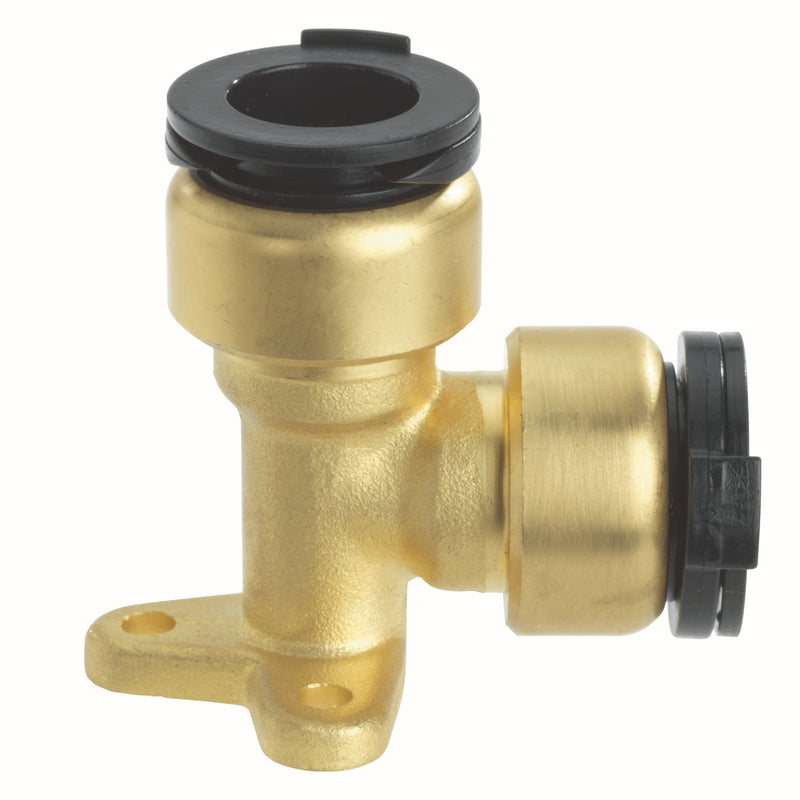

This 1/2 inch CTS AquaLock™ brass drop ear elbow 90 degree connects copper, CPVC, PEX and CTS rated pipe. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.

Features

• No tools required for installation or removal
• Rotates under pressure after installed for high flexibility during installation
• Can be used for hot and cold water applications, including behind the wall applications
• Works with copper, CPVC, PEX, and CTS rated pipe
• Zero-leak connections
• 25-year limited warranty

Common Questions

How does it join the pipe?

It is a Push-to-Connect (CTS) fitting.

What is it made of?

The body is brass. It is certified lead-free for potable water.

Specifications

• Size: 1/2"
• Inlet Size: 1/2"
• Outlet Size: 1/2"
• Connection: PEX
• Body Material: Brass
• Pack Quantity: 50
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: LF4721-10
• Certifications: NSF-61, NSF-14, CSA-B137.5, CSA
• Lead-Free: Yes
• Fitting Type: Elbow
• Connection System: Push-to-Connect (CTS)
