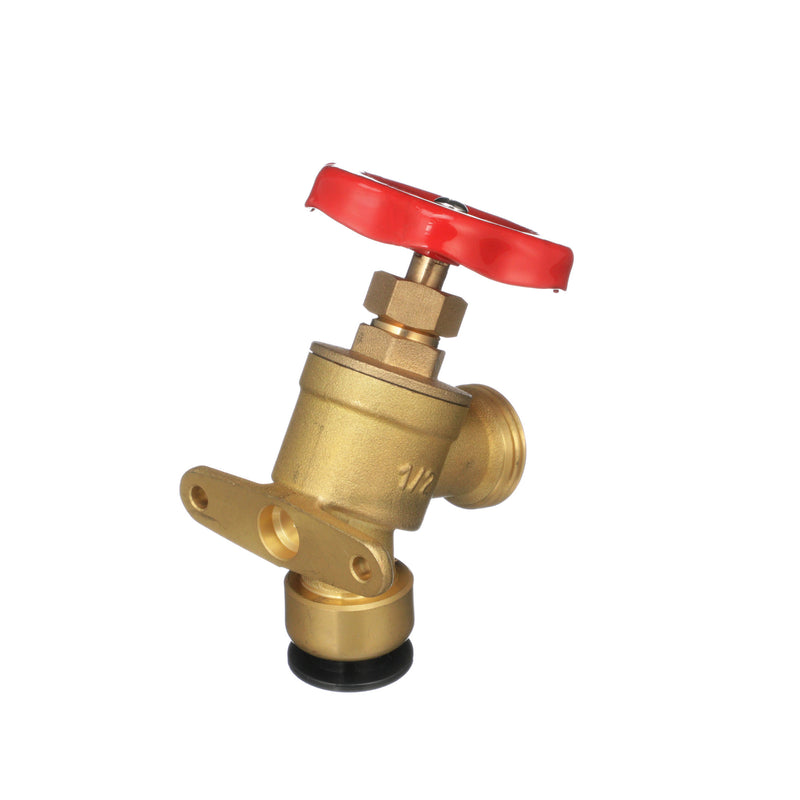

Watts LF4751-1014D 3/4" Lead-Free Garden Hose Valve, Push-to-Connect (CTS)

The Watts LF4751-1014D is a 3/4" lead-free drop-ear garden hose valve with Push-to-Connect (CTS) connections. This model is certified lead-free for potable-water installations.

This 1/2 CTS x 3/4 GHT AquaLock™ drop ear garden hose valve works with copper, CPVC, PEX, and CTS rated pipe. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.

Features

• Controlled with a handwheel
• No tools required for installation or removal
• Rotates under pressure after installed for high flexibility during installation
• Can be used for hot and cold water applications, including behind the wall applications
• Works with copper, CPVC, PEX, and CTS rated pipe
• Zero-leak connections
• 25-year limited warranty

Common Questions

Do I need tools or inserts to install it?

No. The AquaLock push-to-connect end grips copper, CPVC, PEX and CTS tubing with no tools or tube inserts, and rotates under pressure after installation.

Is it approved for potable water?

Yes. This is a Watts LF (lead-free) model, certified to NSF/ANSI 372 for potable-water service.

Specifications

• Type: Hose Valve
• Size: 3/4"
• Inlet Size: 1/2"
• Outlet Size: 3/4"
• Connection: Push-to-Connect (CTS)
• Application: Domestic Water
• Pack Quantity: 50
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: LF4751-1014D
• Certifications: NSF/ANSI 372
• Lead-Free: Yes
• Valve Style: Hose/Sillcock
• Operator / Handle: Handwheel
• Waste / Drain Port: No
• Replacement Part: No
