Specifications
Description

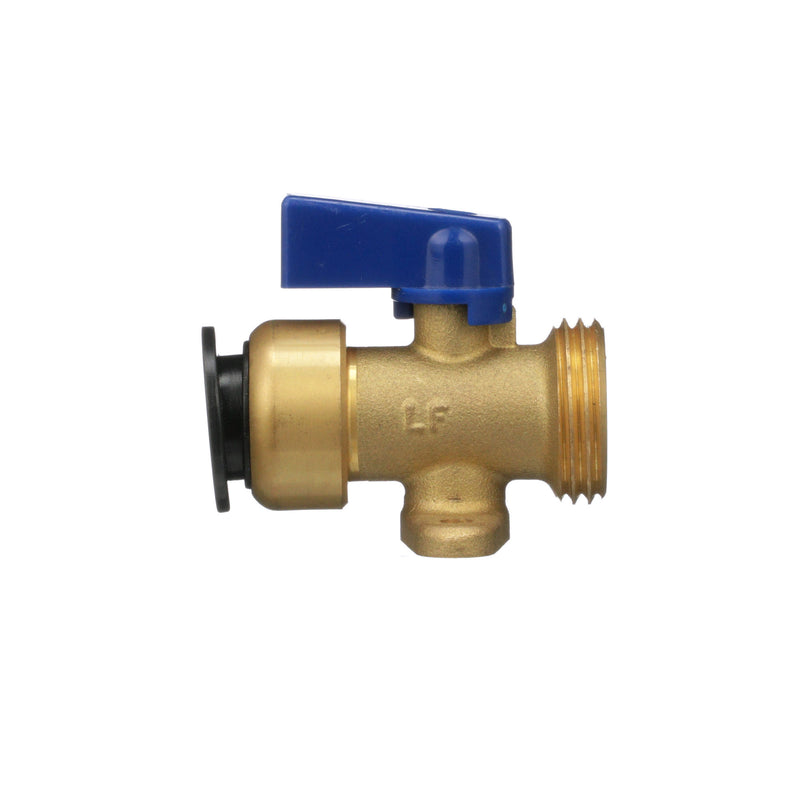

The Watts LF4751-1014S is a 3/4" lead-free ball valve with PEX connections. This model is certified lead-free for potable-water installations.
This 1/2 CTS x 3/4 GHT AquaLock™ straight washing machine valve works with copper, CPVC, PEX, and CTS rated pipe. It is easy to install, no tools or tube inserts are required. The fitting can be used for hot and cold water applications. The unique O-ring guide feature provides a zero-leak connection. Unlike barb fittings, this fitting joins the tubing on the outside, increasing the flow capacity. After a connection has been made even under maximum pressure, the tubing is able to swivel, making the fitting ideal for vibrating and dynamic applications.
Features
- Quarter turn straight ball valve
- No tools required for installation or removal
- Rotates under pressure after installed for high flexibility during installation
- Can be used for hot and cold water applications, including behind the wall applications
- Works with copper, CPVC, PEX, and CTS rated pipe
- Zero-leak connections
- 25-year limited warranty
Common Questions
- Is this rated for potable water?
- Yes. It is a lead-free model (weighted lead content at or below 0.25%), so it is legal for potable water. Check the spec sheet if your submittal specifically requires an NSF/ANSI 61 listing.
Specifications
- Type: Ball
- Size: 3/4"
- Inlet Size: 1/2"
- Outlet Size: 3/4"
- Connection: PEX
- Application: Domestic Water
- Ways: 2-Way
- Pack Quantity: 50
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: LF4751-1014S
- Lead-Free: Yes
- Actuation: Manual
Product Information
| SKU | UPC | Country of Origin | Warranty |
|---|---|---|---|
| 0472079 | 098268180183 | China | 1 Year Limited |
Dimensions
| Size Nominal | 3/4" | Inlet Size | 1/2" |
| Outlet Size | 3/4" | End Connection | PEX |
Details
| Series | Washing Machine Valve LF4751 | Device Type | Ball |
| Lead Free | Yes | Application | Domestic Water |
| Pack Qty | 50 | Valve Ways | 2-Way |
| Actuation | Manual | — | — |
Compare with similar products
| Port Style | — | Full
| Full
| Full
| Full
| — |
| Valve Ways | 2-Way
| 2-Way
| 2-Way
| 2-Way
| 2-Way
| 2-Way
|
| Body Construction | — | 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
|
| Ball Material | — | Stainless Steel
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
|
| Blowout Proof Stem | — | Yes | Yes | Yes | Yes | Yes |
| Handle Type | — | Lever
| Lever
| Lever
| Lever
| Lever
|
| Actuation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| WSP PSI | — | 150.0 psi | 150.0 psi | — | — | — |
| Series | Washing Machine Valve LF4751
| LFB6090-SS
| LFFBV-3C
| LFFBV-PEX-F1960
| LFFBV-PEX-F1960
| LFFBV-PEX-F1960
|
| Country Of Origin | China
| China
| China
| China
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | — | |||||
| Install Sheet | — | — | — | |||
| Device Type | Ball
| Ball
| Ball
| Ball
| Ball
| Ball
|
| Size Nominal | 3/4"
| 3/4"
| 2"
| 1-1/4"
| 1-1/2"
| 1"
|
| Inlet Size | 1/2"
| 3/4"
| 2"
| 1-1/4"
| 1-1/2"
| 1"
|
| Outlet Size | 3/4"
| 3/4"
| 2"
| 1-1/4"
| 1-1/2"
| 1"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | PEX
| Sweat
| Sweat
| PEX
| PEX
| PEX
|
| Body Material | — | Bronze
| Brass
| Brass
| Brass
| Brass
|
| Seat Material | — | PTFE
| PTFE
| EPDM
| EPDM
| EPDM
|
| Application | Domestic Water
| — | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Pressure PSI | — | 600.0 psi | 600.0 psi | 160.0 psi | 160.0 psi | 160.0 psi |
| Max Temp °F | — | 400.0 °F | 400.0 °F | — | — | — |
| Certifications | — | NSF-61, NSF-372
| UL, FM, NSF-61
| NSF-61, NSF-372
| NSF-61, NSF-372
| NSF-61, NSF-372
|
| Pack Qty | 50
| 48
| 6
| 16
| 16
| 24
|
| Min Temp °F | — | 0.0 °F | 0.0 °F | — | — | — |
