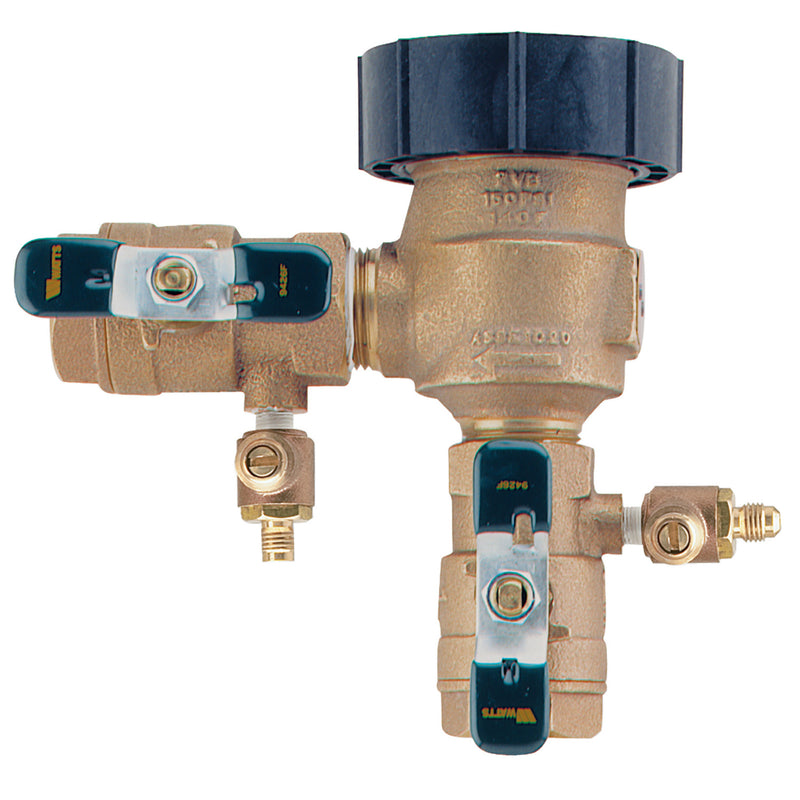

Watts 800M4QT 1 Pressure Vacuum Breaker, Bronze

SKU: 0388002
Price:
Sale price$334.14 Regular price$652.00
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $334.14

Free shipping over $200

Key Features

Product Role Control stop
Operation Continuous
Inlet Size 1"
Spec Sheet Download
See all product information

Similar products

Sloan J-2/J-7 Bumper Assembly, 6 per packSloan Bumper Assembly(6 pack, price per piece) 5310034
Sloan Sloan J-2/J-7 Bumper Assembly, 6 per pack
Sale price$4.83 Regular price$7.30
Sloan G-50-A GEM Handle Repair Kit, 6 per packSloan Handle Repair Kit (6 pack, price per piece) 5307074
Sloan Sloan G-50-A GEM Handle Repair Kit, 6 per pack
Sale price$7.47 Regular price$11.30
Sloan A71 Inside Cover, Bulk PackagedSloan A71 Inside Cover, Bulk Packaged
Sloan Sloan A71 Inside Cover, Bulk Packaged
Sale price$9.19 Regular price$13.90
Compare Products

Specifications

Description

The Watts 800M4QT 1 is a 1" pressure vacuum breaker, approved for high health hazard protection. It features a bronze body and a silicone seat. Rated to 150 psi.

This 1 inch anti-siphon pressure vacuum breaker backflow preventer helps prevent the reverse flow of polluted water from entering into the potable water supply due to backsiphonage. It consists of bronze body construction, silicone rubber check valve disc, plastic check valve seat, stainless steel springs, a bonnet with silicone rubber O-ring seal, a lightweight plastic disc float, tee handle shutoffs, and test cocks for winterization draining. It is ideal in health hazard continuous pressure applications such as irrigation systems and industrial process water systems where the water enters the equipment at or below its flood rim. The maximum pressure is 150 psi (10.3 bar) and the minimum pressure is 15 psi (55kPa).

Features

  • The silicone rubber sealing float O-ring and seal check disc are resistant to heat, shock, and chemical attack for reliable performance
  • The acetal bonnet acts as “freeze plug" to prevent body damage
  • The test cocks are positioned for easy testing and winterization
  • Internal parts are easy to access and service with no special tools required
  • Internal parts easily serviceable in line from top of unit
  • Minimum pressure of 15 psi and maximum pressure of 150 psi
  • Includes: Test Cocks

Common Questions

What hazard level is this PVB approved for?
It is rated for high health hazard (toxic) cross-connections, but only against backsiphonage. The assembly is listed to ASSE 1020.
Can this be installed on potable water?
No. This model is not certified lead-free, so it may not be installed in potable water systems in states enforcing the NSF/ANSI 372 weighted-average lead rule. Use it on non-potable service — fire lines, irrigation or industrial water — or order the LF (lead-free) version of this model for drinking-water use.
Does this assembly have to be tested every year?
Yes. This is a field-testable assembly. Most water authorities require it to be tested and certified by a licensed backflow tester at installation and annually thereafter. It carries USC FCCCHR approval, which many jurisdictions accept as their sole approval list.
Will this protect against backpressure?
No. A pressure vacuum breaker protects against backsiphonage only. It will not stop backflow caused by backpressure — a downstream pump, elevated piping or a boiler — which requires a double check or RPZ assembly.
What shutoff valves are included?
It is supplied with quarter-turn ball valves on the inlet and outlet.
How does this have to be installed?
It must be installed vertically (upright), above the highest downstream outlet, per the installation instructions and its ASSE listing.

Specifications

  • Type: PVB
  • Size: 1"
  • Inlet Size: 1"
  • Outlet Size: 1"
  • Body Material: Bronze
  • Seat / Seal Material: Silicone
  • Max Pressure (psi): 150
  • Application: Domestic Water
  • Backflow Protection: Backsiphonage
  • Operation: Continuous
  • Country of Origin: United States
  • Warranty: 1 Year Limited
  • MPN: 800M4QT 1
  • Certifications: ASSE-1020, USC
  • Lead-Free: No
  • Assembly Type: PVB
  • Hazard Protection Level: High Health Hazard
  • ASSE Standard: ASSE 1020
  • USC FCCCHR Approved: Yes
  • Field Testable: Yes
  • Shutoff Valves: Quarter-Turn Ball
  • Approved Orientation: Vertical
  • Flood Sensor (SentryPlus Alert): No
  • Strainer Included: No
  • Air Gap Fitting Included: No

Product Information

SKUUPCCountry of OriginWarrantySpec SheetInstall Sheet
0388002 671254342668 United States 1 Year Limited DownloadDownload

Dimensions

Size Nominal 1" Inlet Size 1"
Outlet Size 1" ——

Details

Series 3308387 Device Type PVB
Body Material Bronze Seat Material Silicone
Application Domestic Water Operation Continuous
Max Pressure PSI 150.0 psi Backflow Protection Backsiphonage
Options Test Cocks Min Temp °F 33.0 °F
Assembly Type PVB Hazard Rating High Health Hazard
ASSE Standard ASSE 1020 USC Approved Yes
Testable Yes Shutoff Valve Type Quarter-Turn Ball
Orientation Vertical Product Role Control Stop
Coating Polished Chrome ——

Certifications & Standards

ASSE-1020 USC
