Specifications
Description

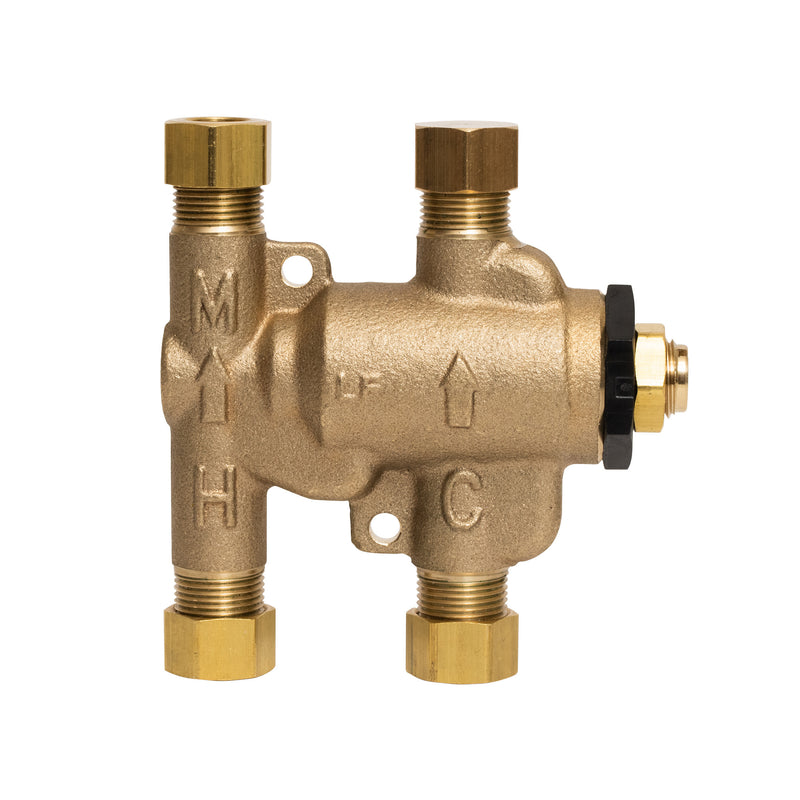

The Watts LFUSG-B M3 is a 3/8" lead-free Under Sink Guardian point-of-use mixing valve with Compression connections. It blends hot and cold water to hold a field-adjustable outlet temperature of 80°F to 120°F. It is listed to ASSE 1070. It features a brass body and a buna-n seat. Rated to 150 psi. This model is certified lead-free for potable-water installations.
This 3/8 inch Under Sink Guardian® lead free thermostatic mixing valve is used in commercial and residential applications to control the hot water temperature and minimize the potential for accidental scalding. It is suitable for kitchen and bath installations where the water delivered to the fixtures is intended for bathing or washing. The double throttling design controls both the hot and cold water supply to the mixed outlet. This valve consists of a lead free brass body, 3/8 inch male compression fittings, copper thermostat, check valves, integral strainer with 40 mesh stainless steel screens, and a tamper resistant locking cap. The maximum working pressure is 150 psi (1034 kPa). The water temperature can be field adjusted between 80 to 120 degrees F (27 to 49 degrees C). The recommended maximum temperature is 110 degrees F (43 degrees C). This product meets the reduced Q test statistic criteria of 0.5 ppb for lead per Section 9.5.1.1 of NSF/ANSI/CAN 61.
Features
- Accurate temperature control with low pressure drop
- Built-in check valves prevent hot and cold water cross flow
- Provides superior flow rate between 0.25 and 2.5 GPM
- ASSE 1070 listed and CSA certified
- Meets the reduced Q test statistic criteria of 0.5 ppb for lead per Section 9.5.1.1 of NSF/ANSI/CAN 61
- Includes: Strainer
- Includes: Tamper Switch
Common Questions
- Can I use this at a lavatory — is it ASSE 1070 listed?
- Yes. This valve is listed to ASSE 1070, the standard for point-of-use scald protection, so it is legal to install it serving a lavatory, sink or similar fixture. Its outlet adjusts from 80°F to 120°F. Note ASSE 1070 does not cover showers — an in-shower device must be ASSE 1016 listed.
- What temperature range does it deliver?
- The outlet temperature is field-adjustable from 80°F to 120°F. Watts recommends a maximum setting of 110°F for handwashing. It holds that setting down to 0.25 gpm of flow.
- Does it have integral checks?
- Yes. Check valves are built into the hot and cold inlets to stop cross-flow between the supplies, along with integral filter washers/screens that keep debris off the thermostat. No separate check valves are needed at the valve.
- Can I lock the temperature setting?
- Yes. The adjustment is secured by a tamper-resistant locking cap, which is what makes this valve suitable for schools, healthcare and other public-fixture work where the setting must not be changed.
Specifications
- Type: Mixing/Tempering
- Size: 3/8"
- Connection: Compression
- Body Material: Brass
- Seat / Seal Material: Buna-N
- Max Pressure (psi): 150
- Pack Quantity: 24
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: LFUSG-B M3
- Certifications: ASSE-1070, IAPMO
- Lead-Free: Yes
- ASSE Listing: ASSE 1070
- Install Point: Point of Use
- Outlet Temp — Min (°F): 80
- Outlet Temp — Max (°F): 120
- Minimum Controllable Flow (gpm): 0.25
- Integral Checks & Filter Washers: Yes
- Locking Temperature Adjustment: Yes
- Temperature Gauge Included: No
- Union Connections: No
- Applications: Lavatory / Sink
Product Information
Dimensions
| Size Nominal | 3/8" | End Connection | Compression |
Details
| Series | LFUSG-B | Device Type | Mixing/Tempering |
| Lead Free | Yes | Body Material | Brass |
| Seat Material | Buna-N | Max Pressure PSI | 150.0 psi |
| Pack Qty | 24 | Options | Strainer, Tamper Switch |
| ASSE Listing | ASSE 1070 | Install Point | Point of Use |
| Outlet Temp Min °F | 80.0 °F | Outlet Temp Max °F | 120.0 °F |
| Flow Min GPM | 0.25 GPM | Integral Checks | Yes |
| Locking Adjustment | Yes | Applications | Lavatory / Sink |
Certifications & Standards
| ASSE-1070 | IAPMO |
Compare with similar products

| ASSE Listing | ASSE 1070
| ASSE 1017, ASSE 1069, ASSE 1070
| ASSE-1070
| ASSE-1070
| ASSE-1070
| ASSE-1070
|
| Install Point | Point of Use
| Point of Use
| Point of Use
| Point of Use
| Point of Use
| Point of Use
|
| Outlet Temp Min °F | 80.0 °F | 80.0 °F | 95.0 °F | 95.0 °F | 95.0 °F | 95.0 °F |
| Outlet Temp Max °F | 120.0 °F | 120.0 °F | 115.0 °F | 115.0 °F | 115.0 °F | 115.0 °F |
| Flow Min GPM | 0.25 GPM | 0.5 GPM | 0.25 GPM | 0.25 GPM | 0.25 GPM | 0.25 GPM |
| Flow Max GPM | — | — | 10.0 GPM | 10.0 GPM | 10.0 GPM | 10.0 GPM |
| Integral Checks | Yes | Yes | Yes | Yes | Yes | Yes |
| Locking Adjustment | Yes | Yes | — | — | — | — |
| Inlet Hot Max °F | — | — | 195.0 °F | 195.0 °F | 195.0 °F | 195.0 °F |
| Applications | Lavatory / Sink
| Lavatory / Sink, Tub / Shower, Water Heater
| — | — | — | — |
| Series | LFUSG-B
| LFMMV
| ZW1070XL
| 34-ZW1070XLC
| ZW1070XL
| 12-ZW1070XLPEX
|
| Country Of Origin | United States
| United States
| — | — | — | — |
| Warranty | 1 Year Limited
| 1 Year Limited
| — | — | — | — |
| Spec Sheet | ||||||
| Install Sheet | ||||||
| Device Type | Mixing/Tempering
| Mixing/Tempering
| Aqua-Gard® Thermostatic Mixing Valve - Point of Use (ASSE 1070)
| Aqua-Gard® Thermostatic Mixing Valve - Point of Use (ASSE 1070)
| Aqua-Gard® Thermostatic Mixing Valve - Point of Use (ASSE 1070)
| Aqua-Gard® Thermostatic Mixing Valve - Point of Use (ASSE 1070)
|
| Size Nominal | 3/8"
| 1/2"
| — | 3/4"
| 1"
| 1/2"
|
| Inlet Size | — | — | — | 3/4"
| 1"
| 1/2"
|
| Outlet Size | — | — | — | 3/4"
| 1"
| 1/2"
|
| Lead Free | Yes | Yes | Yes | Yes | Yes | Yes |
| End Connection | Compression
| NPT
| FNPT
| Sweat
| Sweat
| PEX
|
| Body Material | Brass
| Copper
| Lead-Free Bronze
| Lead-Free Bronze
| Lead-Free Bronze
| Lead-Free Bronze
|
| Seat Material | Buna-N
| EPDM
| — | — | — | — |
| Application | — | — | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Pressure PSI | 150.0 psi | 150.0 psi | 125.0 psi | 125.0 psi | 125.0 psi | 125.0 psi |
| Certifications | ASSE-1070, IAPMO
| ASSE-1017, ASSE-1069, ASSE-1070, IAPMO
| ASSE-1070, IAPMO, CSA-B125.70, NSF/ANSI/CAN 61-9 Q≤1
| ASSE-1070, IAPMO, CSA-B125.70, NSF/ANSI/CAN 61-9 Q≤1
| ASSE-1070, IAPMO, CSA-B125.70, NSF/ANSI/CAN 61-9 Q≤1
| ASSE-1070, IAPMO, CSA-B125.70, NSF/ANSI/CAN 61-9 Q≤1
|
| Pack Qty | 24
| 12
| — | — | — | — |
