Specifications
Description

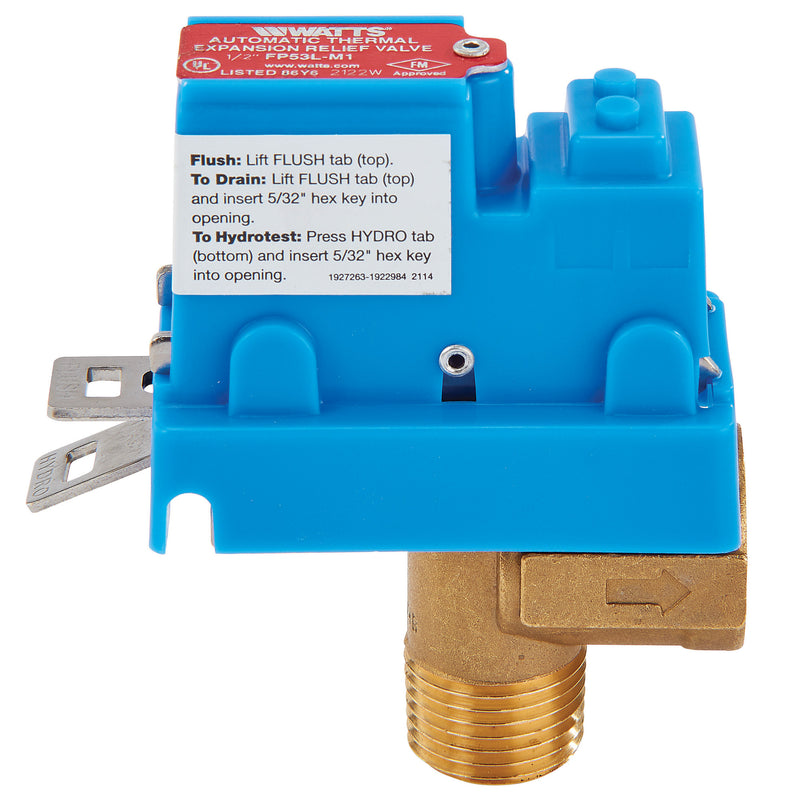

The Watts FP53L-M1-225 1/2 is a 1/2" pressure relief valve for fire protection service, factory set at 225 psi. It is rated to 225 psi.
This 1/2 inch, 225 psi pressure relief valve is designed to relieve thermal expansion in fire protection systems. It features a lever for flushing and draining the system and a second lever to lock the valve closed for hydrostatic testing of the system. This relief valve is FM and UL listed.
Features
- 1/2" male NPT inlet connection
- 1/2" F-NPT outlet connection
- 225 psi set pressure
- FM and UL listed
Common Questions
- What pressure is this valve set to?
- It is factory set to relieve at 225 psi. The setting is fixed and is not field-adjustable.
- Can I use this on potable water?
- No. This model is not certified lead-free, so it cannot be installed in a potable (drinking) water line under the NSF/ANSI 372 weighted-average lead rule. Use it on non-potable service, or order the "LF" version of this model for potable water.
Specifications
- Type: Relief
- Size: 1/2"
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Connection: FNPT
- Max Pressure (psi): 225
- Pack Quantity: 50
- Country of Origin: United States
- Warranty: 1 Year Limited
- MPN: FP53L-M1-225 1/2
- Certifications: UL, FM
- Lead-Free: No
- Relief Type: Pressure Only
- Factory Set Pressure (psi): 225
- Application: Fire Protection
- Shank Length: Standard
- Approved for Potable Water: No
- SentryPlus Alert Flood Sensor: No
Product Information
Dimensions
| Size Nominal | 1/2" | Inlet Size | 1/2" |
| Outlet Size | 1/2" | End Connection | FNPT |
| Shank Length | Standard | — | — |
Details
| Series | FP53L-M1 | Device Type | Relief |
| Max Pressure PSI | 225.0 psi | Pack Qty | 50 |
| Relief Type | Pressure Only | Set Pressure PSI | 225.0 psi |
| Application Class | Fire Protection | — | — |
Certifications & Standards
| UL | FM |
Compare with similar products
| Relief Type | Pressure Only
| Pressure Only
| Pressure Only
| Pressure Only
| Pressure Only
| Pressure Only
|
| Set Pressure PSI | 225.0 psi | 125.0 psi | 60.0 psi | 150.0 psi | 125.0 psi | 125.0 psi |
| Application Class | Fire Protection
| Tankless / Thermal Expansion
| Tankless / Thermal Expansion
| Tankless / Thermal Expansion
| Tankless / Thermal Expansion
| Tankless / Thermal Expansion
|
| Shank Length | Standard
| Standard
| Standard
| Standard
| Standard
| Standard
|
| Connection Config | — | MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
| MNPT inlet x FNPT outlet
|
| Test Lever | — | — | — | Yes | — | Yes |
| Potable Approved | — | Yes | Yes | Yes | — | — |
| Series | FP53L-M1
| LF111
| LF111
| LF53L
| 111
| 53L
|
| Country Of Origin | United States
| United States
| United States
| United States
| United States
| United States
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | — | — | — | |||
| Install Sheet | — | — | — | |||
| Device Type | Relief
| Relief
| Relief
| Relief
| Relief
| Relief
|
| Size Nominal | 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
|
| Inlet Size | 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
|
| Outlet Size | 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
| 1/2"
|
| Lead Free | — | Yes | Yes | Yes | — | — |
| End Connection | FNPT
| MNPT
| MNPT
| MNPT
| MNPT
| MNPT
|
| Body Material | — | Bronze
| Bronze
| — | Bronze
| Bronze
|
| Max Pressure PSI | 225.0 psi | 125.0 psi | 60.0 psi | 150.0 psi | 125.0 psi | 150.0 psi |
| Certifications | UL, FM
| — | — | ANSI Z21.22, CSA 4.4
| — | ANSI Z21.22, CSA 4.4
|
| Pack Qty | 50
| 50
| 50
| 50
| 50
| 50
|
