Specifications
Description

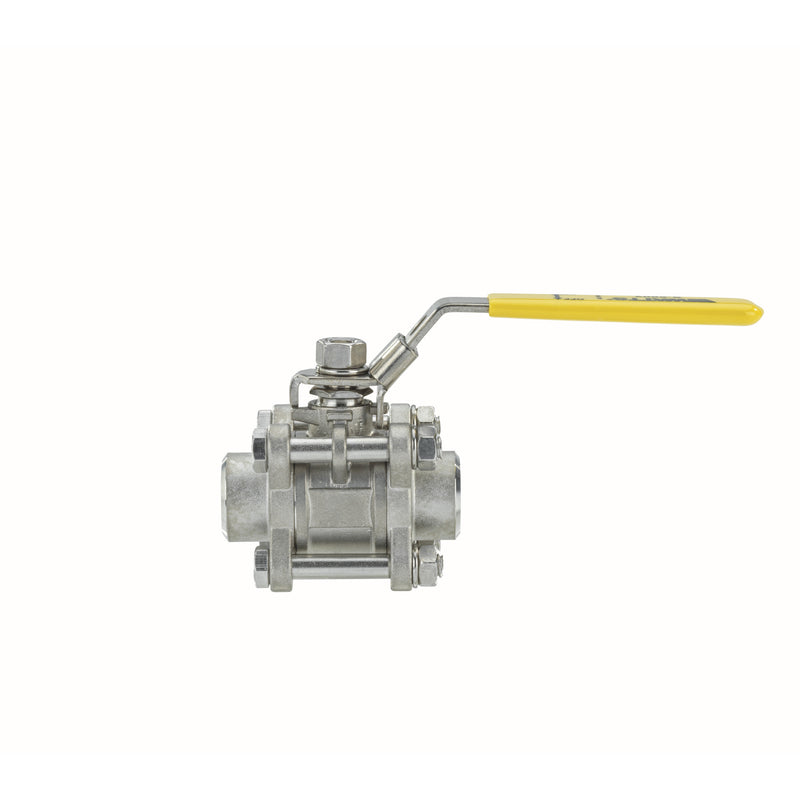

The Watts S-6802 1/2 is a 1/2" 3-piece full port ball valve with a lever handle. It features a stainless body and a ptfe seat. Rated to 1000 psi.
This 1/2 inch 3-piece full port stainless steel ball valve is designed for commercial and industrial applications. Its in-line maintenance design allows for servicing all operating components without disturbing the piping system. The full-port orifice maximizes flow capacity. Consisting of a durable stainless steel body with butt weld end connections, PTFE seat, stainless steel ball, and blow-out proof stem, this valve ensures safety while withstanding high operating-pressure and temperature limits.
Features
- Designed for in-line maintenance
- Blowout-proof pressure retaining stem
- Butt weld end connections
- Full port
Common Questions
- Is this full port or standard port?
- Full port. The ball bore matches the 1/2" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.
- Can I use this on natural gas or propane?
- No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
- Can it be serviced without cutting it out?
- Yes. The three-piece body unbolts so the center section — ball, seats, and stem — can be rebuilt with the end caps left in the line.
Specifications
- Type: Ball
- Size: 1/2"
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Body Material: Stainless
- Seat / Seal Material: PTFE
- Max Pressure (psi): 1000
- Port Style: Full
- Ways: 2-Way
- Pack Quantity: 45
- Country of Origin: Taiwan
- Warranty: 1 Year Limited
- MPN: S-6802 1/2
- Lead-Free: No
- Valve Construction: 3-Piece
- Ball Material: Stainless Steel
- Stem Material: Stainless Steel
- Blowout-Proof Stem: Yes
- Handle Type: Lever
- Actuation: Manual
- Fuel Gas Rated: No
- Integral Drain / Waste Port: No
Product Information
Dimensions
| Size Nominal | 1/2" | Inlet Size | 1/2" |
| Outlet Size | 1/2" | — | — |
Details
| Series | S-6802 | Device Type | Ball |
| Body Material | Stainless | Seat Material | PTFE |
| Port Style | Full | Max Pressure PSI | 1000.0 psi |
| Pack Qty | 45 | Min Temp °F | 0.0 °F |
| Valve Ways | 2-Way | Body Construction | 3-Piece |
| Ball Material | Stainless Steel | Stem Material | Stainless Steel |
| Blowout Proof Stem | Yes | Handle Type | Lever |
| Actuation | Manual | — | — |
