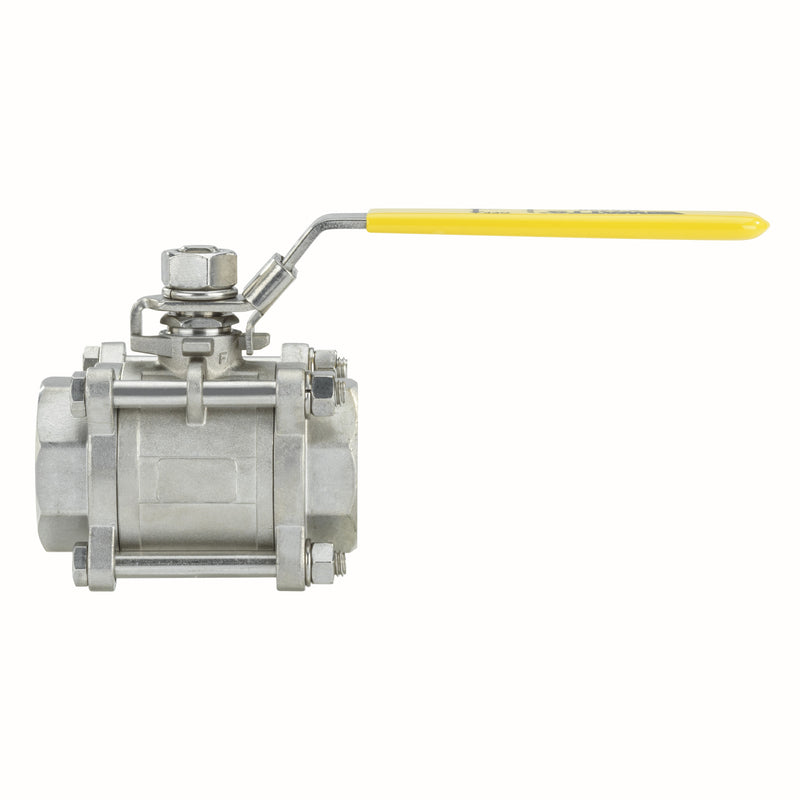

Watts S-6800 1 1/2 Ball Valve, Stainless, NPT

SKU: 0124864
Price:
Sale price$454.97 Regular price$653.50
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $454.97

Free shipping over $200

Key Features

Actuation Manual
Body Construction 3-Piece
Ball Material Stainless Steel
Spec Sheet Download
See all product information

Similar products

Zurn 3/4" - 1" 975XL2, Relief Valve Cover Lead Free 972-3AXL2-010F
Zurn Zurn 972-3AXL2-010F
Sale price$133.56 Regular price$190.00
Watts A2C-LS
Watts LFHK FBV-SS-TH-W 1
Watts Watts LFHK FBV-SS-TH-W 1 Lead-Free Ball Valve
Sale price$18.80 Regular price$27.00
Compare Products

Specifications

Description

The Watts S-6800 1 1/2 is a 1-1/2" 3-piece full port ball valve with NPT connections. It features a stainless body and a ptfe seat. Rated to 1000 psi.

This 1 1/2 inch 3-piece full port stainless steel ball valve is designed for commercial and industrial applications. Its in-line maintenance design allows for servicing all operating components without disturbing the piping system. The full-port orifice maximizes flow capacity. Consisting of a durable stainless steel body with threaded NPT end connections, PTFE seat, stainless steel ball, and blow-out proof stem, this valve ensures safety while withstanding high operating-pressure and temperature limits.

Features

  • Designed for in-line maintenance
  • Blowout-proof pressure retaining stem
  • Threaded NPT end connections
  • Full port

Common Questions

Is this full port or standard port?
Full port. The ball bore matches the 1-1/2" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.
Can I use this on natural gas or propane?
No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
Can it be serviced without cutting it out?
Yes. The three-piece body unbolts so the center section — ball, seats, and stem — can be rebuilt with the end caps left in the line.

Specifications

  • Type: Ball
  • Size: 1-1/2"
  • Inlet Size: 1-1/2"
  • Outlet Size: 1-1/2"
  • Connection: NPT
  • Body Material: Stainless
  • Seat / Seal Material: PTFE
  • Max Pressure (psi): 1000
  • Port Style: Full
  • Ways: 2-Way
  • Pack Quantity: 6
  • Country of Origin: Taiwan
  • Warranty: 1 Year Limited
  • MPN: S-6800 1 1/2
  • Lead-Free: No
  • Valve Construction: 3-Piece
  • Ball Material: Stainless Steel
  • Stem Material: Stainless Steel
  • Blowout-Proof Stem: Yes
  • Handle Type: Lever
  • Actuation: Manual
  • Fuel Gas Rated: No
  • Integral Drain / Waste Port: No

Product Information

SKUUPCCountry of OriginWarrantySpec SheetInstall Sheet
0124864 098268651317 Taiwan 1 Year Limited DownloadDownload

Dimensions

Size Nominal 1-1/2" Inlet Size 1-1/2"
Outlet Size 1-1/2" End Connection NPT

Details

Series S-6800 Device Type Ball
Body Material Stainless Seat Material PTFE
Port Style Full Max Pressure PSI 1000.0 psi
Pack Qty 6 Min Temp °F 0.0 °F
Valve Ways 2-Way Body Construction 3-Piece
Ball Material Stainless Steel Stem Material Stainless Steel
Blowout Proof Stem Yes Handle Type Lever
Actuation Manual ——

Compare with similar products

Port Style
Full
Full
Full
Full
Full
—
Valve Ways
2-Way
2-Way
2-Way
2-Way
2-Way
2-Way
Body Construction
3-Piece
2-Piece
2-Piece
2-Piece
2-Piece
2-Piece
Ball Material
Stainless Steel
Stainless Steel
Chrome-Plated Brass
Chrome-Plated Brass
Chrome-Plated Brass
Chrome-Plated Brass
Stem Material
Stainless Steel
Stainless Steel
—
—
—
—
Blowout Proof Stem
Yes
Yes
Yes
Yes
Yes
Yes
Handle Type
Lever
Lever
Lever
Lever
Lever
Lever
Actuation
Manual
Manual
Manual
Manual
Manual
Manual
WSP PSI
—
150.0 psi
150.0 psi
—
—
—
Series
S-6800
LFB6090-SS
LFFBV-3C
LFFBV-PEX-F1960
LFFBV-PEX-F1960
LFFBV-PEX-F1960
Country Of Origin
Taiwan
China
China
China
China
China
Warranty
1 Year Limited
1 Year Limited
1 Year Limited
1 Year Limited
1 Year Limited
1 Year Limited
Spec Sheet
Install Sheet
—
—
Device Type
Ball
Ball
Ball
Ball
Ball
Ball
Size Nominal
1-1/2"
3/4"
2"
1-1/4"
1-1/2"
1"
Inlet Size
1-1/2"
3/4"
2"
1-1/4"
1-1/2"
1"
Outlet Size
1-1/2"
3/4"
2"
1-1/4"
1-1/2"
1"
Lead Free
—
Yes
Yes
Yes
Yes
Yes
End Connection
NPT
Sweat
Sweat
PEX
PEX
PEX
Body Material
Stainless
Bronze
Brass
Brass
Brass
Brass
Seat Material
PTFE
PTFE
PTFE
EPDM
EPDM
EPDM
Application
—
—
Domestic Water
Domestic Water
Domestic Water
Domestic Water
Max Pressure PSI
1000.0 psi
600.0 psi
600.0 psi
160.0 psi
160.0 psi
160.0 psi
Max Temp °F
—
400.0 °F
400.0 °F
—
—
—
Certifications
—
NSF-61, NSF-372
UL, FM, NSF-61
NSF-61, NSF-372
NSF-61, NSF-372
NSF-61, NSF-372
Pack Qty
6
48
6
16
16
24
Min Temp °F
0.0 °F
0.0 °F
0.0 °F
—
—
—
