Specifications
Description

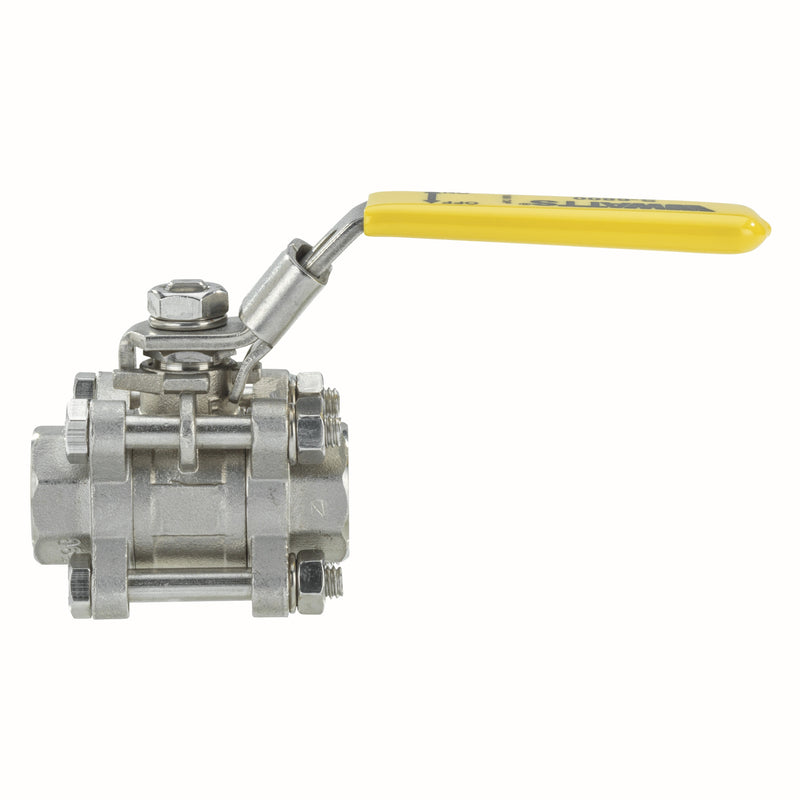

The Watts S-6800 1/4 is a 1/4" 3-piece full port ball valve with NPT connections. It features a stainless body and a ptfe seat. Rated to 1000 psi.
This 1/4 inch 3-piece full port stainless steel ball valve is designed for commercial and industrial applications. Its in-line maintenance design allows for servicing all operating components without disturbing the piping system. The full-port orifice maximizes flow capacity. Consisting of a durable stainless steel body with threaded NPT end connections, PTFE seat, stainless steel ball, and blow-out proof stem, this valve ensures safety while withstanding high operating-pressure and temperature limits.
Features
- Designed for in-line maintenance
- Blowout-proof pressure retaining stem
- Threaded NPT end connections
- Full port
Common Questions
- Is this full port or standard port?
- Full port. The ball bore matches the 1/4" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.
- Can I use this on natural gas or propane?
- No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
- Can it be serviced without cutting it out?
- Yes. The three-piece body unbolts so the center section — ball, seats, and stem — can be rebuilt with the end caps left in the line.
Specifications
- Type: Ball
- Size: 1/4"
- Inlet Size: 1/4"
- Outlet Size: 1/4"
- Connection: NPT
- Body Material: Stainless
- Seat / Seal Material: PTFE
- Max Pressure (psi): 1000
- Port Style: Full
- Ways: 2-Way
- Pack Quantity: 60
- Country of Origin: Taiwan
- Warranty: 1 Year Limited
- MPN: S-6800 1/4
- Lead-Free: No
- Valve Construction: 3-Piece
- Ball Material: Stainless Steel
- Stem Material: Stainless Steel
- Blowout-Proof Stem: Yes
- Handle Type: Lever
- Actuation: Manual
- Fuel Gas Rated: No
- Integral Drain / Waste Port: No
Product Information
Dimensions
| Size Nominal | 1/4" | Inlet Size | 1/4" |
| Outlet Size | 1/4" | End Connection | NPT |
Details
| Series | S-6800 | Device Type | Ball |
| Body Material | Stainless | Seat Material | PTFE |
| Port Style | Full | Max Pressure PSI | 1000.0 psi |
| Pack Qty | 60 | Min Temp °F | 0.0 °F |
| Valve Ways | 2-Way | Body Construction | 3-Piece |
| Ball Material | Stainless Steel | Stem Material | Stainless Steel |
| Blowout Proof Stem | Yes | Handle Type | Lever |
| Actuation | Manual | — | — |
Compare with similar products
| Port Style | Full
| Full
| Full
| Full
| Full
| — |
| Valve Ways | 2-Way
| 2-Way
| 2-Way
| 2-Way
| 2-Way
| 2-Way
|
| Body Construction | 3-Piece
| 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
|
| Ball Material | Stainless Steel
| Stainless Steel
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
|
| Stem Material | Stainless Steel
| Stainless Steel
| — | — | — | — |
| Blowout Proof Stem | Yes | Yes | Yes | Yes | Yes | Yes |
| Handle Type | Lever
| Lever
| Lever
| Lever
| Lever
| Lever
|
| Actuation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| WSP PSI | — | 150.0 psi | 150.0 psi | — | — | — |
| Series | S-6800
| LFB6090-SS
| LFFBV-3C
| LFFBV-PEX-F1960
| LFFBV-PEX-F1960
| LFFBV-PEX-F1960
|
| Country Of Origin | Taiwan
| China
| China
| China
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Install Sheet | — | — | ||||
| Device Type | Ball
| Ball
| Ball
| Ball
| Ball
| Ball
|
| Size Nominal | 1/4"
| 3/4"
| 2"
| 1-1/4"
| 1-1/2"
| 1"
|
| Inlet Size | 1/4"
| 3/4"
| 2"
| 1-1/4"
| 1-1/2"
| 1"
|
| Outlet Size | 1/4"
| 3/4"
| 2"
| 1-1/4"
| 1-1/2"
| 1"
|
| Lead Free | — | Yes | Yes | Yes | Yes | Yes |
| End Connection | NPT
| Sweat
| Sweat
| PEX
| PEX
| PEX
|
| Body Material | Stainless
| Bronze
| Brass
| Brass
| Brass
| Brass
|
| Seat Material | PTFE
| PTFE
| PTFE
| EPDM
| EPDM
| EPDM
|
| Application | — | — | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Pressure PSI | 1000.0 psi | 600.0 psi | 600.0 psi | 160.0 psi | 160.0 psi | 160.0 psi |
| Max Temp °F | — | 400.0 °F | 400.0 °F | — | — | — |
| Certifications | — | NSF-61, NSF-372
| UL, FM, NSF-61
| NSF-61, NSF-372
| NSF-61, NSF-372
| NSF-61, NSF-372
|
| Pack Qty | 60
| 48
| 6
| 16
| 16
| 24
|
| Min Temp °F | 0.0 °F | 0.0 °F | 0.0 °F | — | — | — |
