Specifications
Description

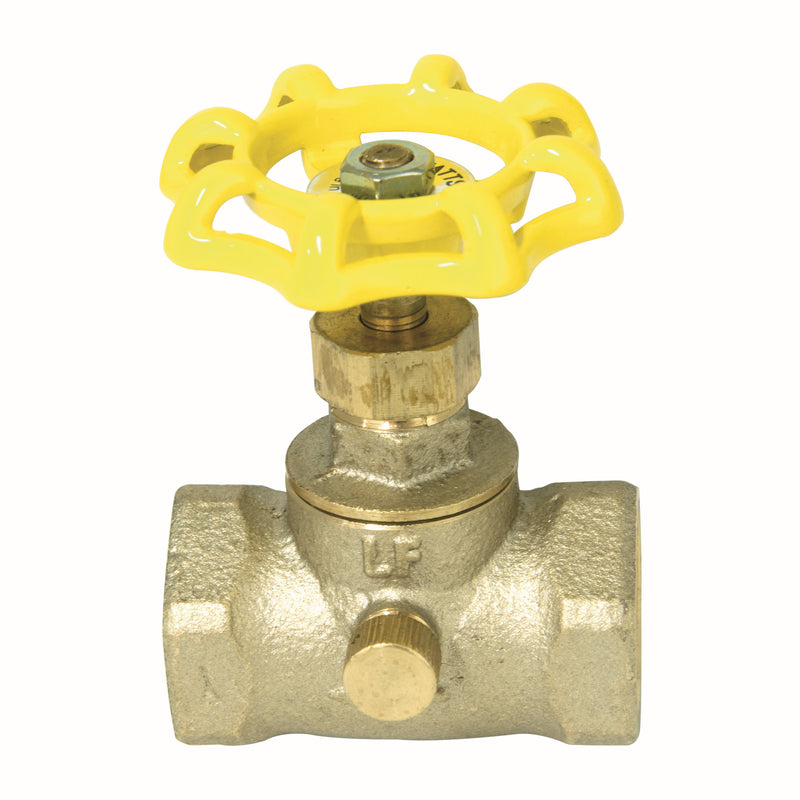

The Watts LFSWT 1/2 is a 1/2" lead-free stop-and-waste valve with female FNPT connections. It features a brass body and a rubber seat. Rated to 150 psi and up to 180°F. This model is certified lead-free for potable-water installations.
This 1/2 inch lead free stop and waste valve is used in residential applications as a stop and waste shutoff. It consists of a lead free body with a handwheel for shutoff and NPT female thread end connections. It has a waste port to allow draining or venting of downstream line when valve is in the off position.
Features
- Lead free construction
- NPT female threaded connection
- Waste port
- Handwheel shutoff
Common Questions
- Does it have a waste/drain port?
- Yes. With the valve closed, the waste port drains or vents the downstream line — used to winterize hose bibbs, sillcocks and irrigation runs.
- Is it approved for potable water?
- Yes. This is a Watts LF (lead-free) model, certified to NSF/ANSI 372 for potable-water service.
Specifications
- Type: Stop and Waste
- Size: 1/2"
- Inlet Size: 1/2"
- Outlet Size: 1/2"
- Connection: FNPT
- Connection Gender: Female
- Body Material: Brass
- Seat / Seal Material: Rubber
- Max Pressure (psi): 150
- Application: Domestic Water
- Pack Quantity: 72
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: LFSWT 1/2
- Temperature: up to 180°F
- Certifications: NSF/ANSI 372
- Lead-Free: Yes
- Valve Style: Stop-and-Waste
- Pressure Rating: 150 psi WOG
- Operator / Handle: Handwheel
- Waste / Drain Port: Yes
- Replacement Part: No
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0123612 | 098268701234 | China | 1 Year Limited | Download |
Dimensions
| Size Nominal | 1/2" | Inlet Size | 1/2" |
| Outlet Size | 1/2" | End Connection | FNPT |
| Connection Gender | Female | — | — |
Details
| Series | LFSWT | Device Type | Stop and Waste |
| Lead Free | Yes | Body Material | Brass |
| Seat Material | Rubber | Application | Domestic Water |
| Max Pressure PSI | 150.0 psi | Max Temp °F | 180.0 °F |
| Pack Qty | 72 | Valve Style | Stop-and-Waste |
| WOG WSP Rating | 150 psi WOG | Operator | Handwheel |
| Waste Drain | Yes | — | — |
Certifications & Standards
| NSF/ANSI 372 | — |
