Specifications
Description

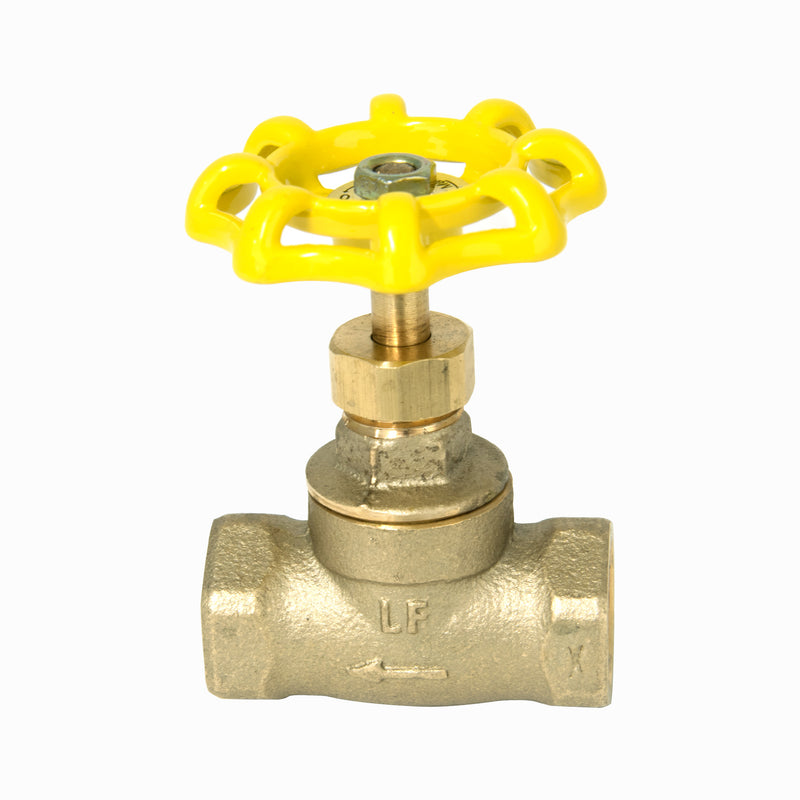

The Watts LFST 3/4 is a 3/4" lead-free stop valve with female FNPT connections. It features a brass body and a rubber seat. Rated to 150 psi and up to 180°F. This model is certified lead-free for potable-water installations.
This 3/4 inch lead free stop valve is used in residential applications for shutoff service only. It consists of a lead free brass body construction construction with NPT female threaded end connections and a handwheel for shutoff. The maximum working pressure is 150 psi (10.3 bar) WOG and the maximum temperature is 180 degrees F (82 degrees C).
Features
- Lead free body construction
- NPT female connection
- Maximum pressure is 150 psi
- Maximum temperature 180 degrees F
Common Questions
- Does it have a waste/drain port?
- No. This is a straight shutoff with no waste port. If you need to drain the line downstream for winterization, order the stop-and-waste (LFSWT/LFSWS) or the -W angle meter version.
- Is it approved for potable water?
- Yes. This is a Watts LF (lead-free) model, certified to NSF/ANSI 372 for potable-water service.
Specifications
- Type: Stop
- Size: 3/4"
- Inlet Size: 3/4"
- Outlet Size: 3/4"
- Connection: FNPT
- Connection Gender: Female
- Body Material: Brass
- Seat / Seal Material: Rubber
- Max Pressure (psi): 150
- Application: Domestic Water
- Pack Quantity: 72
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: LFST 3/4
- Temperature: up to 180°F
- Certifications: NSF/ANSI 372
- Lead-Free: Yes
- Valve Style: Stop
- Pressure Rating: 150 psi WOG
- Operator / Handle: Handwheel
- Waste / Drain Port: No
- Replacement Part: No
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0123606 | 098268735949 | China | 1 Year Limited | Download |
Dimensions
| Size Nominal | 3/4" | Inlet Size | 3/4" |
| Outlet Size | 3/4" | End Connection | FNPT |
| Connection Gender | Female | — | — |
Details
| Series | LFST | Device Type | Stop |
| Lead Free | Yes | Body Material | Brass |
| Seat Material | Rubber | Application | Domestic Water |
| Max Pressure PSI | 150.0 psi | Max Temp °F | 180.0 °F |
| Pack Qty | 72 | Valve Style | Stop |
| WOG WSP Rating | 150 psi WOG | Operator | Handwheel |
Certifications & Standards
| NSF/ANSI 372 | — |
