Specifications
Description
The Watts LFBIV-UT-HCN 1 is a boiler isolation valve set for 1" boilers. It features a copper body and a ptfe seat. Rated to 600 psi. This model is certified lead-free for potable-water installations.

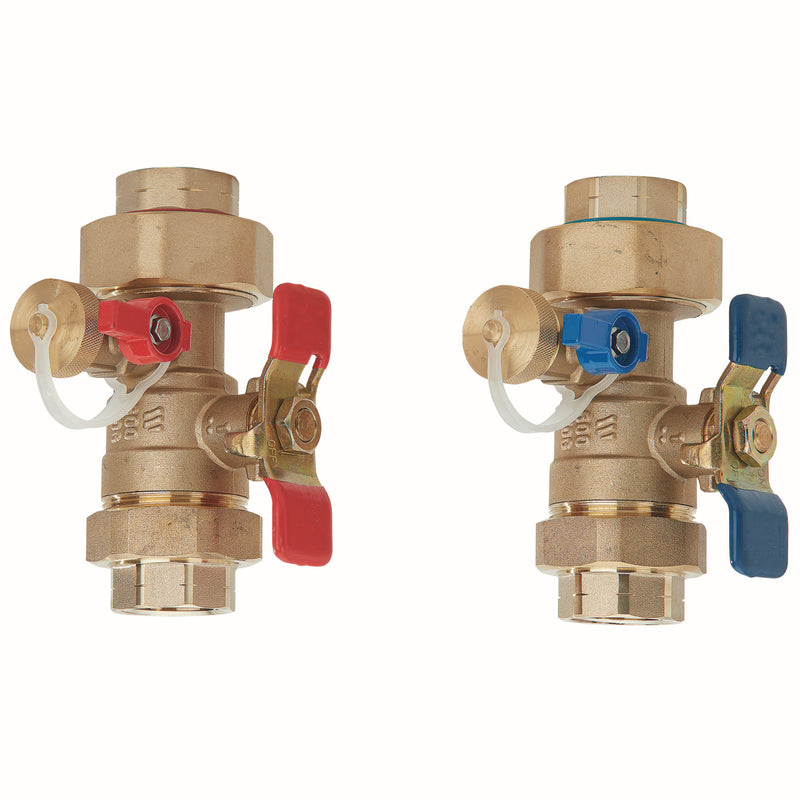

This 1 inch lead free boiler isolation valve set with threaded connections facilitates isolation of the boiler from the system supply and return lines, purging and draining. It features a brass body, full-port quarter-turn ball valve with color-coded T-handle, virgin PTFE seats, female NPT union connection to the boiler, purge and drain valve with a hose connection and tethered brass cap. The pressure rating is 600 psi (41.4 bar) WOG.
Features
- 1-inch full port ball valve
- Suitable for most wall hung boiler and combi-unit applications
- Integral drain valves for draining and purging
- 1-inch female NPT union connections
Common Questions
- Will this fit my valve?
- The LFBIV-UT-HCN 1 is sized for 1" boilers. Confirm your valve size before ordering.
- What's included?
- This boiler isolation valve set includes hot side isolation valve and cold side isolation valve.
Specifications
- Connection: FNPT
- Connection Gender: Female
- Body Material: Copper
- Seat / Seal Material: PTFE
- Max Pressure (psi): 600
- Port Style: Full
- Pack Quantity: 6
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: LFBIV-UT-HCN 1
- Certifications: NSF-61
- Lead-Free: Yes
- Accessory Type: Boiler Isolation Valve Set
- Fits Valve Type: Boiler
- Fits Valve Size: 1"
- Kit Includes: Hot side isolation valve;Cold side isolation valve
Product Information
Dimensions
| End Connection | FNPT | Connection Gender | Female |
Details
| Series | LFBIV | Lead Free | Yes |
| Body Material | Copper | Seat Material | PTFE |
| Port Style | Full | Max Pressure PSI | 600.0 psi |
| Pack Qty | 6 | Accessory Type | Boiler Isolation Valve Set |
| Compatible Valve Type | Boiler | Compatible Size | 1" |
| Kit Includes | Hot side isolation valve, Cold side isolation valve | — | — |
Certifications & Standards
| NSF-61 | — |
