Specifications
Description

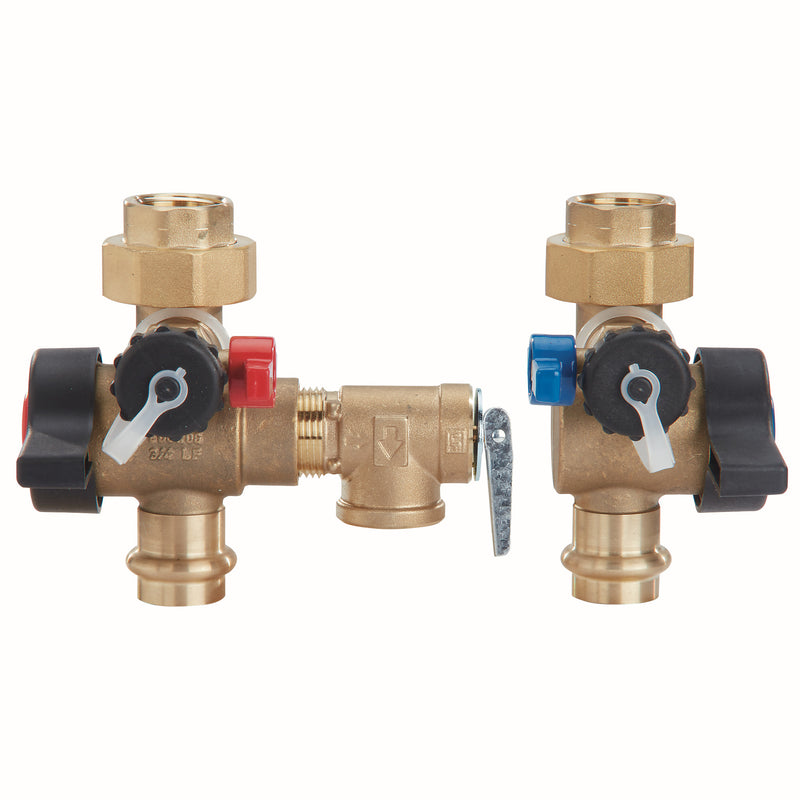

The Watts 3/4 LFTWHG2-PC-HC-RV is a tankless water heater valve set for 3/4" tankless water heaters. It features a copper body and a epdm seat. Rated to 150 psi. This model is certified lead-free for potable-water installations.
This 3/4 inch Gen II tankless water heater service valve with VersaFit™ technology is designed to simplify the installation and maintenance of tankless water heaters. It replaces up to 18 fittings and 16 connections used in typical tankless water heater installations. VersaFit technology provides versatility to easily configure the relief valve to the left or right side of the hot valve and keep the drain port facing forward for simpler installation and maintenance. This 3/4 inch tankless water heater valve set consist of hot and cold water heater valves made of lead free copper silicon alloy, 3/4 inch female NPT unions for connection to water heater, 3/4 inch press connections for plumbing lines and a 150 psi 3/4 inch pressure relief valve.
Features
- Lead free copper silicon alloy body
- Tankless water heater valves with VersaFit technology
- Compact design with modified 1-plane alignment requires less space under the water heater in tight installations
- Smooth turning, low-torque handle operation
- 3/4 press connections
- Includes pressure relief valve
Common Questions
- Will this fit my valve?
- The 3/4 LFTWHG2-PC-HC-RV is sized for 3/4" tankless water heaters. Confirm your valve size before ordering.
- What's included?
- This tankless water heater valve set includes hot side isolation valve, cold side isolation valve and 150 psi relief valve.
Specifications
- Connection: Press
- Body Material: Copper
- Seat / Seal Material: EPDM
- Max Pressure (psi): 150
- Pack Quantity: 12
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: 3/4 LFTWHG2-PC-HC-RV
- Certifications: NSF-61
- Lead-Free: Yes
- Accessory Type: Tankless WH Valve Set
- Fits Valve Type: Tankless WH
- Fits Valve Size: 3/4"
- Kit Includes: Hot side isolation valve;Cold side isolation valve;150 psi relief valve
Product Information
Dimensions
| End Connection | Press | — | — |
Details
| Series | LFTWHG2 | Lead Free | Yes |
| Body Material | Copper | Seat Material | EPDM |
| Max Pressure PSI | 150.0 psi | Pack Qty | 12 |
| Accessory Type | Tankless WH Valve Set | Compatible Valve Type | Tankless WH |
| Compatible Size | 3/4" | Kit Includes | Hot side isolation valve, Cold side isolation valve, 150 psi relief valve |
Certifications & Standards
| NSF-61 | — |
Compare with similar products
| Accessory Type | Tankless WH Valve Set
| Tankless WH Valve Set
|
| Compatible Valve Type | Tankless WH
| Tankless WH
|
| Compatible Size | 3/4"
| 3/4"
|
| Kit Includes | Hot side isolation valve, Cold side isolation valve, 150 psi relief valve
| Hot side isolation valve
|
| Series | LFTWHG2
| LFTWH
|
| Country Of Origin | China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||
| Install Sheet | ||
| Lead Free | Yes | Yes |
| End Connection | Press
| FNPT
|
| Body Material | Copper
| Copper
|
| Seat Material | EPDM
| PTFE
|
| Max Pressure PSI | 150.0 psi | 150.0 psi |
| Certifications | NSF-61
| NSF-61
|
| Pack Qty | 12
| 5
|
