Watts 8 FP-SK-77F-FDA-OSY Lead-Free Strainer, Cast Iron, Flanged

SKU: 0113146
Price:
Sale price$11,573.87 Regular price$16,624.00
Stock:

Not in regular stock. We order it, inspect it and ship it to you. Delivery times may vary.

Subtotal: $11,573.87

Freight delivery: flat $300 per order, due to this item’s size or weight.

Key Features

Screen Type Perforated
Pattern Wye
Screen Material 304 Stainless Steel
Spec Sheet Download
See all product information

Similar products

Watts LLL100XL-2M7-150210 3/4
Watts RK N45B-EZ-N55BM1
Watts Watts RK N45B-EZ-N55BM1 Pressure Reducing Valve
Sale price$52.74 Regular price$75.75
Compare Products

Specifications

Description

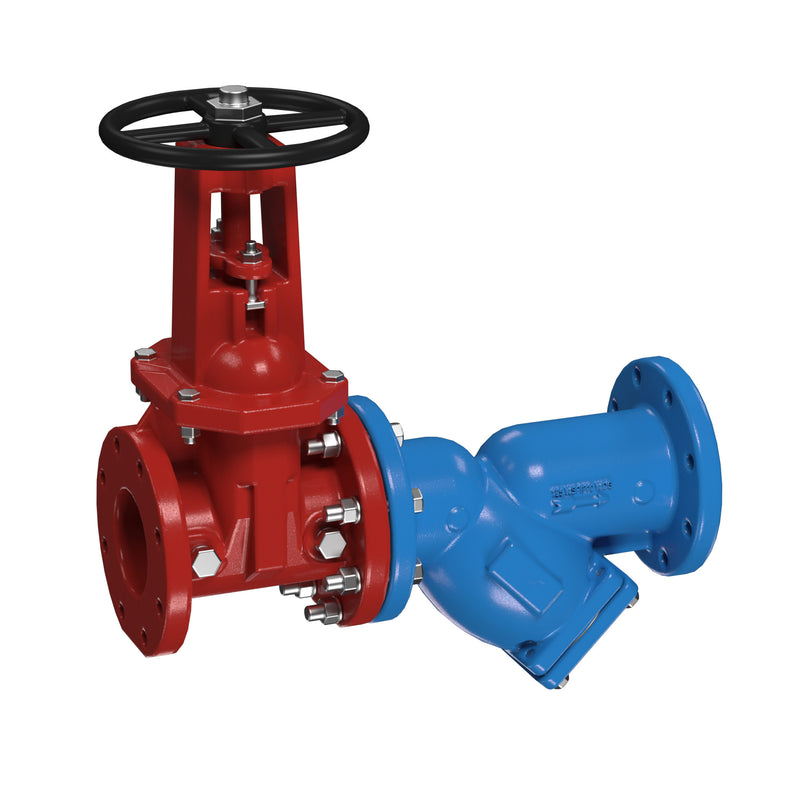

The Watts 8 FP-SK-77F-FDA-OSY is a 8" lead-free wye-pattern strainer with Flanged connections that removes pipeline debris and particulates to protect downstream equipment. It ships with a 1/8" perforated 304 stainless steel screen. It features a cast iron body. Rated to 200 psi. This model is certified lead-free for potable-water installations.

This 8 inch cast iron flanged wye pattern strainer has a lead free class B cast iron body with 1/8 inch perforated screen, class 125 flanged connections, cast iron blowdown plug, stainless steel perforated screen, bolted and tapped iron retainer cap with graphite gasket and drain/blowoff connection furnished with a closure plug. It also features a double coated, heat fused FDA approved epoxy coating inside and outside and is suitable for potable water, sanitary and food contact applications. It is applicable for liquid and steam service to protect check valves, backflow preventers and similar controls from foreign matter. The maximum pressure is(non-shock) 200 psi (13.8 bar) at 210 degree F (99 degree C) WOG, 125 psi (8.6 bar) at 353 degree F (178 degree C) WSP. It is supplied with an upstream OSY shutoff.

Features

  • Wye pattern
  • Cast iron body
  • 304 stainless steel perforated screens
  • Flanged
  • Includes: Strainer

Common Questions

What mesh or screen size does it come with?
8 FP-SK-77F-FDA-OSY ships with a 1/8" perforated 304 Stainless Steel screen. That is the standard screen Watts supplies for this body at this pipe size -- the screen size is not called out in the model number, so it varies by size across the series.
Can I use this on steam?
Yes. 8 FP-SK-77F-FDA-OSY is rated 125 psi WSP on steam, which is a separate and much lower limit than its 200 psi WOG (cold water, oil, gas) rating. Do not size steam service off the WOG number.
Does it have a blowoff / blowdown port?
Yes. The retainer cap/cover is tapped for a blowoff connection, so you can flush accumulated debris by pulling the plug or piping a blowdown valve to it -- no need to break the strainer apart. The closure plug is included.

Specifications

  • Type: Strainer
  • Size: 8"
  • Connection: Flanged
  • Body Material: Cast Iron
  • Pressure Class: Class 125
  • Max Pressure (WOG, psi): 200
  • Application: Domestic Water
  • Country of Origin: United States
  • Warranty: 1 Year Limited
  • MPN: 8 FP-SK-77F-FDA-OSY
  • Certifications: NSF-372
  • Lead-Free: Yes
  • Strainer Pattern: Wye
  • Screen Type: Perforated
  • Screen Perforation: 1/8"
  • Screen Material: 304 Stainless Steel
  • Blowoff / Drain Tapping: Yes
  • Blowoff Plug Included: Yes
  • Max Steam Pressure (WSP, psi): 125
  • Body Coating: FDA Epoxy

Product Information

SKUUPCCountry of OriginWarrantySpec SheetInstall Sheet
0113146 098268162516 United States 1 Year Limited DownloadDownload

Dimensions

Size Nominal 8" End Connection Flanged
Pressure Class Class 125 ——

Details

Series 77F-DI-FDA-125 Device Type Strainer
Lead Free Yes Body Material Cast Iron
Application Domestic Water Max Pressure PSI 200.0 psi
Options Strainer Pattern Wye
Screen Type Perforated Perforation Size 1/8"
Screen Material 304 Stainless Steel Blowoff Tapped Yes
Blowoff Plug Included Yes Max Steam Pressure PSI 125.0 psi
Body Coating FDA Epoxy ——

Certifications & Standards

NSF-372 —
