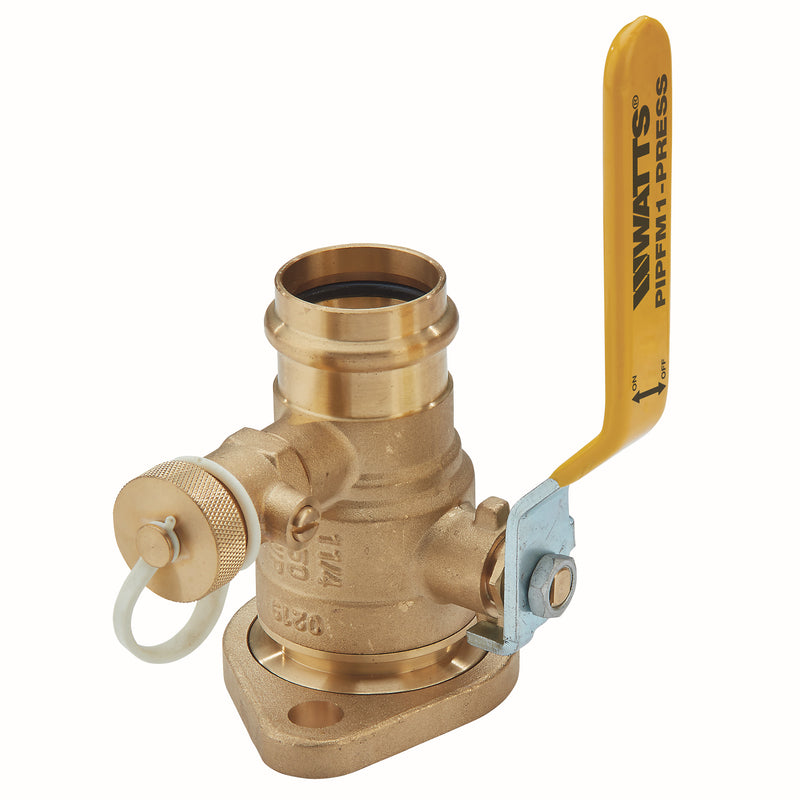

Watts PIPFM1-PRESS 3/4 Ball Valve, Brass, Flanged

The Watts PIPFM1-PRESS 3/4 is a 3/4" full port ball valve with Flanged connections. It features a brass body and a epdm seat. Rated to 600 psi and up to 406°F.

This 3/4 inch PIPFM1-Press is a full port purge isolation pump valve which features a swivel flange and press end connections. This flanges allows for the installer to position the handle of the valve in an optimal orientation for use.

Features

• Swivel Flange
• Lever Handle
• Press Connection
• Leaded Valve

Common Questions

Is this full port or standard port?

Full port. The ball bore matches the 3/4" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.

Can I use this on natural gas or propane?

No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.

Is this rated for potable water?

No. This is a leaded model and cannot be installed in US potable-water systems. Watts builds a lead-free (LF-prefix) equivalent for potable service.

Specifications

• Type: Ball
• Size: 3/4"
• Inlet Size: 3/4"
• Outlet Size: 3/4"
• Connection: Flanged
• Body Material: Brass
• Seat / Seal Material: EPDM
• Max Pressure (psi): 600
• Port Style: Full
• Ways: 2-Way
• Pack Quantity: 12
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: PIPFM1-PRESS 3/4
• Temperature: up to 406°F
• Lead-Free: No
• Blowout-Proof Stem: Yes
• Handle Type: Lever
• Actuation: Manual
• Fuel Gas Rated: No
• Integral Drain / Waste Port: Yes
