Specifications
Description

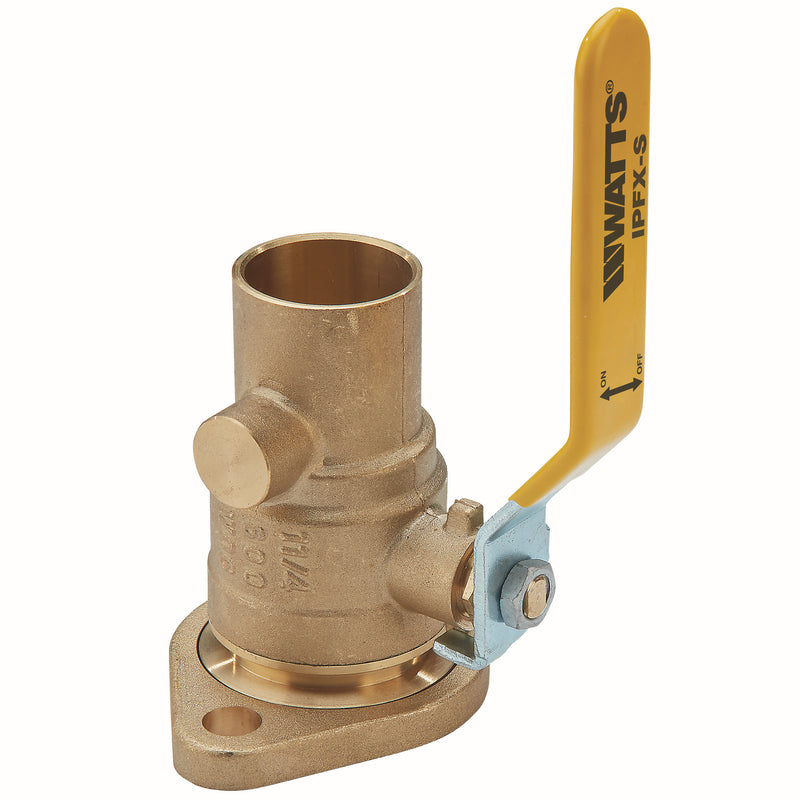

The Watts IPFX-S 1 1/2 is a 1-1/2" full port ball valve with Sweat connections. It features a epdm seat. Rated to 600 psi.
This 1 1/2 inch IPFX-S is a full port isolation pump valve which features a swivel flange and solder end connections. This flanges allows for the installer to position the handle of the valve in an optimal orientation for use.
Features
- Swivel Flange
- Lever Handle
- Solder Connection
- Leaded Valve
Common Questions
- Is this full port or standard port?
- Full port. The ball bore matches the 1-1/2" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.
- Can I use this on natural gas or propane?
- No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
Specifications
- Type: Ball
- Size: 1-1/2"
- Inlet Size: 1-1/2"
- Outlet Size: 1-1/2"
- Connection: Sweat
- Seat / Seal Material: EPDM
- Max Pressure (psi): 600
- Port Style: Full
- Ways: 2-Way
- Pack Quantity: 6
- Country of Origin: China
- Warranty: 1 Year Limited
- MPN: IPFX-S 1 1/2
- Lead-Free: No
- Handle Type: Lever
- Actuation: Manual
- Fuel Gas Rated: No
- Integral Drain / Waste Port: No
Product Information
| SKU | UPC | Country of Origin | Warranty | Spec Sheet |
|---|---|---|---|---|
| 0069013 | 098268186116 | China | 1 Year Limited | Download |
Dimensions
| Size Nominal | 1-1/2" | Inlet Size | 1-1/2" |
| Outlet Size | 1-1/2" | End Connection | Sweat |
Details
| Series | IPFX | Device Type | Ball |
| Seat Material | EPDM | Port Style | Full |
| Max Pressure PSI | 600.0 psi | Pack Qty | 6 |
| Valve Ways | 2-Way | Handle Type | Lever |
| Actuation | Manual | — | — |
Compare with similar products
| Port Style | Full
| Full
| Full
| Full
| Full
| — |
| Valve Ways | 2-Way
| 2-Way
| 2-Way
| 2-Way
| 2-Way
| 2-Way
|
| Body Construction | — | 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
| 2-Piece
|
| Ball Material | — | Stainless Steel
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
| Chrome-Plated Brass
|
| Blowout Proof Stem | — | Yes | Yes | Yes | Yes | Yes |
| Handle Type | Lever
| Lever
| Lever
| Lever
| Lever
| Lever
|
| Actuation | Manual
| Manual
| Manual
| Manual
| Manual
| Manual
|
| WSP PSI | — | 150.0 psi | 150.0 psi | — | — | — |
| Series | IPFX
| LFB6090-SS
| LFFBV-3C
| LFFBV-PEX-F1960
| LFFBV-PEX-F1960
| LFFBV-PEX-F1960
|
| Country Of Origin | China
| China
| China
| China
| China
| China
|
| Warranty | 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
| 1 Year Limited
|
| Spec Sheet | ||||||
| Install Sheet | — | — | — | |||
| Device Type | Ball
| Ball
| Ball
| Ball
| Ball
| Ball
|
| Size Nominal | 1-1/2"
| 3/4"
| 2"
| 1-1/4"
| 1-1/2"
| 1"
|
| Inlet Size | 1-1/2"
| 3/4"
| 2"
| 1-1/4"
| 1-1/2"
| 1"
|
| Outlet Size | 1-1/2"
| 3/4"
| 2"
| 1-1/4"
| 1-1/2"
| 1"
|
| Lead Free | — | Yes | Yes | Yes | Yes | Yes |
| End Connection | Sweat
| Sweat
| Sweat
| PEX
| PEX
| PEX
|
| Body Material | — | Bronze
| Brass
| Brass
| Brass
| Brass
|
| Seat Material | EPDM
| PTFE
| PTFE
| EPDM
| EPDM
| EPDM
|
| Application | — | — | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Pressure PSI | 600.0 psi | 600.0 psi | 600.0 psi | 160.0 psi | 160.0 psi | 160.0 psi |
| Max Temp °F | — | 400.0 °F | 400.0 °F | — | — | — |
| Certifications | — | NSF-61, NSF-372
| UL, FM, NSF-61
| NSF-61, NSF-372
| NSF-61, NSF-372
| NSF-61, NSF-372
|
| Pack Qty | 6
| 48
| 6
| 16
| 16
| 24
|
| Min Temp °F | — | 0.0 °F | 0.0 °F | — | — | — |
