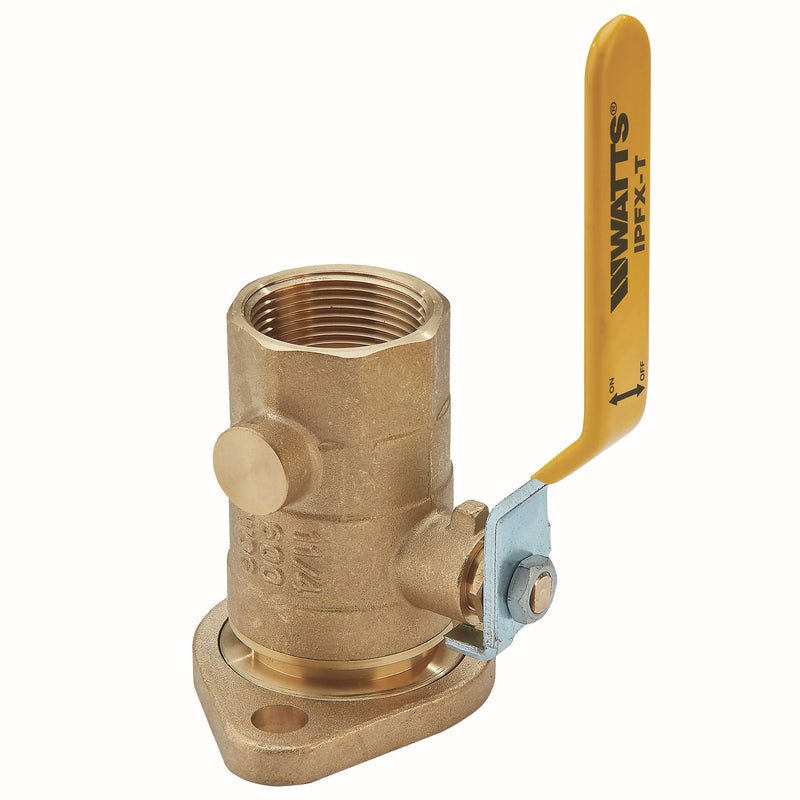

The Watts IPFX-T 2 is a 2" full port ball valve with Flanged connections. It features a epdm seat. Rated to 600 psi.
This 2 inch IPFX-T is a full port isolation pump valve which features a swivel flange and threaded end connections. This flanges allows for the installer to position the handle of the valve in an optimal orientation for use.
Features
- Swivel Flange
- Lever Handle
- Threaded Connection
- Leaded Valve
Common Questions
- Is this full port or standard port?
- Full port. The ball bore matches the 2" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.
- Can I use this on natural gas or propane?
- No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.
Specifications
-
Type: Ball
-
Size: 2"
-
Inlet Size: 2"
-
Outlet Size: 2"
-
Connection: Flanged
-
Seat / Seal Material: EPDM
-
Max Pressure (psi): 600
-
Port Style: Full
-
Ways: 2-Way
-
Pack Quantity: 6
-
Country of Origin: China
-
Warranty: 1 Year Limited
-
MPN: IPFX-T 2
-
Lead-Free: No
-
Handle Type: Lever
-
Actuation: Manual
-
Fuel Gas Rated: No
-
Integral Drain / Waste Port: No
