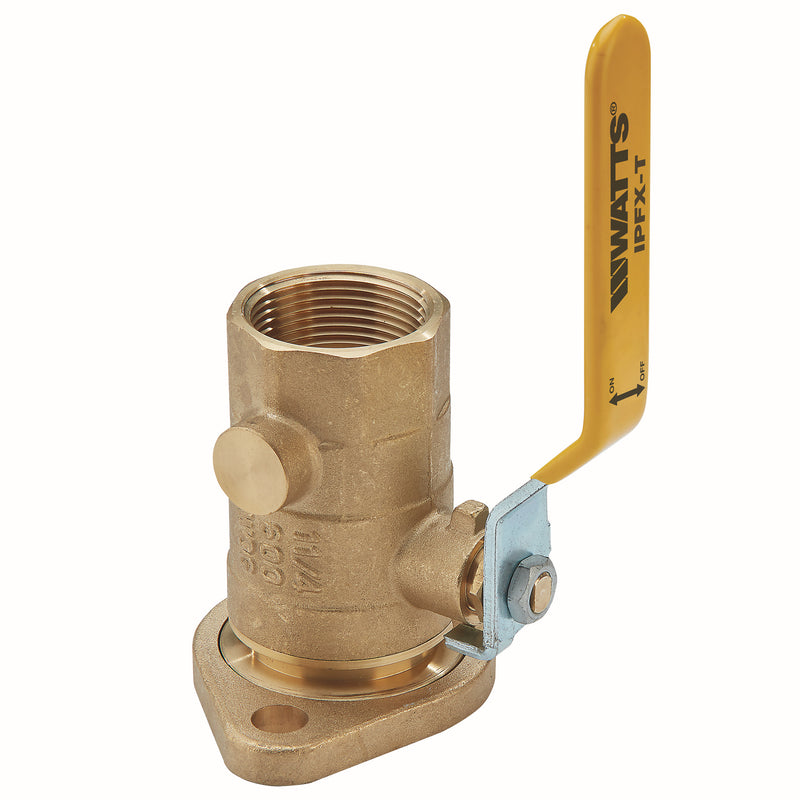

Watts IPFX-T 1 1/4 Ball Valve, Flanged

The Watts IPFX-T 1 1/4 is a 1-1/4" full port ball valve with Flanged connections. It features a epdm seat. Rated to 600 psi.

This 1 1/4 inch IPFX-T is a full port isolation pump valve which features a swivel flange and threaded end connections. This flanges allows for the installer to position the handle of the valve in an optimal orientation for use.

Features

• Swivel Flange
• Lever Handle
• Threaded Connection
• Leaded Valve

Common Questions

Is this full port or standard port?

Full port. The ball bore matches the 1-1/4" pipe ID, so the valve adds almost no restriction — the right choice for pump suction, main shutoffs, and any run where you cannot give up head.

Can I use this on natural gas or propane?

No. This valve carries no fuel-gas listing, and code requires an ANSI Z21.15 / CSA listed valve for natural gas or LP. Use a Watts GBV series gas ball valve instead.

Specifications

• Type: Ball
• Size: 1-1/4"
• Inlet Size: 1-1/4"
• Outlet Size: 1-1/4"
• Connection: Flanged
• Seat / Seal Material: EPDM
• Max Pressure (psi): 600
• Port Style: Full
• Ways: 2-Way
• Pack Quantity: 12
• Country of Origin: China
• Warranty: 1 Year Limited
• MPN: IPFX-T 1 1/4
• Lead-Free: No
• Handle Type: Lever
• Actuation: Manual
• Fuel Gas Rated: No
• Integral Drain / Waste Port: No
