Watts A2C-SC-WB 1/2 Strainer, Hose

The Watts A2C-SC-WB 1/2 is a IntelliFlow automatic washing machine shutoff valve with Hose Thread (GHT) outlets. It features a epdm seat. Rated to 150 psi and up to 180°F.

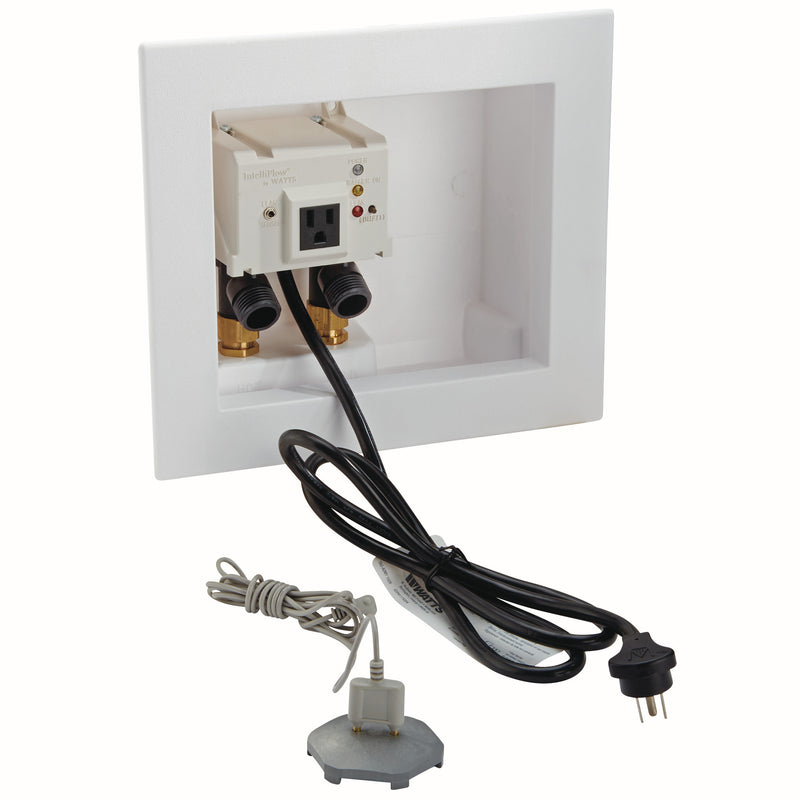

The A2C-SC-WB IntelliFlow® washing machine smart water shutoff senses your washing machine’s current flow and immediately shuts off the water supply if an inlet hose bursts. Simply scan the QR code on your IntelliFlow, follow the prompts to register it online and connect it to your local WiFi network to enable real-time text and email alerts. This model comes with a wall box for even easier installation. The IntelliFlow valve only allows water to flow into the washing machine when electric current indicates the machine is in use and automatically closes water inlet valves when a water leak is detected. Including an electrical three-prong outlet to receive a washing machine power cable, wall box, leak sensor, a power cord and a replaceable internal strainer screen. Maximum Pressure: 150psi (10 bar). A burst washing machine hose can discharge 500 gallons of water in one hour, causing catastrophic damage to homes and businesses. Install peace of mind with IntelliFlow.

Features

• Automated flood detection with real-time text and email alerts
• Continuously monitors for the presence of water behind a washing machine
• Floor-mounted water leak sensor that automatically shuts off water supply to washer
• Optional A-2 IntelliTimer allows use with 220 VAC powered washing machine or combination washer/dryer
• Includes: Strainer

Common Questions

What outlet does this have?

A 3/4 in male garden-hose thread (MGHT) outlet — it takes a standard garden hose or washing machine hose directly, with no adapter.

Does this actually shut the water off by itself if a hose bursts?

Yes. The IntelliFlow senses the washing machine's electrical current and only opens the hot and cold inlets while the machine is actually running — so the hoses sit unpressurised the rest of the week, which is when most of them burst. Its floor-mounted leak sensor closes both inlets on contact with water. Rated to 150 psi. A burst hose can put 500 gallons an hour onto the floor; this is the part that stops that.

Specifications

• Type: Strainer
• Connection: Hose
• Seat / Seal Material: EPDM
• Max Pressure (psi): 150
• Pack Quantity: 4
• Country of Origin: United States
• Warranty: 1 Year Limited
• MPN: A2C-SC-WB 1/2
• Temperature: up to 180°F
• Certifications: UL
• Lead-Free: No
• Outlet Connection: Hose Thread (GHT)
• Outlets: 2
• Automatic Shutoff: Yes
• Leak Sensor: Yes
• Includes: Leak Sensor;Power Cord;Strainer;Wall Box
• Hot & Cold Rated: Yes
• Contractor (Bulk) Pack: No
