Specifications
Description

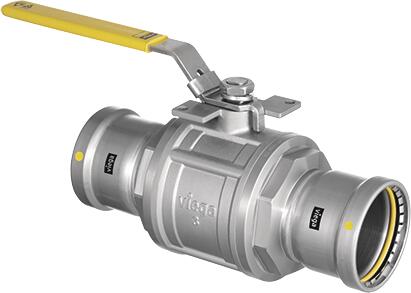

The Viega 86845 is a 3" ball valve from Viega's MegaPressG system with Press x Press ends for steel pipe (IPS sizes). It features a carbon steel body. Rated to -40°F to 180°F.
Features
- Smart Connect Technology
- For use with Sch. 5 to Sch. 40 carbon steel pipe, natural gas applications
- Carbon steel
- Press connection
- Full port
- Components HNBR sealing elements, lockable metal handle, ISO5211 mounting plate
Common Questions
- What pipe and press tool does this valve need?
- It installs with a MegaPress XL press jaw or ring, on steel pipe (IPS sizes).
- Which sealing element is in the press ends?
- The press connections seal with HNBR sealing elements, which Viega rates from -40°F to 180°F.
- Can this valve be used on fuel gas?
- Yes. It belongs to Viega's MegaPressG line, the MegaPress system for fuel gas, with HNBR sealing elements.
Specifications
- Type: Ball Valve
- Size: 3"
- Connection: Press
- Body Material: Carbon steel
- Application: Gas
- Country of Origin: China
- MPN: 86845
- Temperature: -40°F to 180°F
- Press Profile: MegaPress XL
- Size Basis: IPS
- Sealing Element: HNBR
- For Use On: Steel
- End Connections: Press x Press
- Fuel Gas Rated: Yes
- Actuator Mounting: ISO 5211
- Port Style: Full
Product Information
| SKU | Country of Origin |
|---|---|
| 86845 | China |
Dimensions
| Size Nominal | 3" | End Connection | Press |
Details
| Series | MegaPressG | Device Type | Ball Valve |
| Body Material | Carbon steel | Application | Gas |
| Port Style | Full | Max Temp °F | 180.0 °F |
| Min Temp °F | -40.0 °F | Actuator Mount | ISO 5211 |
| Gas Rated | Yes | Work material | Steel |
| End combination | Press x Press | — | — |
Compare with similar products
| Port Style | Full
| Full
| Full
| Full
| — | — |
| Ball Material | — | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Gas Rated | Yes | Yes | Yes | Yes | Yes | Yes |
| Series | MegaPressG
| MegaPressG
| MegaPressG
| MegaPressG
| MegaPressG
| MegaPressG
|
| Country Of Origin | China
| Germany
| Germany
| Germany
| Germany
| Germany
|
| Device Type | Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
|
| Size Nominal | 3"
| 2"
| 1-1/4"
| 1-1/2"
| 2"
| 1-1/2"
|
| End Connection | Press
| Press
| Press
| Press
| Press
| Press
|
| Body Material | Carbon steel
| Bronze, carbon steel
| Bronze, carbon steel
| Bronze, carbon steel
| Bronze, carbon steel
| Bronze, carbon steel
|
| Application | Gas
| Gas
| Gas
| Gas
| Gas
| Gas
|
| Max Temp °F | 180.0 °F | 180.0 °F | 180.0 °F | 180.0 °F | 180.0 °F | 180.0 °F |
| Min Temp °F | -40.0 °F | -40.0 °F | -40.0 °F | -40.0 °F | -40.0 °F | -40.0 °F |
