Specifications
Description

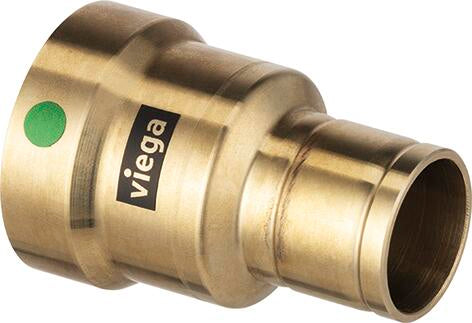

The Viega MegaPress transition coupling (model 4813.4ZL, order code 76600) has a 2" Press x 2" FTG (CTS) port configuration and is made for transitioning between IPS sized pipe and CTS sized tube. It features a silicium bronze body. Rated to 0°F to 250°F. This model is certified lead-free for potable-water installations.
Features
- Zero Lead, Smart Connect Technology
- For transitioning between IPS sized pipe and CTS sized tube
- Silicon bronze
- Press connection, CTS street
- Components EPDM sealing element, grip ring, separator ring
Common Questions
- Which pipe does this fitting fit?
- This MegaPress fitting is made for transitioning between IPS sized pipe and CTS sized tube. It transitions between CTS-sized and IPS-sized ends; check each port against the pipe it joins.
- Which press tool and jaw do I need?
- Press it with jaws or rings made for the MegaPress profile. A jaw made for a different profile will not make a warrantable joint.
- What temperature and pressure is it rated for?
- It seals with a factory-installed EPDM sealing element, rated 0°F to 250°F (Viega seals and gaskets data). Viega's application chart rates this system to 200 psi.
- Can it be used on drinking water?
- Viega's application chart does not list MegaPress for potable water. For drinking water use ProPress copper, ProPress 316 or MegaPress 316 with an EPDM element.
- How do I find a joint that was not pressed?
- Smart Connect technology: an unpressed connection leaks during a low-pressure test, so a missed press is found before the system goes into service.
Specifications
- Size (Run): 2"
- Connection: Press
- Body Material: Silicium bronze
- Country of Origin: Germany
- MPN: 76600
- Temperature: 0°F to 250°F
- Lead-Free: Yes
- Fitting Type: Transition Coupling
- Port Configuration: 2" Press x 2" FTG (CTS)
- End Connections: Press x Street
- Size Basis (CTS / IPS): CTS x IPS
- Sealing Element: EPDM
- Press Profile: MegaPress
- Max Operating Pressure (psi): 200
Product Information
| SKU | Country of Origin |
|---|---|
| 76600 | Germany |
Dimensions
| Size Nominal | 2" | End Connection | Press |
Details
| Series | MegaPress | Lead Free | Yes |
| Body Material | Silicium bronze | Max Temp °F | 250.0 °F |
| Min Temp °F | 0.0 °F | Operating pressure max psi | 200.0 PSI |
| Configuration | 2" Press x 2" FTG (CTS) | End combination | Press x Street |
| Fitting type | Transition Coupling | — | — |
Compare with similar products
| Series | MegaPress
| MegaPress
| MegaPress
| MegaPress
| MegaPress
| MegaPress
|
| Country Of Origin | Germany
| Germany
| Germany
| United States
| United States
| United States
|
| Size Nominal | 2"
| 3/4"
| 1/2"
| 1/2"
| 1"
| 3/4"
|
| End Connection | Press
| Press
| Press
| Press
| Press
| Press
|
| Body Material | Silicium bronze
| Carbon Steel
| Carbon Steel
| Carbon Steel
| Carbon Steel
| Carbon Steel
|
| Max Temp °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F |
| Pack Qty | — | 10
| 10
| 10
| 5
| 10
|
| Min Temp °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F |
