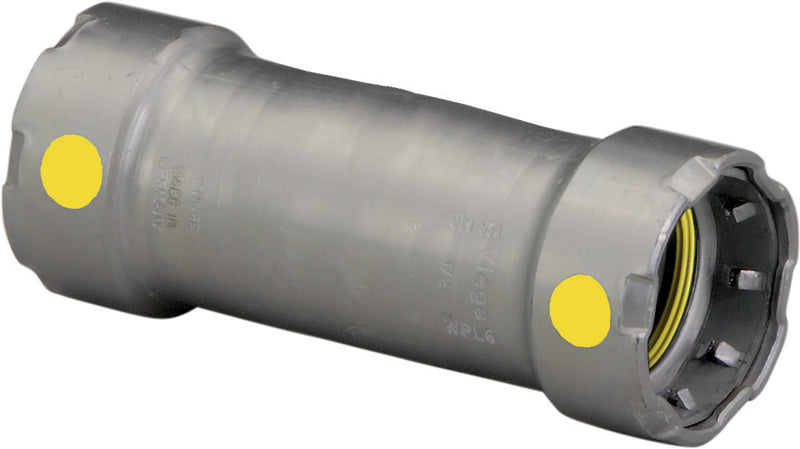

The Viega MegaPressG extended coupling, no stop (model 6615.3, order code 25096) has a 2" Press x 2" Press port configuration and is made for use with Sch. 10 to Sch. 40 carbon steel pipe. It features a carbon steel body. Rated to -40°F to 180°F.
Features
- No stop
- Smart Connect Technology
- For use with Sch. 10 to Sch. 40 carbon steel pipe
- Carbon steel, zinc-nickel coating
- Press connection
- Components HNBR sealing elements, grip rings, separator rings
Common Questions
- Which pipe does this fitting fit?
- This MegaPressG fitting is made for use with Sch. 10 to Sch. 40 carbon steel pipe. It is IPS sized: an CTS pipe of the same nominal size has a different outside diameter and will not seal in it.
- Which press tool and jaw do I need?
- Press it with jaws or rings made for the MegaPress profile. A jaw made for a different profile will not make a warrantable joint.
- What temperature and pressure is it rated for?
- It seals with a factory-installed HNBR sealing element, rated -40°F to 180°F (Viega seals and gaskets data). Viega rates MegaPressG to 125 psi for fuel gas.
- Is it approved for fuel gas?
- Yes. MegaPressG with its HNBR sealing element is Viega's fuel-gas press system, rated to 125 psi for natural gas and propane per Viega's application chart.
- How do I find a joint that was not pressed?
- Smart Connect technology: an unpressed connection leaks during a low-pressure test, so a missed press is found before the system goes into service.
Specifications
-
Size (Run): 2"
-
Connection: Press
-
Body Material: Carbon Steel
-
Application: Gas
-
Country of Origin: Germany
-
MPN: 25096
-
Temperature: -40°F to 180°F
-
Fitting Type: Coupling
-
Port Configuration: 2" Press x 2" Press
-
End Connections: Press x Press
-
Size Basis (CTS / IPS): IPS
-
Sealing Element: HNBR
-
Press Profile: MegaPress
-
For Use On: Steel
-
Max Operating Pressure (psi): 125
-
Coating: Zinc-Nickel
