Specifications
Description

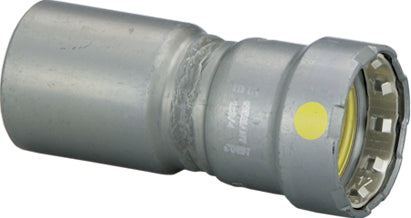

The Viega MegaPressG reducer (model 6615.1, order code 26046) has a 2" FTG (IPS) x 1-1/2" Press port configuration and is made for use with Sch. 10 to Sch. 40 carbon steel pipe. It features a carbon steel body. Rated to -40°F to 180°F.
Features
- Smart Connect Technology
- For use with Sch. 10 to Sch. 40 carbon steel pipe
- Carbon steel, zinc-nickel coating
- Street, press connection
- Components HNBR sealing element, grip ring, separator ring
Common Questions
- Which pipe does this fitting fit?
- This MegaPressG fitting is made for use with Sch. 10 to Sch. 40 carbon steel pipe. It is IPS sized: an CTS pipe of the same nominal size has a different outside diameter and will not seal in it.
- Which press tool and jaw do I need?
- Press it with jaws or rings made for the MegaPress profile. A jaw made for a different profile will not make a warrantable joint.
- What temperature and pressure is it rated for?
- It seals with a factory-installed HNBR sealing element, rated -40°F to 180°F (Viega seals and gaskets data). Viega rates MegaPressG to 125 psi for fuel gas.
- Is it approved for fuel gas?
- Yes. MegaPressG with its HNBR sealing element is Viega's fuel-gas press system, rated to 125 psi for natural gas and propane per Viega's application chart.
- How do I find a joint that was not pressed?
- Smart Connect technology: an unpressed connection leaks during a low-pressure test, so a missed press is found before the system goes into service.
Specifications
- Size (Run): 2"
- Connection: Press
- Body Material: Carbon Steel
- Application: Gas
- Country of Origin: Germany
- MPN: 26046
- Temperature: -40°F to 180°F
- Fitting Type: Reducer
- Port Configuration: 2" FTG (IPS) x 1-1/2" Press
- End Connections: Press x Street
- Size Basis (CTS / IPS): IPS
- Sealing Element: HNBR
- Press Profile: MegaPress
- For Use On: Steel
- Max Operating Pressure (psi): 125
- Coating: Zinc-Nickel
Product Information
| SKU | Country of Origin |
|---|---|
| 26046 | Germany |
Dimensions
| Size Nominal | 2" | End Connection | Press |
Details
| Series | MegaPressG | Body Material | Carbon Steel |
| Application | Gas | Max Temp °F | 180.0 °F |
| Min Temp °F | -40.0 °F | Coating | Zinc-Nickel |
| Operating pressure max psi | 125.0 PSI | Work material | Steel |
| Configuration | 2" FTG (IPS) x 1-1/2" Press | End combination | Press x Street |
| Fitting type | Reducer | — | — |
Compare with similar products
| Series | MegaPressG
| MegaPressG
| MegaPressG
| MegaPressG
| MegaPressG
| MegaPressG
|
| Country Of Origin | Germany
| Germany
| United States
| United States
| United States
| United States
|
| Size Nominal | 2"
| 2"
| 1-1/4"
| 1-1/2"
| 1-1/4"
| 1-1/4"
|
| End Connection | Press
| Press
| Press
| Press
| Press
| Press
|
| Body Material | Carbon Steel
| Carbon Steel
| Carbon Steel
| Carbon Steel
| Carbon Steel
| Carbon Steel
|
| Application | Gas
| Gas
| Gas
| Gas
| Gas
| Gas
|
| Max Temp °F | 180.0 °F | 180.0 °F | 180.0 °F | 180.0 °F | 180.0 °F | 180.0 °F |
| Min Temp °F | -40.0 °F | -40.0 °F | -40.0 °F | -40.0 °F | -40.0 °F | -40.0 °F |
