Specifications
Description

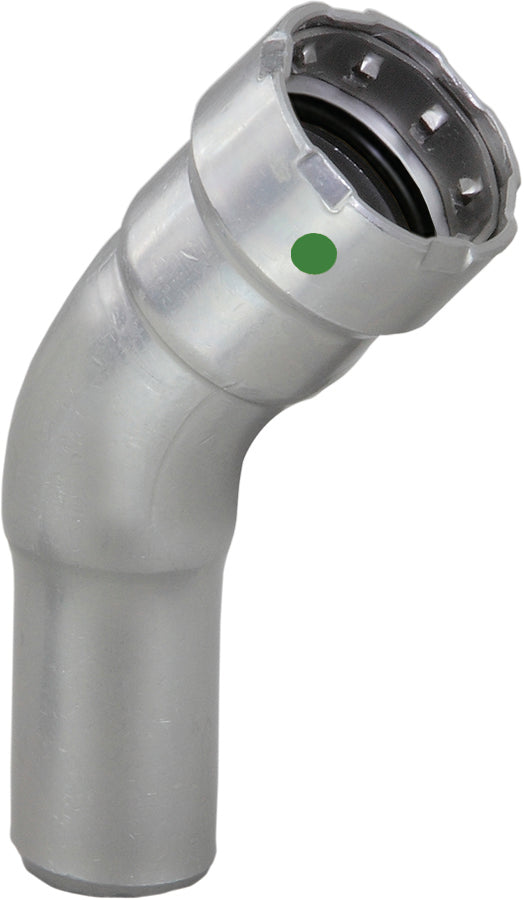

The Viega MegaPress 45° street elbow (model 4826.1, order code 26100) has a 1/2" Press x 1/2" FTG (IPS) port configuration and is made for use with Sch. 5 to Sch. 40 carbon steel pipe. It features a carbon steel body. Rated to 0°F to 250°F.
Sold as a pack of 10. This item ships only in multiples of 10, so the price shown is for all 10.
Features
- Smart Connect Technology
- For use with Sch. 5 to Sch. 40 carbon steel pipe
- Carbon steel, zinc-nickel coating
- Press connection, street
- Components EPDM sealing element, grip ring, separator ring
Common Questions
- Which pipe does this fitting fit?
- This MegaPress fitting is made for use with Sch. 5 to Sch. 40 carbon steel pipe. It is IPS sized: an CTS pipe of the same nominal size has a different outside diameter and will not seal in it.
- Which press tool and jaw do I need?
- Press it with jaws or rings made for the MegaPress profile. A jaw made for a different profile will not make a warrantable joint.
- What temperature and pressure is it rated for?
- It seals with a factory-installed EPDM sealing element, rated 0°F to 250°F (Viega seals and gaskets data). Viega's application chart rates this system to 200 psi.
- Can it be used on drinking water?
- Viega's application chart does not list MegaPress for potable water. For drinking water use ProPress copper, ProPress 316 or MegaPress 316 with an EPDM element.
- How do I find a joint that was not pressed?
- Smart Connect technology: an unpressed connection leaks during a low-pressure test, so a missed press is found before the system goes into service.
Specifications
- Size (Run): 1/2"
- Connection: Press
- Body Material: Carbon Steel
- Pack Quantity: 10
- Country of Origin: Germany
- MPN: 26100
- Temperature: 0°F to 250°F
- Fitting Type: Street Elbow
- Bend Angle (degrees): 45
- Port Configuration: 1/2" Press x 1/2" FTG (IPS)
- End Connections: Press x Street
- Size Basis (CTS / IPS): IPS
- Sealing Element: EPDM
- Press Profile: MegaPress
- For Use On: Steel
- Max Operating Pressure (psi): 200
- Coating: Zinc-Nickel
Product Information
| SKU | Country of Origin |
|---|---|
| 26100 | Germany |
Dimensions
| Size Nominal | 1/2" | End Connection | Press |
Details
| Series | MegaPress | Body Material | Carbon Steel |
| Max Temp °F | 250.0 °F | Pack Qty | 10 |
| Min Temp °F | 0.0 °F | Coating | Zinc-Nickel |
| Operating pressure max psi | 200.0 PSI | Work material | Steel |
| Bend angle | 45 | Configuration | 1/2" Press x 1/2" FTG (IPS) |
| End combination | Press x Street | Fitting type | Street Elbow |
Compare with similar products
| Series | MegaPress
| MegaPress
| MegaPress
| MegaPress
| MegaPress
| MegaPress
|
| Country Of Origin | Germany
| Germany
| Germany
| United States
| United States
| United States
|
| Size Nominal | 1/2"
| 3/4"
| 1/2"
| 1/2"
| 1"
| 3/4"
|
| End Connection | Press
| Press
| Press
| Press
| Press
| Press
|
| Body Material | Carbon Steel
| Carbon Steel
| Carbon Steel
| Carbon Steel
| Carbon Steel
| Carbon Steel
|
| Max Temp °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F |
| Pack Qty | 10
| 10
| 10
| 10
| 5
| 10
|
| Min Temp °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F |
