Specifications
Description

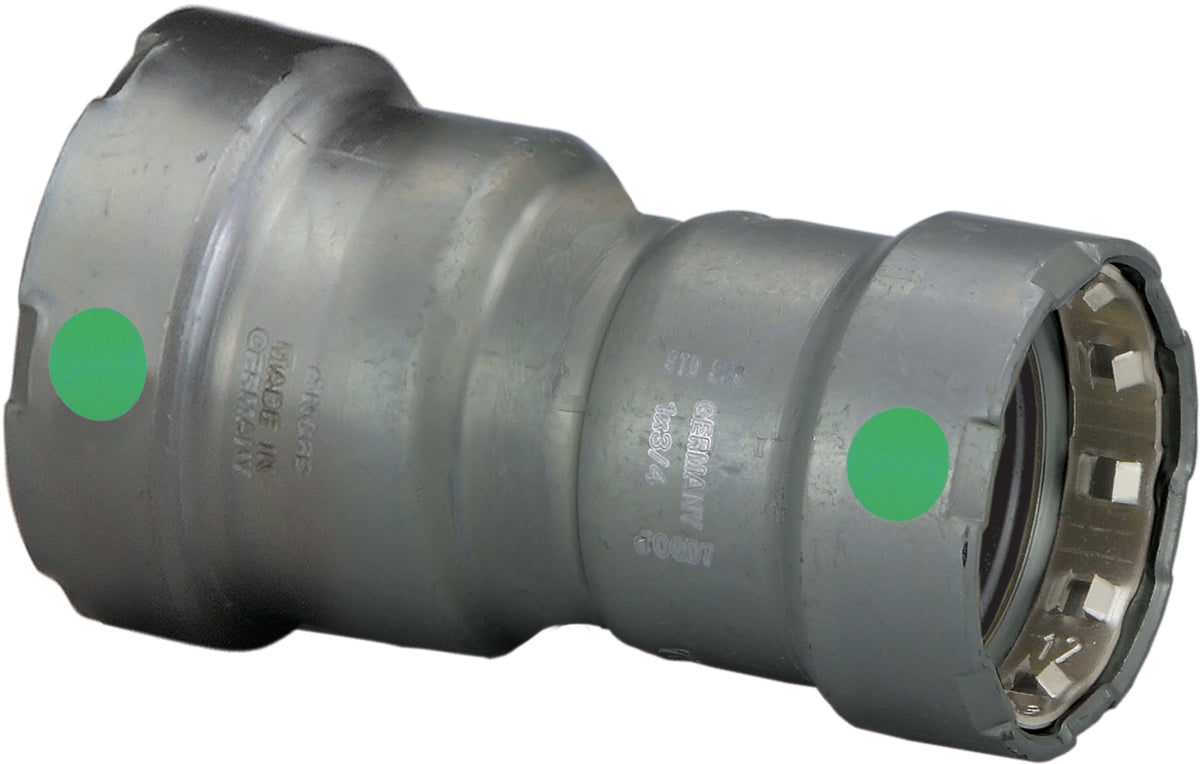

The Viega MegaPress reducer (model 4815.2, order code 25960) has a 2" Press x 1-1/4" Press port configuration and is made for use with Sch. 5 to Sch. 40 carbon steel pipe. It features a carbon steel body. Rated to 0°F to 250°F.
Features
- Smart Connect Technology
- For use with Sch. 5 to Sch. 40 carbon steel pipe
- Carbon steel, zinc-nickel coating
- Press connection
- Components EPDM sealing elements, grip rings, separator rings
Common Questions
- Which pipe does this fitting fit?
- This MegaPress fitting is made for use with Sch. 5 to Sch. 40 carbon steel pipe. It is IPS sized: an CTS pipe of the same nominal size has a different outside diameter and will not seal in it.
- Which press tool and jaw do I need?
- Press it with jaws or rings made for the MegaPress profile. A jaw made for a different profile will not make a warrantable joint.
- What temperature and pressure is it rated for?
- It seals with a factory-installed EPDM sealing element, rated 0°F to 250°F (Viega seals and gaskets data). Viega's application chart rates this system to 200 psi.
- Can it be used on drinking water?
- Viega's application chart does not list MegaPress for potable water. For drinking water use ProPress copper, ProPress 316 or MegaPress 316 with an EPDM element.
- How do I find a joint that was not pressed?
- Smart Connect technology: an unpressed connection leaks during a low-pressure test, so a missed press is found before the system goes into service.
Specifications
- Size (Run): 2"
- Connection: Press
- Body Material: Carbon Steel
- Country of Origin: Germany
- MPN: 25960
- Temperature: 0°F to 250°F
- Fitting Type: Reducer
- Port Configuration: 2" Press x 1-1/4" Press
- End Connections: Press x Press
- Size Basis (CTS / IPS): IPS
- Sealing Element: EPDM
- Press Profile: MegaPress
- For Use On: Steel
- Max Operating Pressure (psi): 200
- Coating: Zinc-Nickel
Product Information
| SKU | Country of Origin |
|---|---|
| 25960 | Germany |
Dimensions
| Size Nominal | 2" | End Connection | Press |
Details
| Series | MegaPress | Body Material | Carbon Steel |
| Max Temp °F | 250.0 °F | Min Temp °F | 0.0 °F |
| Coating | Zinc-Nickel | Operating pressure max psi | 200.0 PSI |
| Work material | Steel | Configuration | 2" Press x 1-1/4" Press |
| End combination | Press x Press | Fitting type | Reducer |
Compare with similar products
| Series | MegaPress
| MegaPress
| MegaPress
| MegaPress
| MegaPress
| MegaPress
|
| Country Of Origin | Germany
| Germany
| Germany
| United States
| United States
| United States
|
| Size Nominal | 2"
| 3/4"
| 1/2"
| 1/2"
| 1"
| 3/4"
|
| End Connection | Press
| Press
| Press
| Press
| Press
| Press
|
| Body Material | Carbon Steel
| Carbon Steel
| Carbon Steel
| Carbon Steel
| Carbon Steel
| Carbon Steel
|
| Max Temp °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F |
| Pack Qty | — | 10
| 10
| 10
| 5
| 10
|
| Min Temp °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F |
