Specifications
Description

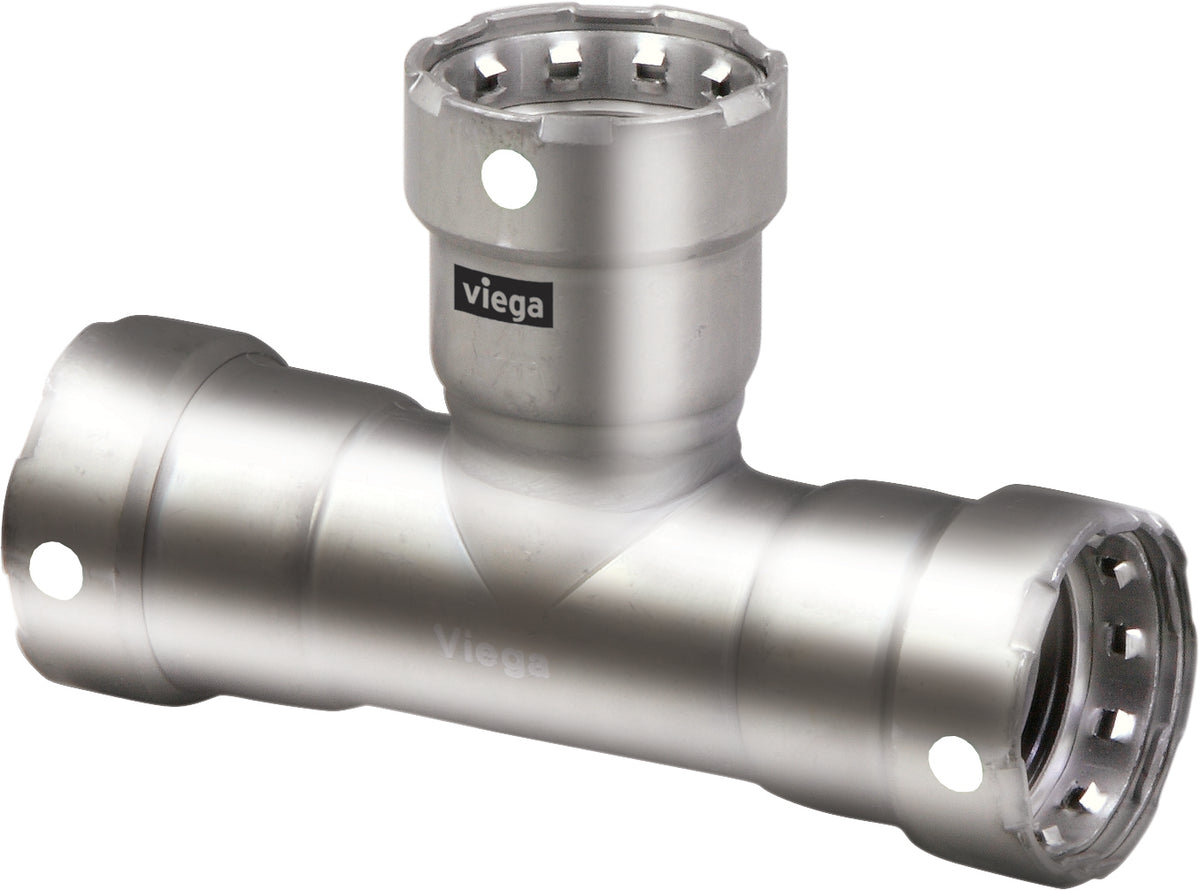

The Viega MegaPress 304 FKM tee (model 4118, order code 95140) has a 1" Press x 1" Press x 3/4" Press port configuration and is made for use with Sch. 5 to Sch. 40 stainless steel pipe. It features a stainless body. Rated to 14°F to 284°F.
Sold as a pack of 5. This item ships only in multiples of 5, so the price shown is for all 5.
Features
- Smart Connect Technology
- For use with Sch. 5 to Sch. 40 stainless steel pipe
- 304 stainless steel
- Press connection
- Components FKM sealing elements, grip rings, separator rings
Common Questions
- Which pipe does this fitting fit?
- This MegaPress 304 FKM fitting is made for use with Sch. 5 to Sch. 40 stainless steel pipe. It is IPS sized: an CTS pipe of the same nominal size has a different outside diameter and will not seal in it.
- Which press tool and jaw do I need?
- Press it with jaws or rings made for the MegaPress profile. A jaw made for a different profile will not make a warrantable joint.
- What temperature and pressure is it rated for?
- It seals with a factory-installed FKM sealing element, rated 14°F to 284°F (Viega seals and gaskets data). Viega's application chart rates this system to 200 psi.
- Can it be used on drinking water?
- Viega's application chart does not list MegaPress 304 FKM for potable water. For drinking water use ProPress copper, ProPress 316 or MegaPress 316 with an EPDM element.
- How do I find a joint that was not pressed?
- Smart Connect technology: an unpressed connection leaks during a low-pressure test, so a missed press is found before the system goes into service.
Specifications
- Size (Run): 1"
- Connection: Press
- Body Material: Stainless
- Pack Quantity: 5
- Country of Origin: Germany
- MPN: 95140
- Temperature: 14°F to 284°F
- Fitting Type: Tee
- Port Configuration: 1" Press x 1" Press x 3/4" Press
- End Connections: Press x Press x Press
- Size Basis (CTS / IPS): IPS
- Sealing Element: FKM
- Press Profile: MegaPress
- For Use On: Stainless Steel
- Max Operating Pressure (psi): 200
Product Information
| SKU | Country of Origin |
|---|---|
| 95140 | Germany |
Dimensions
| Size Nominal | 1" | End Connection | Press |
Details
| Series | MegaPress 304 FKM | Body Material | Stainless |
| Max Temp °F | 284.0 °F | Pack Qty | 5 |
| Min Temp °F | 14.0 °F | Operating pressure max psi | 200.0 PSI |
| Work material | Stainless Steel | Configuration | 1" Press x 1" Press x 3/4" Press |
| End combination | Press x Press x Press | Fitting type | Tee |
Compare with similar products
| Series | MegaPress 304 FKM
| ProPress 316
| ProPress 316
| ProPress 316
| MegaPress 316
| MegaPress 316
|
| Country Of Origin | Germany
| Germany
| Germany
| Germany
| Germany
| Germany
|
| Size Nominal | 1"
| 4"
| 2-1/2"
| 3"
| 1"
| 1-1/2"
|
| End Connection | Press
| Press
| Press
| Press
| Press
| Press
|
| Body Material | Stainless
| Stainless
| Stainless
| Stainless
| Stainless
| Stainless
|
| Application | — | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Temp °F | 284.0 °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F |
| Pack Qty | 5
| — | — | — | 5
| — |
| Min Temp °F | 14.0 °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F |
