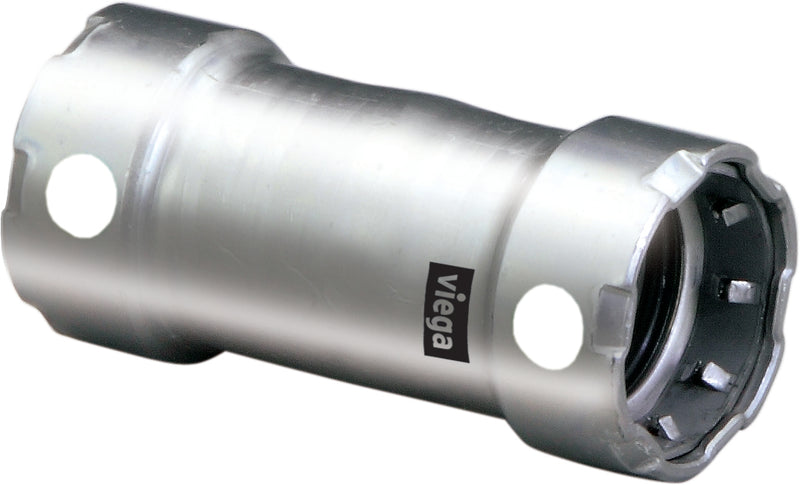

The Viega MegaPress 304 FKM coupling, no stop (model 4115.5, order code 95325) has a 1-1/2" Press x 1-1/2" Press port configuration and is made for use with Sch. 5 to Sch. 40 stainless steel pipe. It features a stainless body. Rated to 14°F to 284°F.
Features
- No stop
- Smart Connect Technology
- For use with Sch. 5 to Sch. 40 stainless steel pipe
- 304 stainless steel
- Press connection
- Components FKM sealing elements, grip rings, separator rings
Common Questions
- Which pipe does this fitting fit?
- This MegaPress 304 FKM fitting is made for use with Sch. 5 to Sch. 40 stainless steel pipe. It is IPS sized: an CTS pipe of the same nominal size has a different outside diameter and will not seal in it.
- Which press tool and jaw do I need?
- Press it with jaws or rings made for the MegaPress profile. A jaw made for a different profile will not make a warrantable joint.
- What temperature and pressure is it rated for?
- It seals with a factory-installed FKM sealing element, rated 14°F to 284°F (Viega seals and gaskets data). Viega's application chart rates this system to 200 psi.
- Can it be used on drinking water?
- Viega's application chart does not list MegaPress 304 FKM for potable water. For drinking water use ProPress copper, ProPress 316 or MegaPress 316 with an EPDM element.
- How do I find a joint that was not pressed?
- Smart Connect technology: an unpressed connection leaks during a low-pressure test, so a missed press is found before the system goes into service.
Specifications
-
Size (Run): 1-1/2"
-
Connection: Press
-
Body Material: Stainless
-
Country of Origin: Germany
-
MPN: 95325
-
Temperature: 14°F to 284°F
-
Fitting Type: Coupling
-
Port Configuration: 1-1/2" Press x 1-1/2" Press
-
End Connections: Press x Press
-
Size Basis (CTS / IPS): IPS
-
Sealing Element: FKM
-
Press Profile: MegaPress
-
For Use On: Stainless Steel
-
Max Operating Pressure (psi): 200
