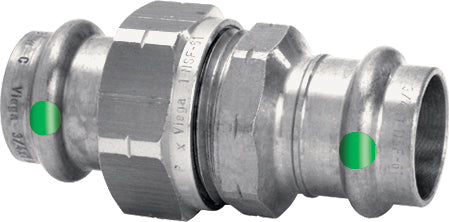

The Viega ProPress 316 union (model 4060, order code 81025) has a 1-1/2" Press x 1-1/2" Press port configuration and is made for use with Viega ProPress stainless tubing. It features a stainless body. Rated to 0°F to 250°F.
Features
- Smart Connect Technology
- For use with Viega ProPress stainless tubing
- 316 stainless steel
- Press connection
- Ground joint
- Components EPDM sealing elements
Common Questions
- Which pipe does this fitting fit?
- This ProPress 316 fitting is made for use with Viega ProPress stainless tubing. It is CTS sized: an IPS pipe of the same nominal size has a different outside diameter and will not seal in it.
- Which press tool and jaw do I need?
- Press it with jaws or rings made for the ProPress profile. A jaw made for a different profile will not make a warrantable joint.
- What temperature and pressure is it rated for?
- It seals with a factory-installed EPDM sealing element, rated 0°F to 250°F (Viega seals and gaskets data). Viega's application chart rates this system to 200 psi.
- Can it be used on drinking water?
- Yes. Viega's application chart lists ProPress 316 with the EPDM sealing element for potable water.
- How do I find a joint that was not pressed?
- Smart Connect technology: an unpressed connection leaks during a low-pressure test, so a missed press is found before the system goes into service.
Specifications
-
Size (Run): 1-1/2"
-
Connection: Press
-
Body Material: Stainless
-
Application: Domestic Water
-
Country of Origin: Germany
-
MPN: 81025
-
Temperature: 0°F to 250°F
-
Fitting Type: Union
-
Port Configuration: 1-1/2" Press x 1-1/2" Press
-
End Connections: Press x Press
-
Size Basis (CTS / IPS): CTS
-
Sealing Element: EPDM
-
Press Profile: ProPress
-
For Use On: Stainless Steel
-
Max Operating Pressure (psi): 200
