Specifications
Description

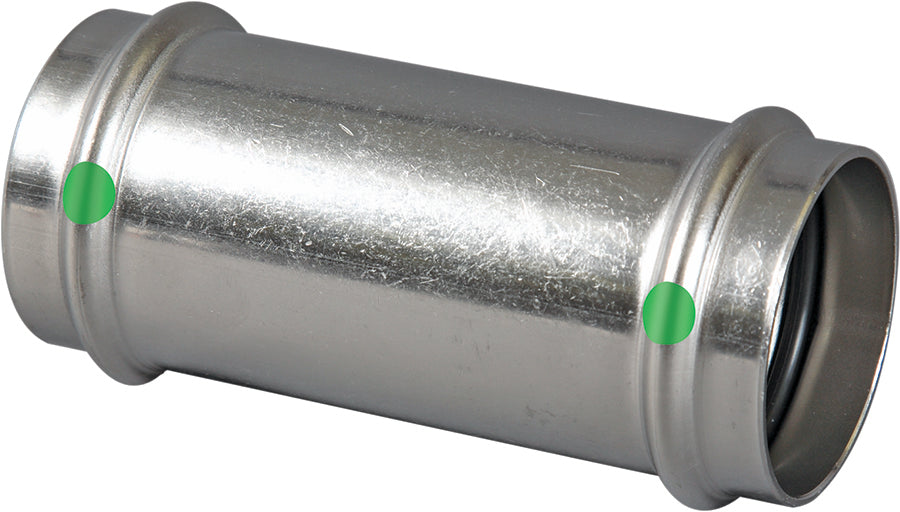

The Viega ProPress 316 coupling, no stop (model 4015.5, order code 80325) has a 1-1/4" Press x 1-1/4" Press port configuration and is made for use with Viega ProPress stainless tubing. It features a stainless body. Rated to 0°F to 250°F.
Features
- No stop
- Smart Connect Technology
- For use with Viega ProPress stainless tubing
- 316 stainless steel
- Press connection
- Components EPDM sealing elements
Common Questions
- Which pipe does this fitting fit?
- This ProPress 316 fitting is made for use with Viega ProPress stainless tubing. It is CTS sized: an IPS pipe of the same nominal size has a different outside diameter and will not seal in it.
- Which press tool and jaw do I need?
- Press it with jaws or rings made for the ProPress profile. A jaw made for a different profile will not make a warrantable joint.
- What temperature and pressure is it rated for?
- It seals with a factory-installed EPDM sealing element, rated 0°F to 250°F (Viega seals and gaskets data). Viega's application chart rates this system to 200 psi.
- Can it be used on drinking water?
- Yes. Viega's application chart lists ProPress 316 with the EPDM sealing element for potable water.
- How do I find a joint that was not pressed?
- Smart Connect technology: an unpressed connection leaks during a low-pressure test, so a missed press is found before the system goes into service.
Specifications
- Size (Run): 1-1/4"
- Connection: Press
- Body Material: Stainless
- Application: Domestic Water
- Country of Origin: Germany
- MPN: 80325
- Temperature: 0°F to 250°F
- Fitting Type: Coupling
- Port Configuration: 1-1/4" Press x 1-1/4" Press
- End Connections: Press x Press
- Size Basis (CTS / IPS): CTS
- Sealing Element: EPDM
- Press Profile: ProPress
- For Use On: Stainless Steel
- Max Operating Pressure (psi): 200
Product Information
| SKU | Country of Origin |
|---|---|
| 80325 | Germany |
Dimensions
| Size Nominal | 1-1/4" | End Connection | Press |
Details
| Series | ProPress 316 | Body Material | Stainless |
| Application | Domestic Water | Max Temp °F | 250.0 °F |
| Min Temp °F | 0.0 °F | Operating pressure max psi | 200.0 PSI |
| Work material | Stainless Steel | Configuration | 1-1/4" Press x 1-1/4" Press |
| End combination | Press x Press | Fitting type | Coupling |
