Specifications
Description

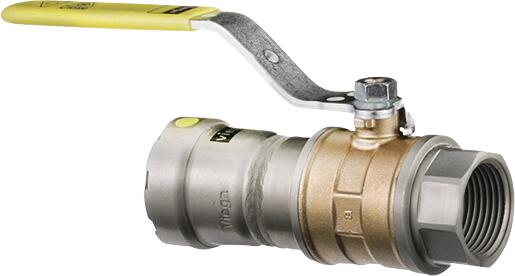

The Viega 30640 is a 1" ball valve from Viega's MegaPressG system with Press x FNPT ends for steel pipe (IPS sizes). It features a bronze, carbon steel body. Rated to -40°F to 180°F.
Features
- Smart Connect Technology
- For use with Sch. 5 to Sch. 40 carbon steel pipe, natural gas applications
- silicon bronze body, carbon steel press ends
- Press connection, female pipe thread
- Full port
- Components HNBR sealing element, lockable metal handle, stainless steel ball
Common Questions
- What pipe and press tool does this valve need?
- It installs with a MegaPress press jaw or ring, on steel pipe (IPS sizes).
- Which sealing element is in the press ends?
- The press connections seal with HNBR sealing elements, which Viega rates from -40°F to 180°F.
- Can this valve be used on fuel gas?
- Yes. It belongs to Viega's MegaPressG line, the MegaPress system for fuel gas, with HNBR sealing elements.
Specifications
- Type: Ball Valve
- Size: 1"
- Connection: Press
- Body Material: Bronze, carbon steel
- Application: Gas
- Country of Origin: Germany
- MPN: 30640
- Temperature: -40°F to 180°F
- Press Profile: MegaPress
- Size Basis: IPS
- Sealing Element: HNBR
- For Use On: Steel
- End Connections: Press x FNPT
- Port Configuration: 1" Press x 1" FNPT
- Fuel Gas Rated: Yes
- Ball Material: Stainless Steel
- Port Style: Full
Product Information
| SKU | Country of Origin |
|---|---|
| 30640 | Germany |
Dimensions
| Size Nominal | 1" | End Connection | Press |
Details
| Series | MegaPressG | Device Type | Ball Valve |
| Body Material | Bronze, carbon steel | Application | Gas |
| Port Style | Full | Max Temp °F | 180.0 °F |
| Min Temp °F | -40.0 °F | Ball Material | Stainless Steel |
| Gas Rated | Yes | Work material | Steel |
| Configuration | 1" Press x 1" FNPT | End combination | Press x FNPT |
Compare with similar products
| Port Style | Full
| Full
| Full
| Full
| — | — |
| Ball Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
| Stainless Steel
|
| Gas Rated | Yes | Yes | Yes | Yes | Yes | Yes |
| Series | MegaPressG
| MegaPressG
| MegaPressG
| MegaPressG
| MegaPressG
| MegaPressG
|
| Country Of Origin | Germany
| Germany
| Germany
| Germany
| Germany
| Germany
|
| Device Type | Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
|
| Size Nominal | 1"
| 2"
| 1-1/4"
| 1-1/2"
| 2"
| 1-1/2"
|
| End Connection | Press
| Press
| Press
| Press
| Press
| Press
|
| Body Material | Bronze, carbon steel
| Bronze, carbon steel
| Bronze, carbon steel
| Bronze, carbon steel
| Bronze, carbon steel
| Bronze, carbon steel
|
| Application | Gas
| Gas
| Gas
| Gas
| Gas
| Gas
|
| Max Temp °F | 180.0 °F | 180.0 °F | 180.0 °F | 180.0 °F | 180.0 °F | 180.0 °F |
| Min Temp °F | -40.0 °F | -40.0 °F | -40.0 °F | -40.0 °F | -40.0 °F | -40.0 °F |
