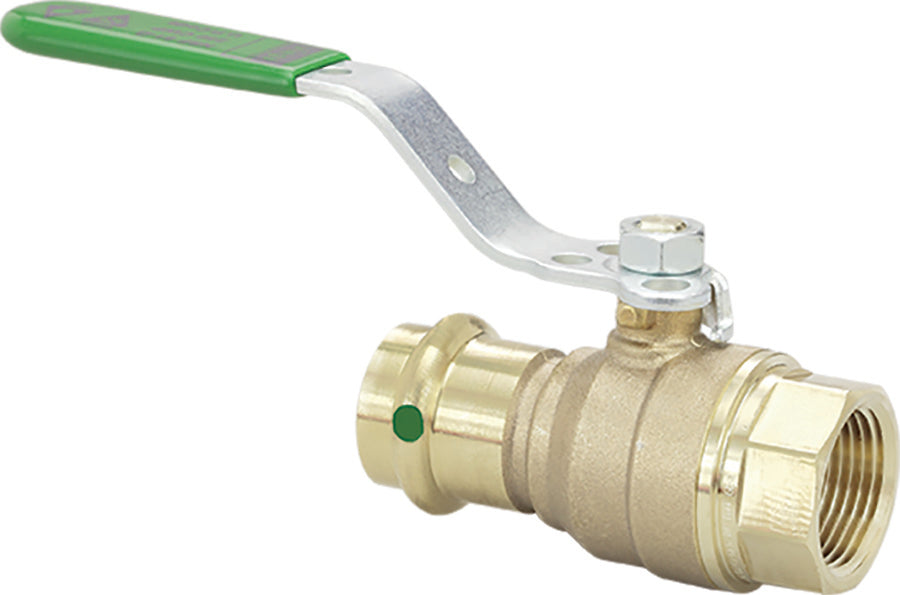

The Viega 79975 is a 3/4" zero-lead ball valve from Viega's ProPress system with Press x FNPT ends for copper tube (CTS sizes). It features a silicium bronze body. Rated to 0°F to 250°F. This model is certified lead-free for potable-water installations.
Features
- Smart Connect Technology, Zero Lead
- For potable water installations
- Silicon bronze
- Press connection, female pipe thread
- Full port
- Components Lockable metal handle, stainless steel ball, EPDM sealing element
Common Questions
- What pipe and press tool does this valve need?
- It installs with a ProPress press jaw or ring, on copper tube (CTS sizes).
- Which sealing element is in the press ends?
- The press connections seal with EPDM sealing elements, which Viega rates from 0°F to 250°F.
- Is this valve lead-free?
- Yes. Viega marks this model Zero Lead.
Specifications
- Type: Ball Valve
- Size: 3/4"
- Connection: Press
- Body Material: Silicium bronze
- Application: Domestic Water
- Country of Origin: Germany
- MPN: 79975
- Temperature: 0°F to 250°F
- Lead-Free: Yes
- Press Profile: ProPress
- Size Basis: CTS
- Sealing Element: EPDM
- For Use On: Copper
- End Connections: Press x FNPT
- Port Configuration: 3/4" Press x 3/4" FNPT
- Ball Material: Stainless Steel
- Port Style: Full
Product Information
| SKU | Country of Origin |
|---|---|
| 79975 | Germany |
Dimensions
| Size Nominal | 3/4" | End Connection | Press |
Details
| Series | ProPress | Device Type | Ball Valve |
| Lead Free | Yes | Body Material | Silicium bronze |
| Application | Domestic Water | Port Style | Full |
| Max Temp °F | 250.0 °F | Min Temp °F | 0.0 °F |
| Ball Material | Stainless Steel | Work material | Copper |
| Configuration | 3/4" Press x 3/4" FNPT | End combination | Press x FNPT |
Compare with similar products
| Port Style | Full
| Full
| Full
| Full
| Full
| Full
|
| Ball Material | Stainless Steel
| Stainless Steel
| Stainless Steel
| — | — | Stainless Steel
|
| Series | ProPress
| ProPress
| ProPress
| ProPress
| ProPress
| ProPress
|
| Country Of Origin | Germany
| Germany
| Germany
| Italy
| Italy
| Germany
|
| Device Type | Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
| Ball Valve
|
| Size Nominal | 3/4"
| 3/4"
| 1/2"
| 1/2"
| 3/4"
| 1"
|
| Lead Free | Yes | Yes | Yes | — | — | Yes |
| End Connection | Press
| Press
| Press
| Press
| Press
| Press
|
| Body Material | Silicium bronze
| Silicium bronze
| Silicium bronze
| Bronze, brass
| Bronze, brass
| Silicium bronze
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| Non-Potable Water
| Non-Potable Water
| Domestic Water
|
| Max Temp °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F |
| Min Temp °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F |
