Specifications
Description

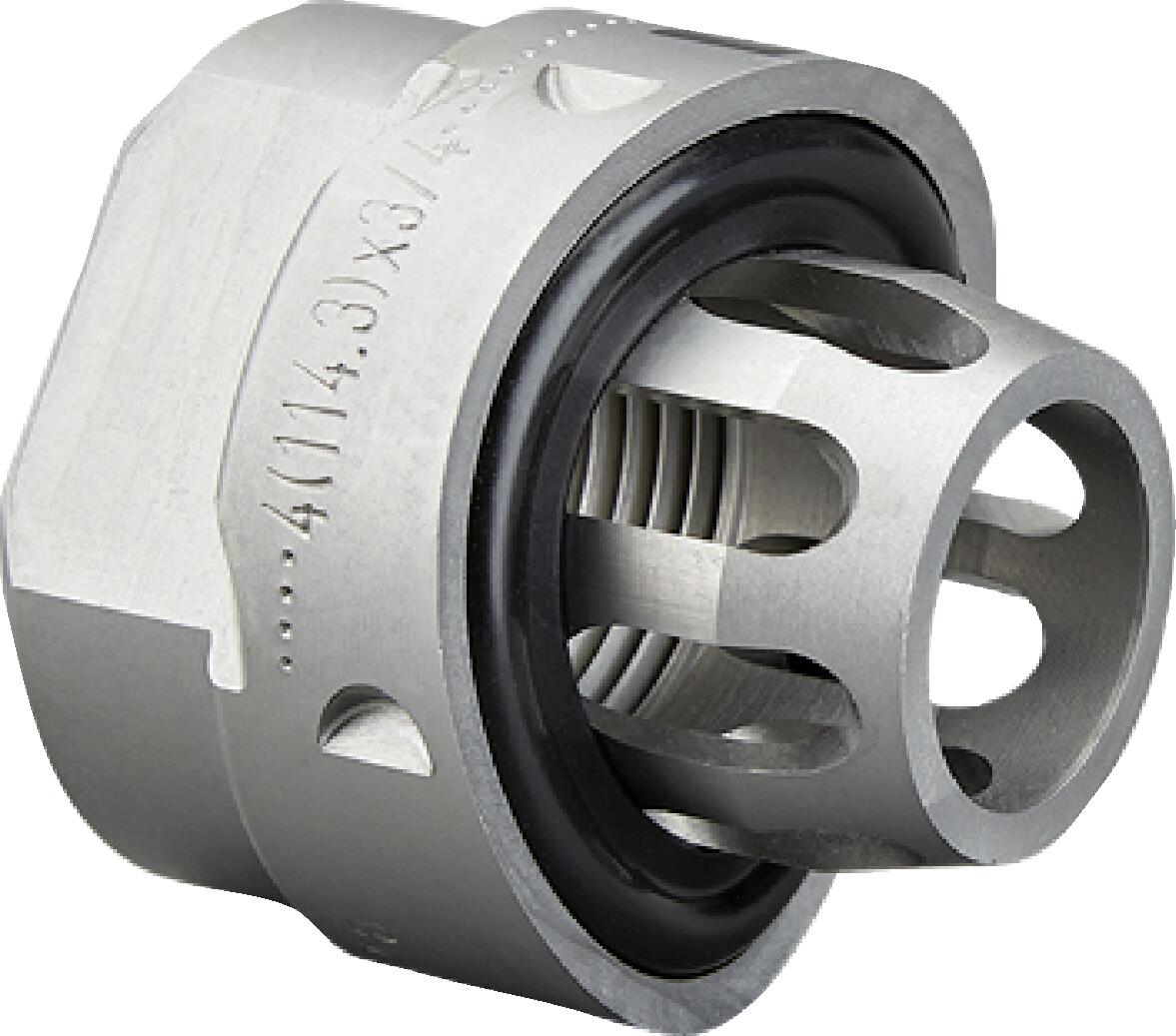

The Viega MegaPress press-in branch connector (model 4812.2, order code 26800) has a Press-In for 1-1/2" pipe x 3/4" FNPT port configuration and is made for use with Sch. 10 carbon steel pipe only. It features a carbon steel body. Rated to 14°F to 284°F.
Features
- For use with Sch. 10 carbon steel pipe only
- Carbon steel, zinc-nickel coating
- Press connection, female pipe thread
- Components FKM sealing element
Common Questions
- Which pipe does this fitting fit?
- This MegaPress fitting is made for use with Sch. 10 carbon steel pipe only. It is IPS sized: an CTS pipe of the same nominal size has a different outside diameter and will not seal in it.
- What temperature and pressure is it rated for?
- It seals with a factory-installed FKM sealing element, rated 14°F to 284°F (Viega seals and gaskets data).
- Can it be used on drinking water?
- Viega's application chart does not list MegaPress for potable water. For drinking water use ProPress copper, ProPress 316 or MegaPress 316 with an EPDM element.
Specifications
- Connection: Press
- Body Material: Carbon Steel
- Country of Origin: Germany
- MPN: 26800
- Temperature: 14°F to 284°F
- Fitting Type: Branch Connector
- Port Configuration: Press-In for 1-1/2" pipe x 3/4" FNPT
- End Connections: Press x FNPT
- Size Basis (CTS / IPS): IPS
- Sealing Element: FKM
- For Use On: Steel
- Coating: Zinc-Nickel
Product Information
| SKU | Country of Origin |
|---|---|
| 26800 | Germany |
Dimensions
| End Connection | Press | — | — |
Details
| Series | MegaPress | Body Material | Carbon Steel |
| Max Temp °F | 284.0 °F | Min Temp °F | 14.0 °F |
| Coating | Zinc-Nickel | Work material | Steel |
| Configuration | Press-In for 1-1/2" pipe x 3/4" FNPT | End combination | Press x FNPT |
| Fitting type | Branch Connector | — | — |
Compare with similar products
| Series | MegaPress
| MegaPress
| MegaPress
| MegaPress
| MegaPress
| MegaPress
|
| Country Of Origin | Germany
| Germany
| Germany
| United States
| United States
| United States
|
| Size Nominal | — | 3/4"
| 1/2"
| 1/2"
| 1"
| 3/4"
|
| End Connection | Press
| Press
| Press
| Press
| Press
| Press
|
| Body Material | Carbon Steel
| Carbon Steel
| Carbon Steel
| Carbon Steel
| Carbon Steel
| Carbon Steel
|
| Max Temp °F | 284.0 °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F |
| Pack Qty | — | 10
| 10
| 10
| 5
| 10
|
| Min Temp °F | 14.0 °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F |
