Specifications
Description

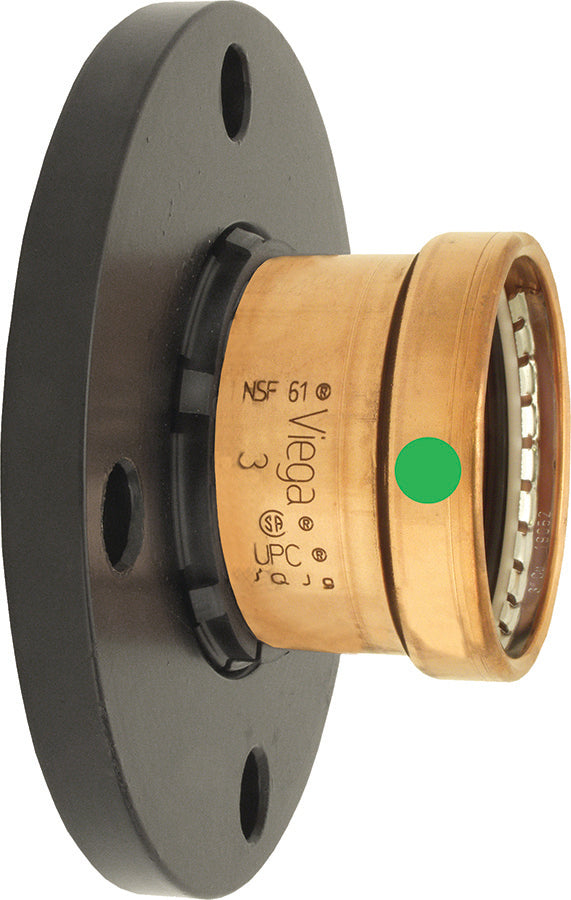

The Viega ProPress adapter flange 2 piece (model 0959.5XL, order code 20853) has a 2-1/2" Press x Flange (4 bolts on 5-1/2" bolt circle) port configuration and is made for use with ASTM B88 and B75 tubing. It features a copper body. Rated to 0°F to 250°F.
Features
- 2 piece
- Smart Connect Technology
- For use with ASTM B88 and B75 tubing
- Copper
- Press connection
- Components EPDM sealing element
Common Questions
- Which pipe does this fitting fit?
- This ProPress fitting is made for use with ASTM B88 and B75 tubing. It is CTS sized: an IPS pipe of the same nominal size has a different outside diameter and will not seal in it.
- Which press tool and jaw do I need?
- Press it with jaws or rings made for the ProPress XL-C profile. XL sizes (2-1/2" to 4") use the XL ring system rather than the standard jaws. A jaw made for a different profile will not make a warrantable joint.
- What temperature and pressure is it rated for?
- It seals with a factory-installed EPDM sealing element, rated 0°F to 250°F (Viega seals and gaskets data). Viega's application chart rates this system to 300 psi.
- Can it be used on drinking water?
- Yes. Viega's application chart lists ProPress with the EPDM sealing element for potable water.
- How do I find a joint that was not pressed?
- Smart Connect technology: an unpressed connection leaks during a low-pressure test, so a missed press is found before the system goes into service.
Specifications
- Size (Run): 2-1/2"
- Connection: Press
- Body Material: Copper
- Application: Domestic Water
- Country of Origin: Germany
- MPN: 20853
- Temperature: 0°F to 250°F
- Fitting Type: Flange
- Port Configuration: 2-1/2" Press x Flange (4 bolts on 5-1/2" bolt circle)
- End Connections: Press x Flange
- Size Basis (CTS / IPS): CTS
- Sealing Element: EPDM
- Press Profile: ProPress XL-C
- For Use On: Copper
- Max Operating Pressure (psi): 300
Product Information
| SKU | Country of Origin |
|---|---|
| 20853 | Germany |
Dimensions
| Size Nominal | 2-1/2" | End Connection | Press |
Details
| Series | ProPress | Body Material | Copper |
| Application | Domestic Water | Max Temp °F | 250.0 °F |
| Min Temp °F | 0.0 °F | Operating pressure max psi | 300.0 PSI |
| Work material | Copper | Configuration | 2-1/2" Press x Flange (4 bolts on 5-1/2" bolt circle) |
| End combination | Press x Flange | Fitting type | Flange |
Compare with similar products
| Series | ProPress
| ProPress
| ProPress
| ProPress
| ProPress
| ProPress
|
| Country Of Origin | Germany
| Germany
| Germany
| Germany
| Germany
| United States
|
| Size Nominal | 2-1/2"
| 1/2"
| 3/4"
| 3/4"
| 1/2"
| 3/4"
|
| Lead Free | — | Yes | Yes | Yes | Yes | — |
| End Connection | Press
| Press
| Press
| Press
| Press
| Press
|
| Body Material | Copper
| Silicium bronze
| Silicium bronze
| Silicium bronze
| Silicium bronze
| Copper
|
| Application | Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
| Domestic Water
|
| Max Temp °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F | 250.0 °F |
| Pack Qty | — | 10
| 10
| 10
| 5
| 10
|
| Min Temp °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F | 0.0 °F |
