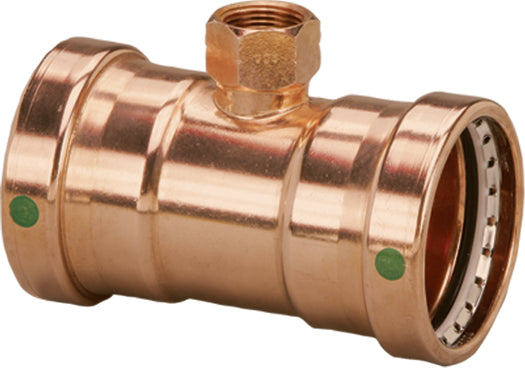

The Viega ProPress tee (model 0917.2XL, order code 20893) has a 3" Press x 3" Press x 3/4" FNPT port configuration and is made for use with ASTM B88 and B75 tubing. It features a copper body. Rated to 0°F to 250°F.
Features
- Smart Connect Technology
- For use with ASTM B88 and B75 tubing
- Copper
- Press connection, female pipe thread
- Components EPDM sealing elements
Common Questions
- Which pipe does this fitting fit?
- This ProPress fitting is made for use with ASTM B88 and B75 tubing. It is CTS sized: an IPS pipe of the same nominal size has a different outside diameter and will not seal in it.
- Which press tool and jaw do I need?
- Press it with jaws or rings made for the ProPress XL-C profile. XL sizes (2-1/2" to 4") use the XL ring system rather than the standard jaws. A jaw made for a different profile will not make a warrantable joint.
- What temperature and pressure is it rated for?
- It seals with a factory-installed EPDM sealing element, rated 0°F to 250°F (Viega seals and gaskets data). Viega's application chart rates this system to 300 psi.
- Can it be used on drinking water?
- Yes. Viega's application chart lists ProPress with the EPDM sealing element for potable water.
- How do I find a joint that was not pressed?
- Smart Connect technology: an unpressed connection leaks during a low-pressure test, so a missed press is found before the system goes into service.
Specifications
-
Size (Run): 3"
-
Connection: Press
-
Body Material: Copper
-
Application: Domestic Water
-
Country of Origin: Germany
-
MPN: 20893
-
Temperature: 0°F to 250°F
-
Fitting Type: Tee
-
Port Configuration: 3" Press x 3" Press x 3/4" FNPT
-
End Connections: Press x Press x FNPT
-
Size Basis (CTS / IPS): CTS
-
Sealing Element: EPDM
-
Press Profile: ProPress XL-C
-
For Use On: Copper
-
Max Operating Pressure (psi): 300
