Specifications
Description

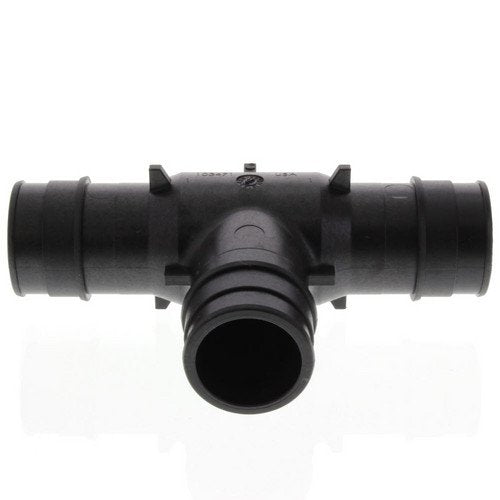

The Uponor Q4751010 is a 1" PEX fitting with PEX connections. ProPEX EP tees make diverting connections for Uponor PEX tubing in supply and return mains. Branch size is listed last in the part description. Note: ProPEX tool is required. ProPEX rings sold separately. It features a thermoplastic body. Rated to up to 200°F.
Common Questions
- Do I need a special tool?
- Yes. These are ProPEX (ASTM F1960) cold-expansion connections: the PEX is expanded with a ProPEX tool and a ProPEX ring, then shrinks back onto the fitting. ProPEX rings are sold separately.
- Is it approved for drinking water?
- Yes. Uponor lists it to NSF/ANSI/CAN 61 with a potable-water (pw) listing.
- What pressure and temperature is it rated for?
- Uponor rates it at 160 psi @ 73°F, 100 psi @ 180°F, 80 psi @ 200°F.
Specifications
- Size: 1"
- Connection: PEX
- Body Material: Thermoplastic
- Application: Domestic Water
- MPN: Q4751010
- Temperature: up to 200°F
- Certifications: ASTM F1960, UL-1821, ASTM F877, CSA-B137.5, NSF-61, NSF-14
- Fitting Type: Tee
- Connection System: PEX Expansion
- End Connections: ProPEX x ProPEX x ProPEX
- Port Configuration: 1" PEX x 1" PEX x 1" PEX
- Max Working Pressure (PSI): 160
- Pressure / Temperature Rating: 160 psi @ 73°F, 100 psi @ 180°F, 80 psi @ 200°F
- For Use With: Uponor AquaPEX (PEX-a)
Product Information
| SKU | UPC | Spec Sheet |
|---|---|---|
| UNP1T | 30673372120976 | Download |
Dimensions
| Size Nominal | 1" | End Connection | PEX |
Details
| Series | ProPEX | Body Material | Thermoplastic |
| Application | Domestic Water | Max Temp °F | 200.0 °F |
| For Use With | Uponor AquaPEX (PEX-a) | Max temp f note | 160 psi @ 73°F, 100 psi @ 180°F, 80 psi @ 200°F |
| Operating pressure max psi | 160.0 PSI | Configuration | 1" PEX x 1" PEX x 1" PEX |
| Connection system | PEX Expansion | End combination | ProPEX x ProPEX x ProPEX |
| Fitting type | Tee | — | — |
Certifications & Standards
| ASTM F1960 | UL-1821 |
| ASTM F877 | CSA-B137.5 |
| NSF-61 | NSF-14 |
