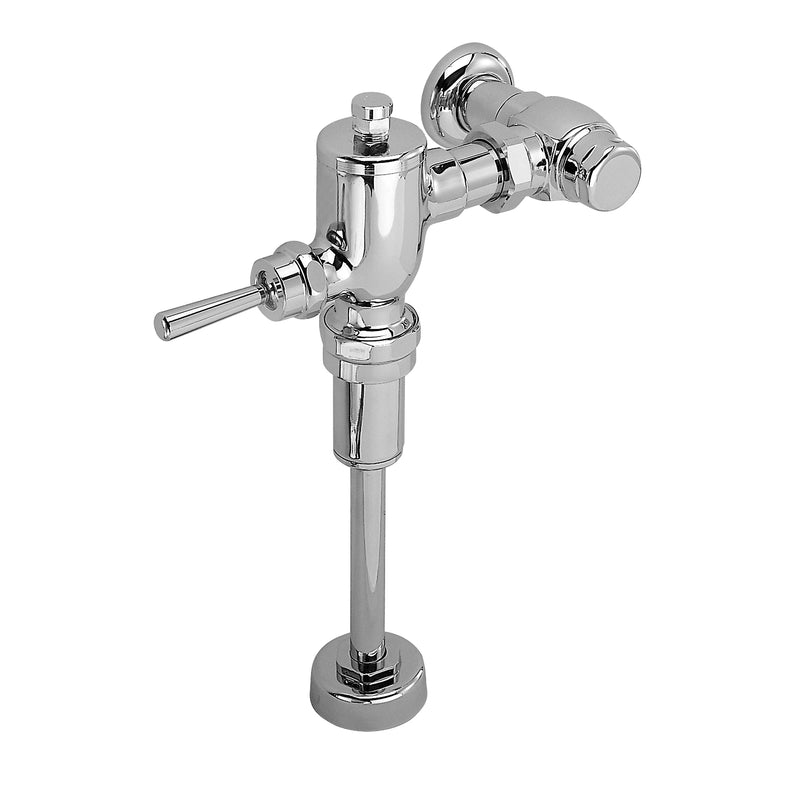

The TOTO TMU1LN#CP is a manual, non-hold-open piston flush valve for 0.5 GPF urinals with a 3/4" top spud inlet, exposed. This is the valve only: the vacuum breaker and angle stop set is sold separately.
Manual flushometer valves for many commercial applications.
Features
- Manual operated, non-hold open, urinal flushometer valve
- Piston valve action with 0.5 gpf
- Left/right rough-in
- Top spud-exposed
- ADA compliant
- Valve only
Common Questions
- Is this the valve only, or does it include the vacuum breaker?
- Valve only. It will not connect to the fixture without a vacuum breaker and angle stop set, sold separately. The complete version with the vacuum breaker set is TMU1LN12#CP.
- Does it need electrical power?
- No. It is a manually operated, non-hold-open piston valve and needs no power.
- Will it fit my urinal?
- It is for a urinal with a 3/4" top spud inlet. Pair it with a urinal bowl rated for 0.5 GPF.
Specifications
-
Supply Inlet: 3/4"
-
Spud Size: 3/4"
-
Application: Domestic Water
-
Operation: Manual
-
MPN: TMU1LN#CP
-
Certifications: ADA
-
Fixture Served: Urinal
-
Gallons per Flush (GPF): 0.5
-
Body Style: Exposed
-
Spud Position: Top Spud
-
Vacuum Breaker: Not Included (Valve Only)
-
Finish: Polished Chrome
